Blue Sea 5025 ST Blade DC Fuse Block 6 Circuits Negative Bus Marine Boat
By Blue Sea
By Blue Sea
Part # | 5025 |
---|---|
Warranty | 5 Year |
Made In | Mexico |
Shipping Wt | 0.7 lbs |
$34.61 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems ST blade fuse block. Part number 5025. Supports 6 circuits with negative bus and cover. Consolidates branch circuits and in-line fuses.
Features
Specifications
Features
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses

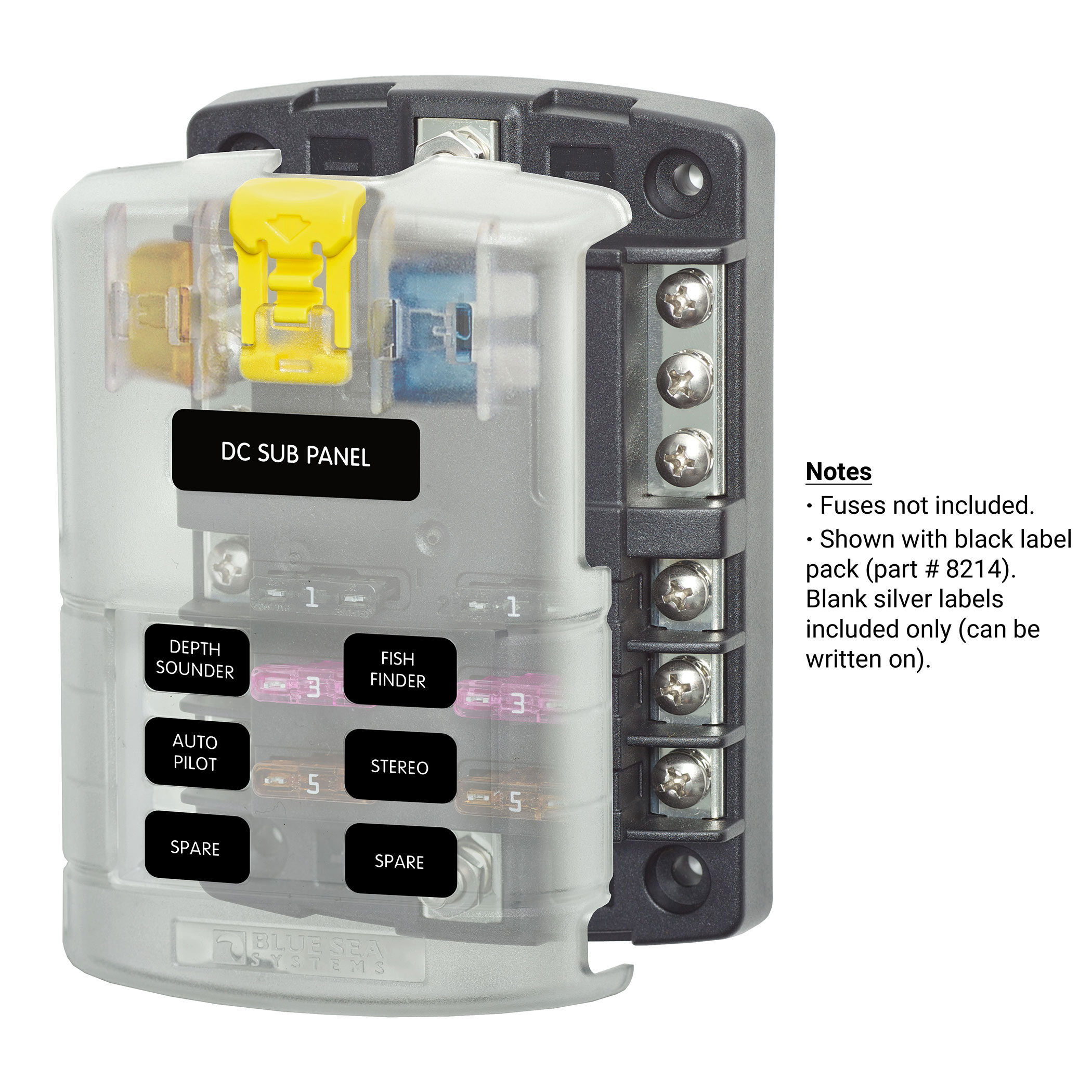

- Accepts Blue Sea Small Format Labels for circuit identification (blank silver labels included for writing on -- optional Blue Sea part # 8214 black labels shown in picture)
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO and ATC fast acting blade fuses
- Fuses sold separately
Specifications
- Circuits: 6
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 Nm)
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Weight: 0.55lb (0.25 kg)
$34.61 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
Brand | Blue Sea |
---|---|
Color | Black |
Made In | Mexico |
Item Weight | 0.54 lbs |
Manufacturer | Blue Sea Systems |
Manufacturer # | 5025 |
Model | Blue Sea 5025 |
Part # | 5025 |
Product Type | 6 Circuit Fuse Block |
Shipping Dims | 6" x 4" x 4" |
Shipping Wt | 0.7 lbs |
UPC | 632085050252 |
Warranty | 5 Year |
