Blue Sea 5015 ST Glass Fuse Block 6 Circuit w/Cover Negative Bus Marine
By Blue Sea
PART #5015
WARRANTYLimited Lifetime
MADE INMexico
SHIPPING WT0.8 lbs
SHIPPING DIMS8" x 4" x 2"
$35.69 USD
Free Shipping to the Contiguous 48 US States
(See all shipping options in cart)
11 in stock
Secured by:
Share this product:
PinterestTwitterFacebook

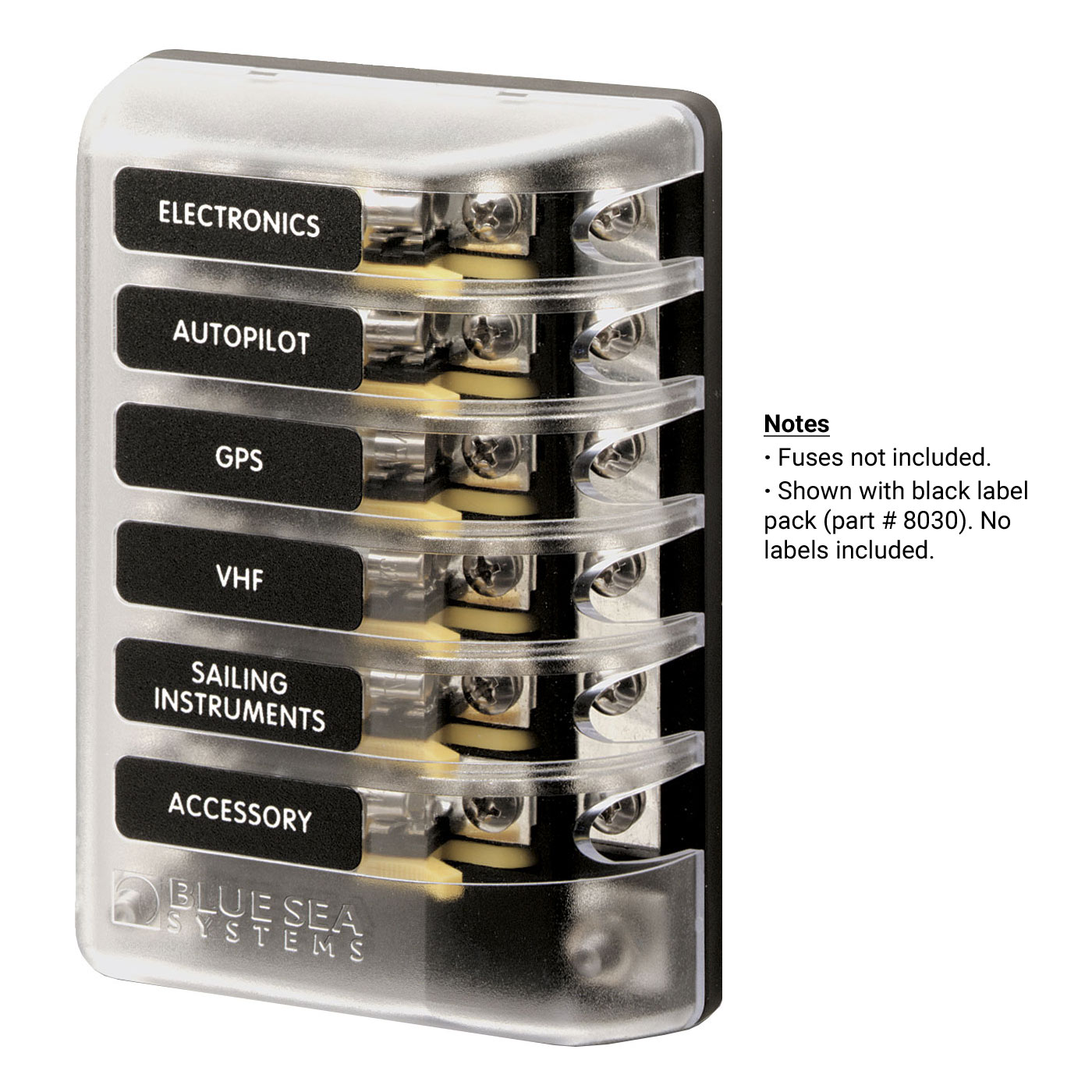

Product Description
New Blue Sea Systems ST Glass 6 circuit fuse block with negative bus and cover. Part number 5015. Innovative design allows for labeling, spare fuse storage, and easy fuse removal. Accepts AGC and MDL fuses from 1/8A to 30A.

Features
  • Clear insulating cover with label recesses for accepting Large Format Labels (not included, use Blue Sea part # 8030)
  • Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
  • Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
  • Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses

Specifications
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw (M4)
  • Negative Bus: Yes
  • Base Material: Reinforced Polycarbonate
  • Cover Material: Polycarbonate
  • Screw Terminal Type: #8-32 with Captive Star Lockwasher
  • Weight: 0.58lb (0.26 kg)
Details
BrandBlue Sea
ColorBlack
Item Weight0.6 lbs
Made InMexico
ManufacturerBlue Sea Systems
Manufacturer #5015
ModelBlue Sea 5015
Part Number5015
Shipping Dims8" x 4" x 2"
Shipping Weight0.8 lbs
TypeST Glass Fuse Block 6 Circuit
UPC632085050153
WarrantyLimited Lifetime
