Blue Sea 7622 ML-ACR Automatic Charging Relay with Manual Control Marine
By Blue Sea
Part #7622
Warranty5 Year
Made InMexico
Shipping Wt3 lbs

$203.69 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Description

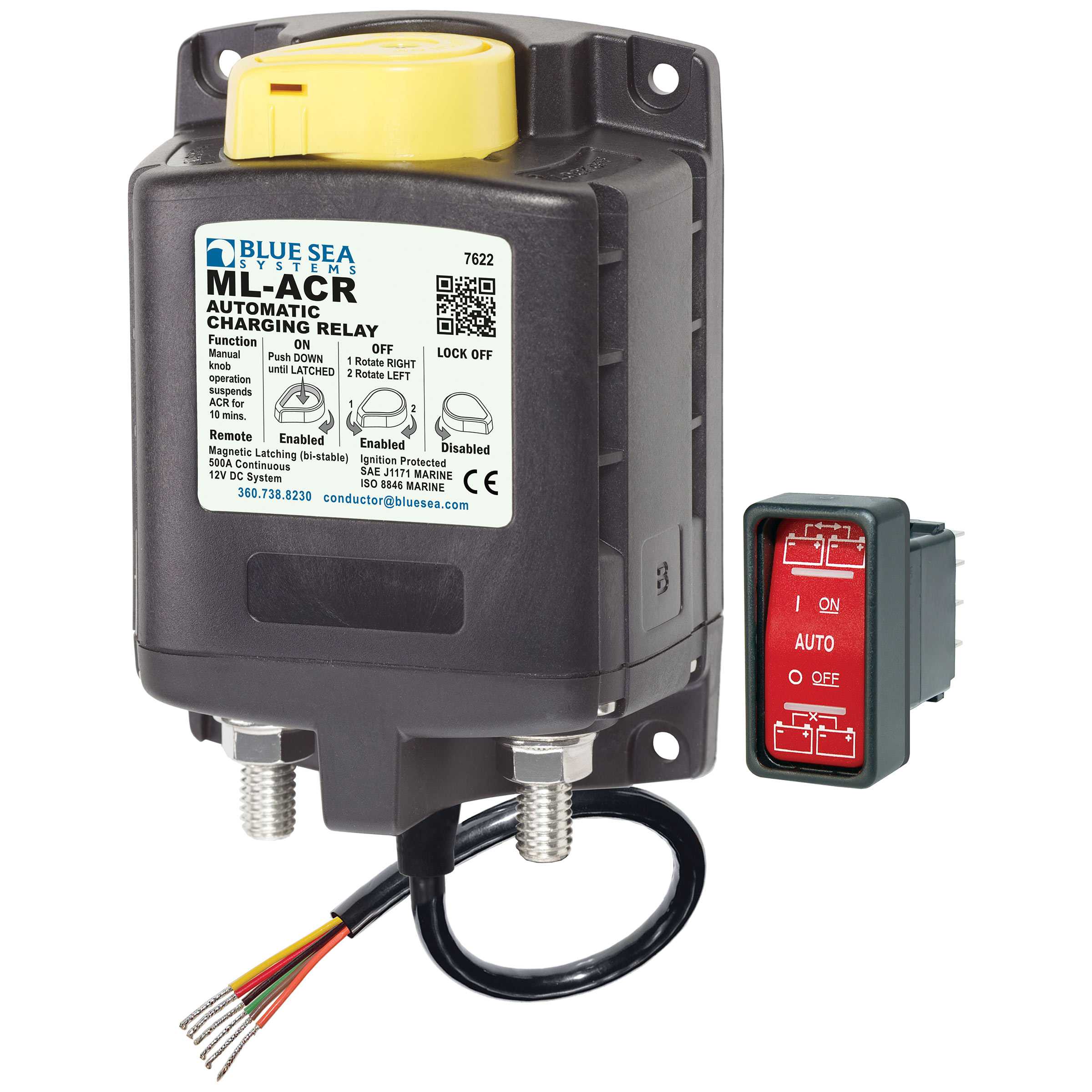

New Blue Sea Systems ML-ACR automatic charging relay with manual override control. Part number 7622. 500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.

  • Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
  • Includes ML-Series Remote Control Contura Switch P/N 2146
  • Automatically manages the charging of two large battery banks
  • Allows paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML): ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Dual sensing: senses charge on both battery banks
  • Start Isolation (SI): can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI): can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification

  • Control Circuit Connection: Tinned Wire
  • Nominal Voltage: 12V DC
  • Manual Control: Yes
  • Engine Isolation: Yes
  • Mounting: #10
  • Start Assist: Yes
  • Start Isolation: Yes
  • Amperage Operating Current: 13mA
  • Amperage Operating Current when changing state: <7.0A
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 10 sec: 2500A
  • Cranking Rating 1 min: 1100A
  • Cable Size to Meet Ratings: 4/0 AWG x 2
  • Live Current Switching: 300A @ 12V DC
  • Switching Cycles: 100000
  • Terminal Ring Diameter Clearance: 1.12in (28.45 mm)
  • Terminal Stud Length: 1.50in (38.1 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Wire Size: 20 AWG

Relay Contact Position
  • Combine 30 sec: 13.5V
  • Combine 90 sec: 13.0V
  • Open 10 sec: 12.35V
  • Open 30 sec: 12.75V
  • Open High: 16.2V
  • Weight: 2.06lb (0.93 kg)
Share this product:

$203.69 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight2.12 lbs
ManufacturerBlue Sea Systems
Manufacturer #7622
ModelBlue Sea 7622
Part #7622
Product TypeML-ACR Auto Charging Relay
Shipping Dims12" x 6" x 4"
Shipping Wt3 lbs
Warranty5 Year
