Blue Sea 5029 ST Blade Fuse Block 12 Circuits with Cover ATO ATC Fuses DC Marine
By Blue Sea
By Blue Sea
Part # | 5029 |
---|---|
Warranty | 5 Year |
Made In | Mexico |
Shipping Wt | 0.8 lbs |
$44.42 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Description
New Blue Sea Systems ST Blade 12-circuit fuse block with cover. Part number 5029. Consolidates branch circuits and in-line fuses. Accepts ATO and ATC fuses from 1A to 30A.
Note: This 5029 fuse block has no negative bus. If you need one with a negative bus, use Blue Sea 5026.
Features
Specifications
Note: This 5029 fuse block has no negative bus. If you need one with a negative bus, use Blue Sea 5026.
Features
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses

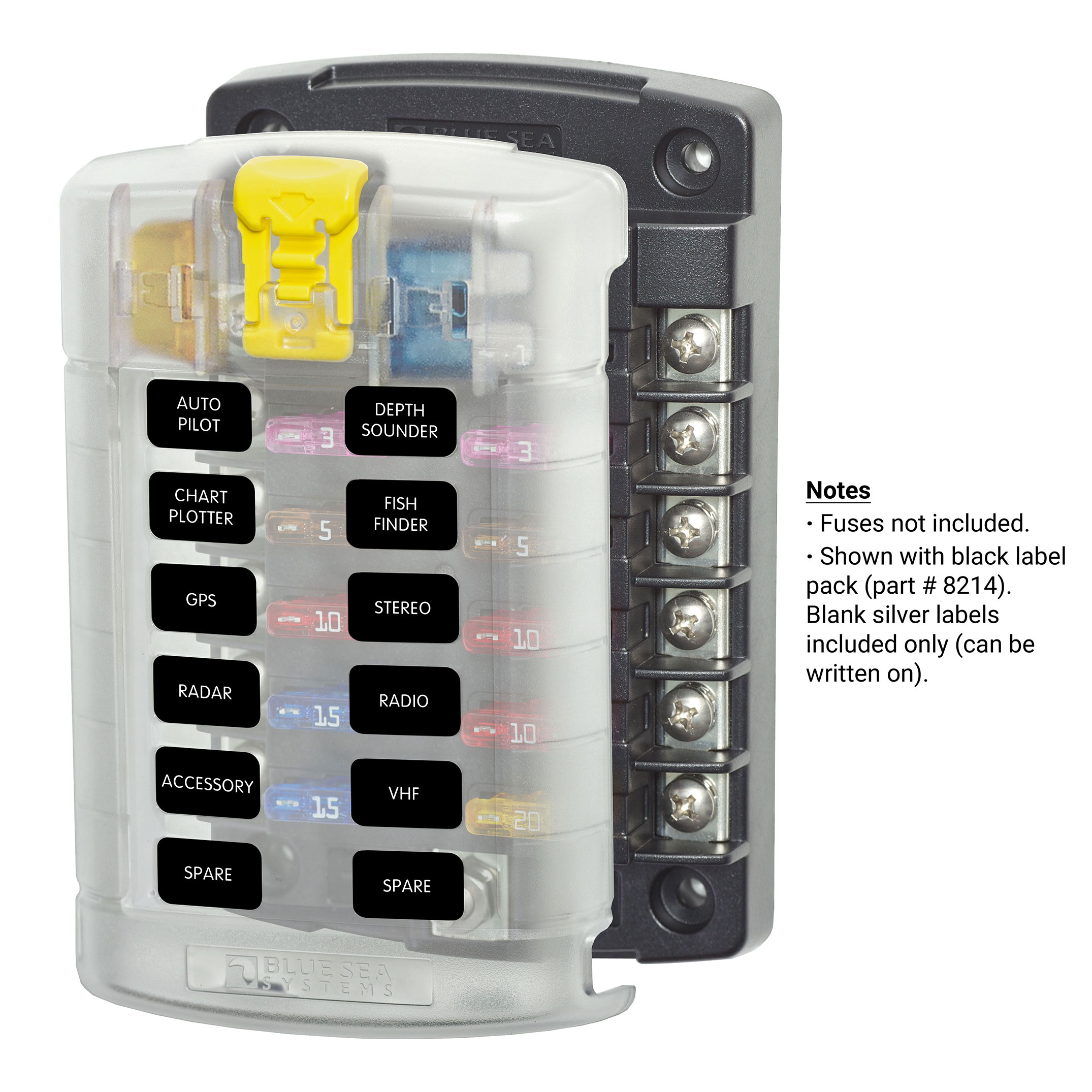

- Accepts Blue Sea Small Format Labels for circuit identification (blank silver labels included for writing on -- optional Blue Sea part # 8214 black labels shown in picture)
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO and ATC fast acting blade fuses
- Fuses sold separately
Specifications
- Circuits: 12
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 Nm)
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Weight: 0.68lb (0.31 kg)
$44.42 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Specifics
Brand | Blue Sea |
---|---|
Color | Black |
Made In | Mexico |
Item Weight | 0.6 lbs |
Manufacturer | Blue Sea Systems |
Manufacturer # | 5029 |
Model | Blue Sea 5029 |
Part # | 5029 |
Product Type | ST Blade Fuse Block |
Shipping Dims | 8" x 4" x 2" |
Shipping Wt | 0.8 lbs |
UPC | 632085050290 |
Warranty | 5 Year |
