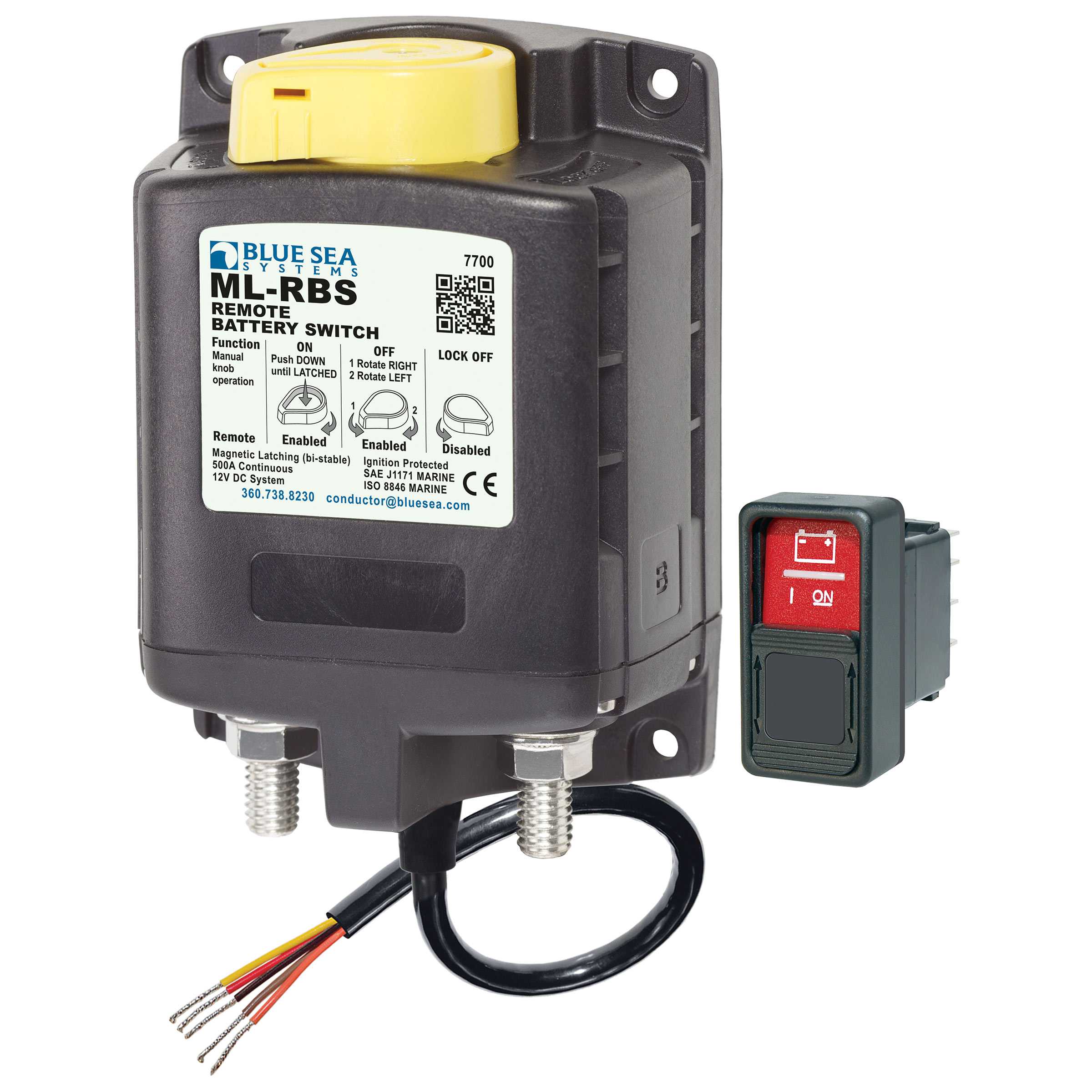

New Blue Sea Systems ML-RBS remote battery switch with manual control for 12V DC systems. Part number 7700. 500amp magnetic latching switch provides high amperage switching under load, manually or from remote locations. Includes Blue Sea 2145 SPDT remote control contura switch (ON)-OFF-(ON).

Features

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications

• Control Circuit Connection: Tinned Wire
• Nominal Voltage: 12V DC
• Manual Control: Yes
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current: 0mA
• Amperage Operating Current when changing state: <7A (40 ms)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Control Circuit Voltage: 9-16V DC
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature: -10 degree C
• Maximum Operating Temperature: 60 degree C
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A @ 12V DC
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
• Terminal Stud Length: 0.875in (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 2.05lb (0.93 kg)
