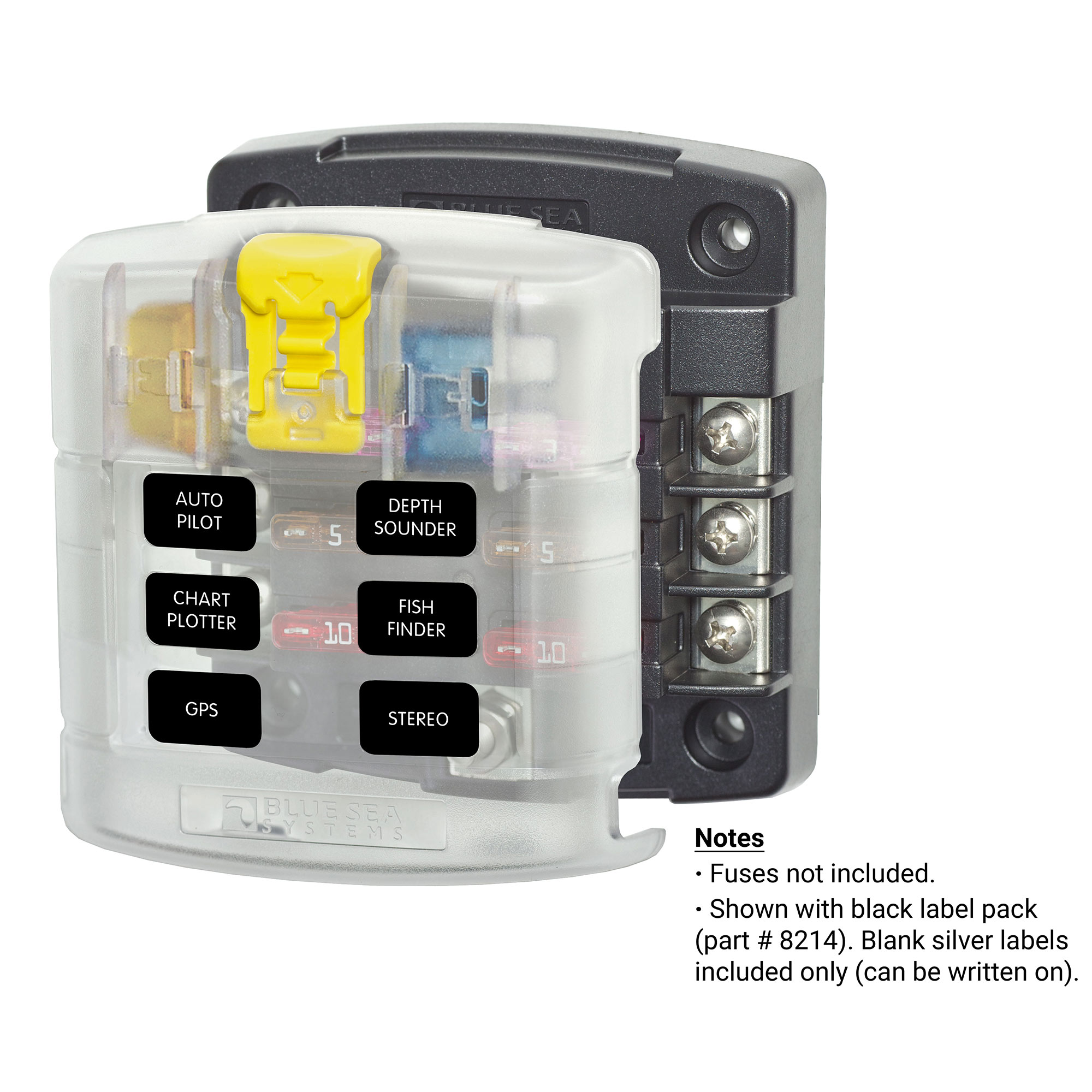

New Blue Sea Systems ST blade fuse block. Part number 5028. Supports 6 circuits with cover. Consolidates branch circuits and in-line fuses.

Features

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses
• Accepts Blue Sea Small Format Labels for circuit identification (blank silver labels included for writing on -- optional Blue Sea part # 8214 black labels shown in picture)
• Fuse blocks with covers include 20 write-on circuit labels
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO and ATC fast acting blade fuses
• Fuses sold separately

Specifications

• Circuits: 6
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Positive Bus: #10-32 Stud
• Recommended Torque: 24 in-lb (2.71 Nm)
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Weight: 0.42lb (0.19 kg)
