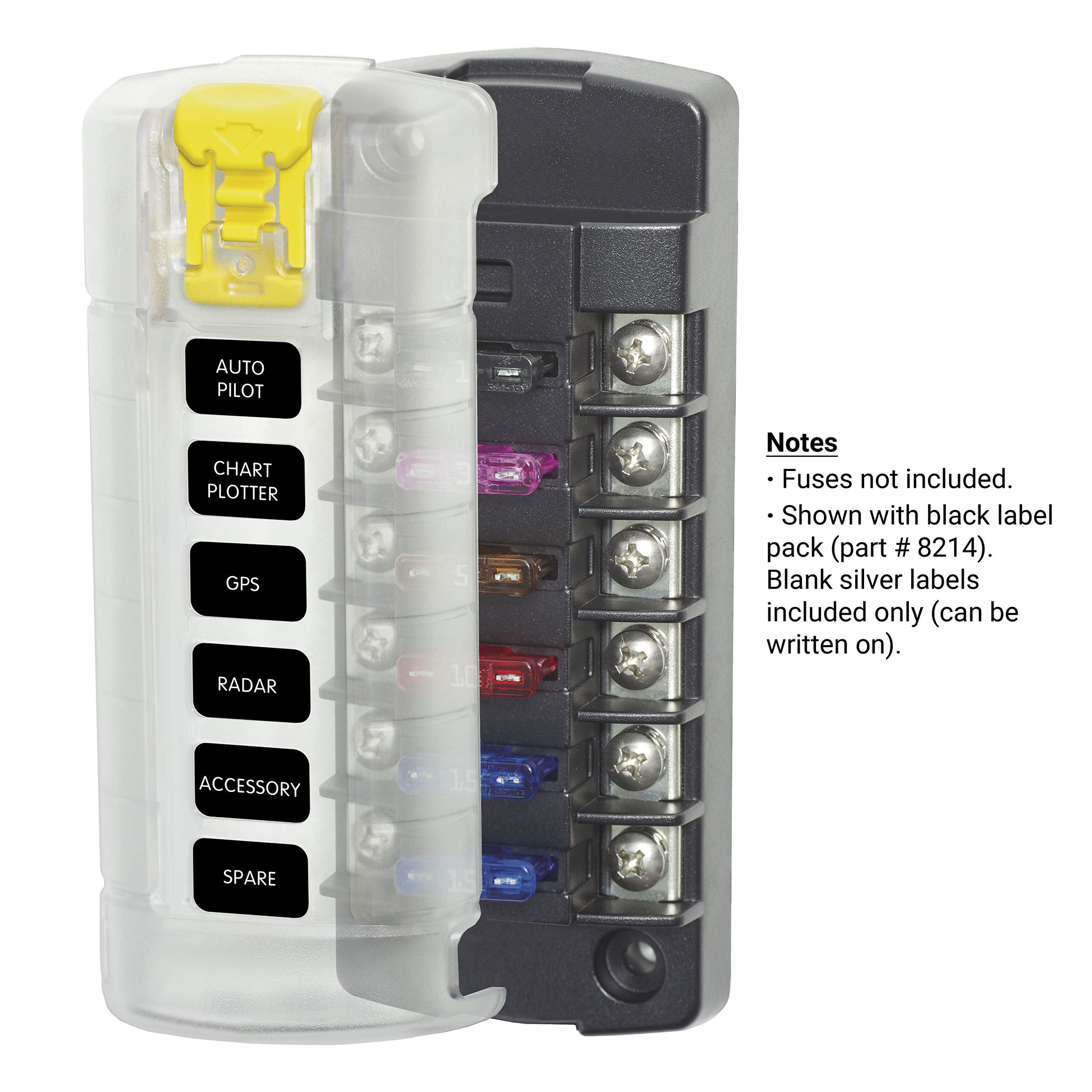

Blue Sea 5035 ST Blade Fuse Block 6 Independent Circuit w/Cover Marine
By Blue Sea
Part #5035
Warranty5 Year
Made InMexico
Shipping Wt0.7 lbs

$37.85 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems ST Blade fuse block with 6 independent circuits and cover. Accepts ATO or ATC fuses from 1A to 30A. Part number 5035.

Features
  • Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
  • Clear insulating cover with label recesses
  • Accepts Blue Sea Small Format Labels for circuit identification (blank silver labels included for writing on -- optional Blue Sea part # 8214 black labels shown in picture)
  • Spare fuse holder in cover
  • Accepts ring or snap fork type terminals
  • Includes two terminal block jumpers

Specifications
  • Circuits: 6
  • Maximum Amperage: 30A per circuit, 40A per jumped circuit group
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw (M4)
  • Screw Terminal Type: #8-32 with Captive Star Lockwasher
  • Weight: 0.35lb (0.16 kg)
Share this product:
PinterestTwitterFacebook

$37.85 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InMexico
Item Weight0.5 lbs
ManufacturerBlue Sea Systems
Manufacturer #5035
ModelBlue Sea 5035
Part #5035
Product TypeST Blade Fuse Block 6 Circuit
Shipping Dims8" x 4" x 2"
Shipping Wt0.7 lbs
UPC632085050351
Warranty5 Year
