Blue Sea 7520 LED Remote for P12 Battery Charger Marine Boat Black
By Blue Sea
Part #7520
Warranty5 Year
Made InUnited States
Shipping Wt2 lbs

$106.29 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Description

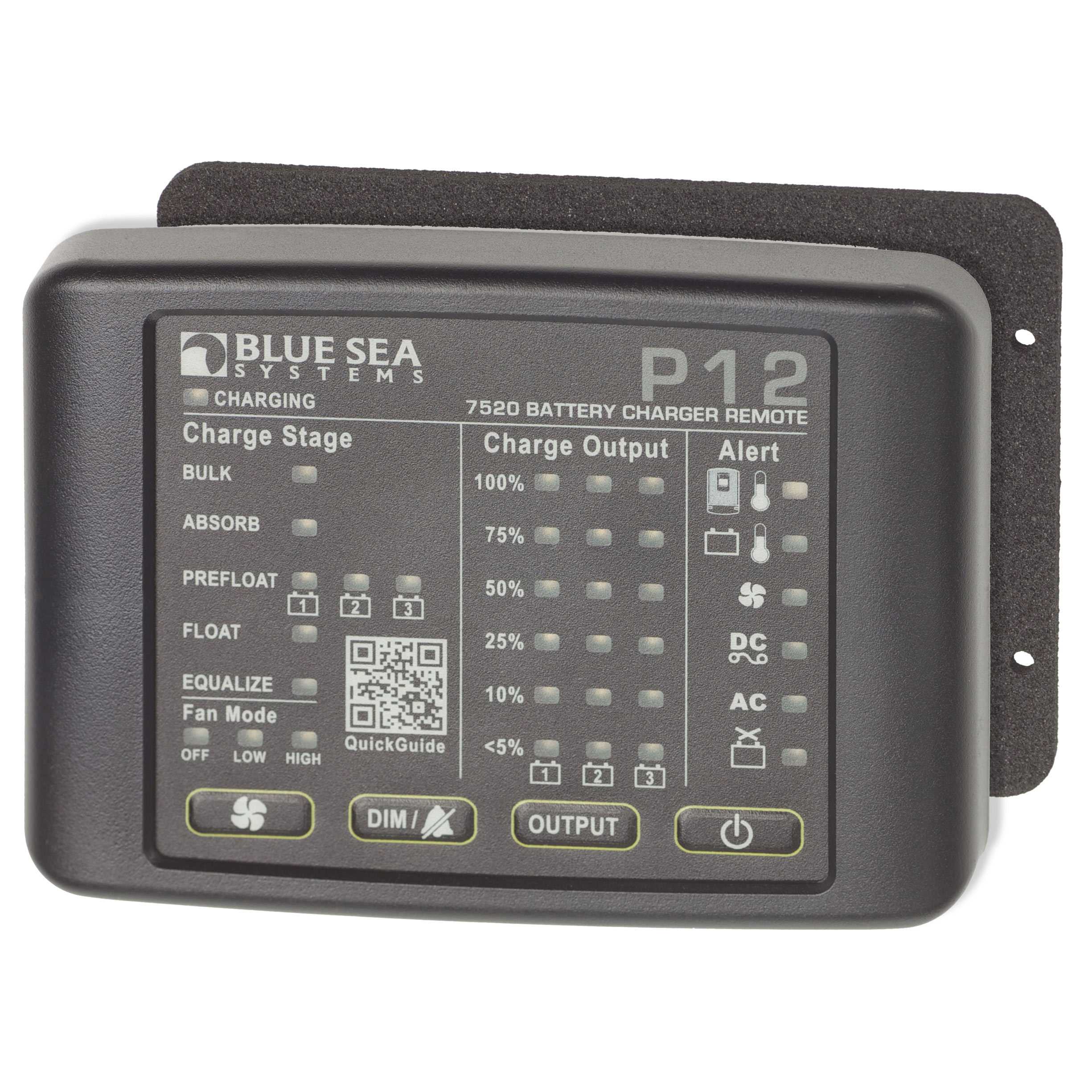

New Blue Sea Systems P12 battery charger LED remote. Part number 7520.

LED Indicators
  • Charging: Quick check confirms charging
  • Charge Stage: Displays charging stage
  • Equalize: Indicates Equalization mode
  • Fan Mode: Indicates internal fan mode
  • Charge Output: Indicates the output current of each battery
  • Alert: Provides alert status for quick diagnosis

Four Control Buttons
  • Fan: User adjustable settings (Off, Low, or High)
  • Dim/Alarm: LED brightness and alarm silence
  • Output: User adjustable to lower AC current draw
  • Standby: Puts charger in standby mode

Specifications
  • Minimum Operating Temperature: -20 degrees C
  • Maximum Operating Temperature: 60 degrees C
  • Minimum Storage Temperature: -30 degrees C
  • Maximum Storage Temperature: 70 degrees C
  • Communications Cable: Cat5e
  • Communications Protocol: Proprietary
  • Maximum Cable Length: 150ft (45.72 m)
  • Operating Current: <300mA sourced from charger
  • Height: 3.01in (76.45 mm)
  • Width: 4.15in (105.41 mm)
  • Depth: 0.95in (24.13 mm)
  • Weight: 0.85lb (0.39 kg)
Share this product:
PinterestTwitterFacebook

$106.29 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InUnited States
Item Weight1 lb
ManufacturerBlue Sea Systems
Manufacturer #7520
ModelBlue Sea 7520
Part #7520
Product TypeP12 Battery Charger LED Remote
Shipping Dims8" x 8" x 3"
Shipping Wt2 lbs
UPC632085075200
Warranty5 Year
