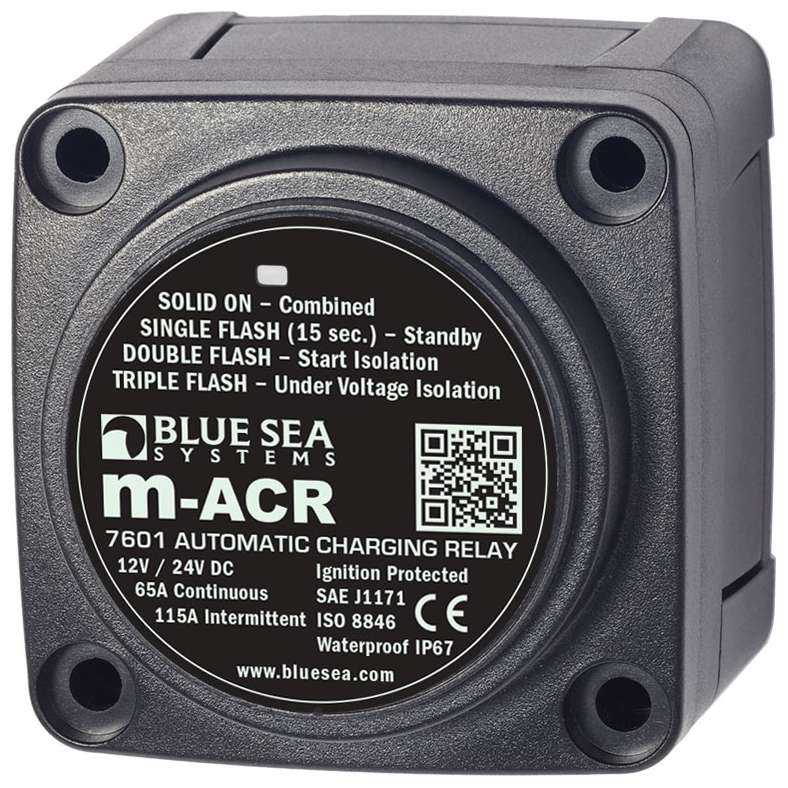

Blue Sea 7601 m-Series Automatic Charging Relay 12V 24V DC 65A
By Blue Sea
Part #7601
WarrantyLimited Lifetime
Made InMexico
Shipping Wt0.8 lbs

$59.25 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

New Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A. Part number 7601.

Features
  • Senses charging on two battery banks
  • Pull off and snap on insulating cover
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 7/16" (11 mm) stud length to accept multiple cable terminals
  • Waterproof - rated IP67 for temporary immersion

Specifications
  • Nominal Voltage: 12V DC, 24V DC
  • Start Isolation: Yes
  • Amperage Operating Current: 90mA (Combine), 15mA (Open)
  • Terminal Stud Torque: 60 in-lb (6.78 Nm)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 min)
  • Cable Size to Meet Ratings: 6 AWG
  • Maximum Cable Size: 1/0 AWG
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Relay Contact Position
  • Combine 30 sec: 13.6V DC
  • Open 10 sec: 12.35V DC
  • Open 30 sec: 12.75V DC
  • Open High: 16.0V
  • Under Voltage Lockout: 9.5V
  • Weight: 0.95lb (0.43 kg)
Share this product:
PinterestTwitterFacebook

$59.25 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.6 lbs
ManufacturerBlue Sea Systems
Manufacturer #7601
ModelBlue Sea 7601
Part #7601
Product TypeCharging Relay
Shipping Dims9" x 7" x 3"
Shipping Wt0.8 lbs
UPC632085076016
WarrantyLimited Lifetime
