Blue Sea 8262 Power Distribution Panel Waterproof 12V 24V DC 4 Pos Marine
By Blue Sea
Part #8262
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$110.36 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock
Pay in 4 interest-free payments with

Product Description

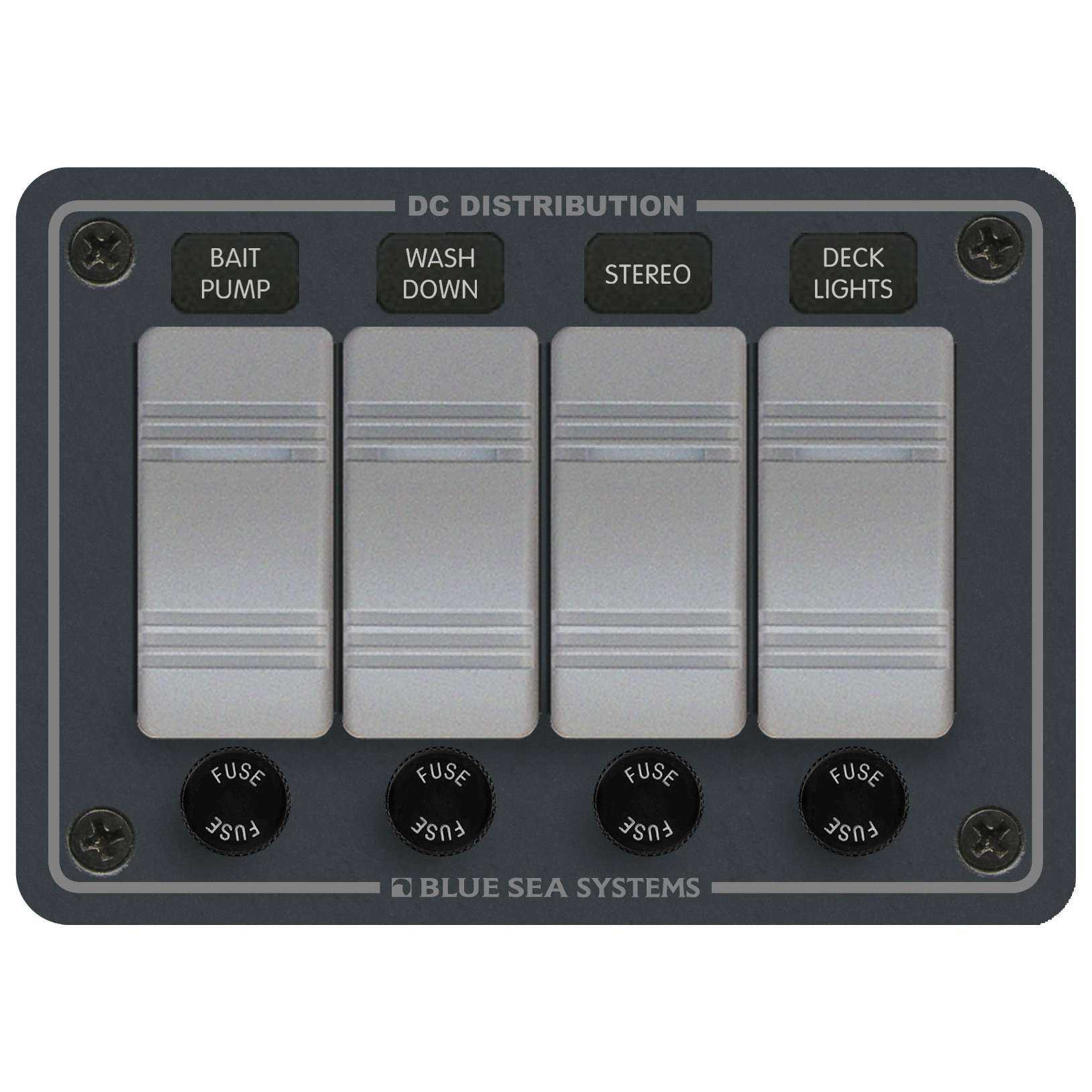

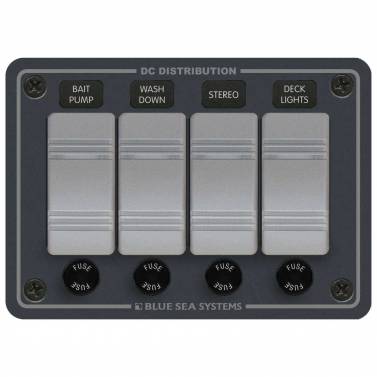

New Blue Sea Systems waterproof power distribution panel 12/24 volt DC 4-position. Part number 8262. Fully wired and ready for installation with waterproof switches and fuse holders.

Features
  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches

Specifications
  • Positions: 4
  • Nominal Voltage: 12V DC, 24V DC
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12V DC, 15A @ 24V DC
  • Height: 3.75in (95.25 mm)
  • Width: 5.25in (133.35 mm)
  • Depth: 3.00in (76.2 mm)
  • Weight: 0.75lb (0.34 kg)
Share this product:
PinterestTwitterFacebook

$110.36 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorSlate Gray
Made InMexico
Item Weight0.8 lbs
ManufacturerBlue Sea Systems
Manufacturer #8262
ModelBlue Sea 8262
Part #8262
Product TypePower Distribution Panel
Shipping Dims9" x 7" x 5"
Shipping Wt2 lbs
UPC632085082628
Warranty5 Year
