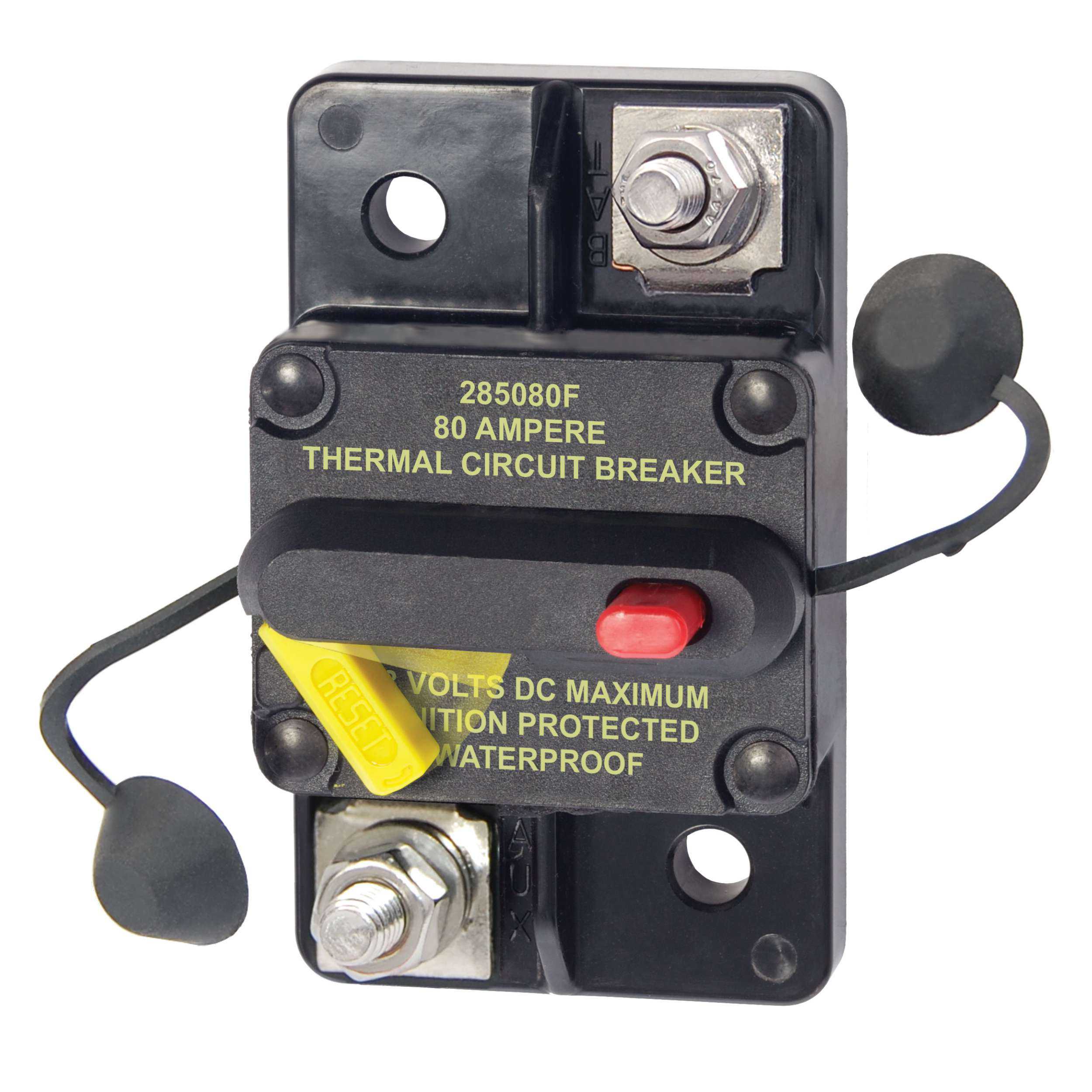

Blue Sea 7186 Circuit Breaker 285-Series 80A Surface Mount Marine
By Blue Sea
Part #7186
Warranty5 Year
Made InMexico
Shipping Wt0.5 lbs

$44.94 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems 285-series circuit breaker 80 amperes DC. Part number 7186. Provides circuit protection and switching.

Features
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

Specifications
  • Amperage: 80A
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
Share this product:
PinterestTwitterFacebook

$44.94 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InMexico
Item Weight0.34 lbs
ManufacturerBlue Sea Systems
Manufacturer #7186
ModelBlue Sea 7186
Part #7186
Product TypeCircuit Breaker 80A 285-Series
Shipping Dims8" x 4" x 4"
Shipping Wt0.5 lbs
UPC632085071868
Warranty5 Year
