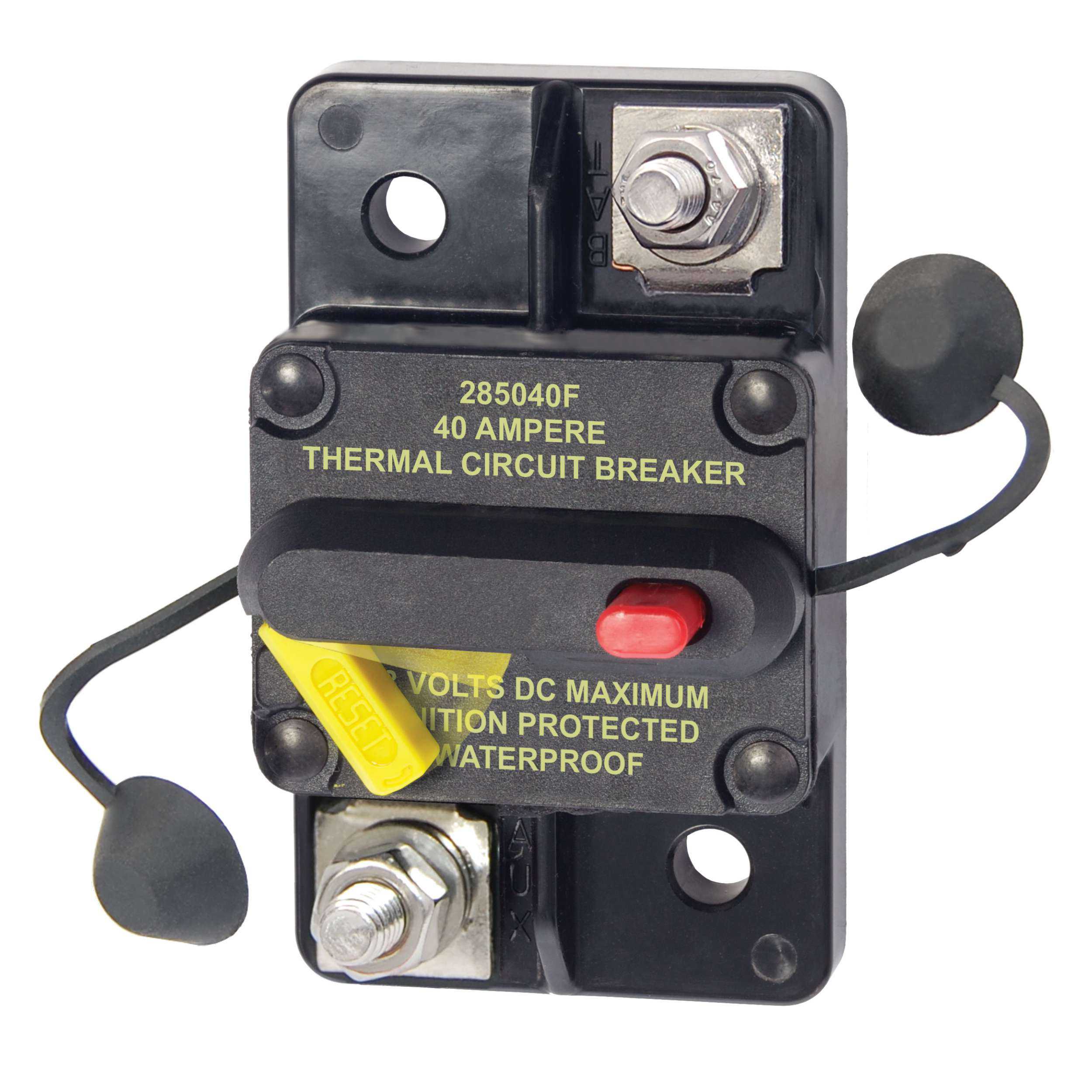

Blue Sea 7182 Circuit Breaker 285-Series 40A DC Switch Surface Mount Marine Boat
By Blue Sea
PART #7182
WARRANTYLimited Lifetime
MADE INMexico
SHIPPING WT0.5 lbs
SHIPPING DIMS8" x 5" x 3"
$38.97 USD
Free Shipping to the Contiguous 48 US States
Out of stock
Share this product:
PinterestTwitterFacebook
Product Description
New Blue Sea Systems 285-series circuit breaker 40 amperes DC. Part number 7182. Provides medium duty circuit protection and switch.

Features
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

Specifications
  • Amperage: 40A
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
Details
BrandBlue Sea
ColorBlack
Item Weight0.3 lbs
Made InMexico
ManufacturerBlue Sea Systems
Manufacturer #7182
ModelBlue Sea 7182
Part Number7182
Shipping Dims8" x 5" x 3"
Shipping Weight0.5 lbs
Type285-Series Circuit Breaker 40A
UPC632085071820
WarrantyLimited Lifetime
