Blue Sea 5191 MRBF Terminal DC Fuse Block 30A-300A Marine Boat


Out of stock

Free Shipping to the Contiguous 48 US States

Product Details

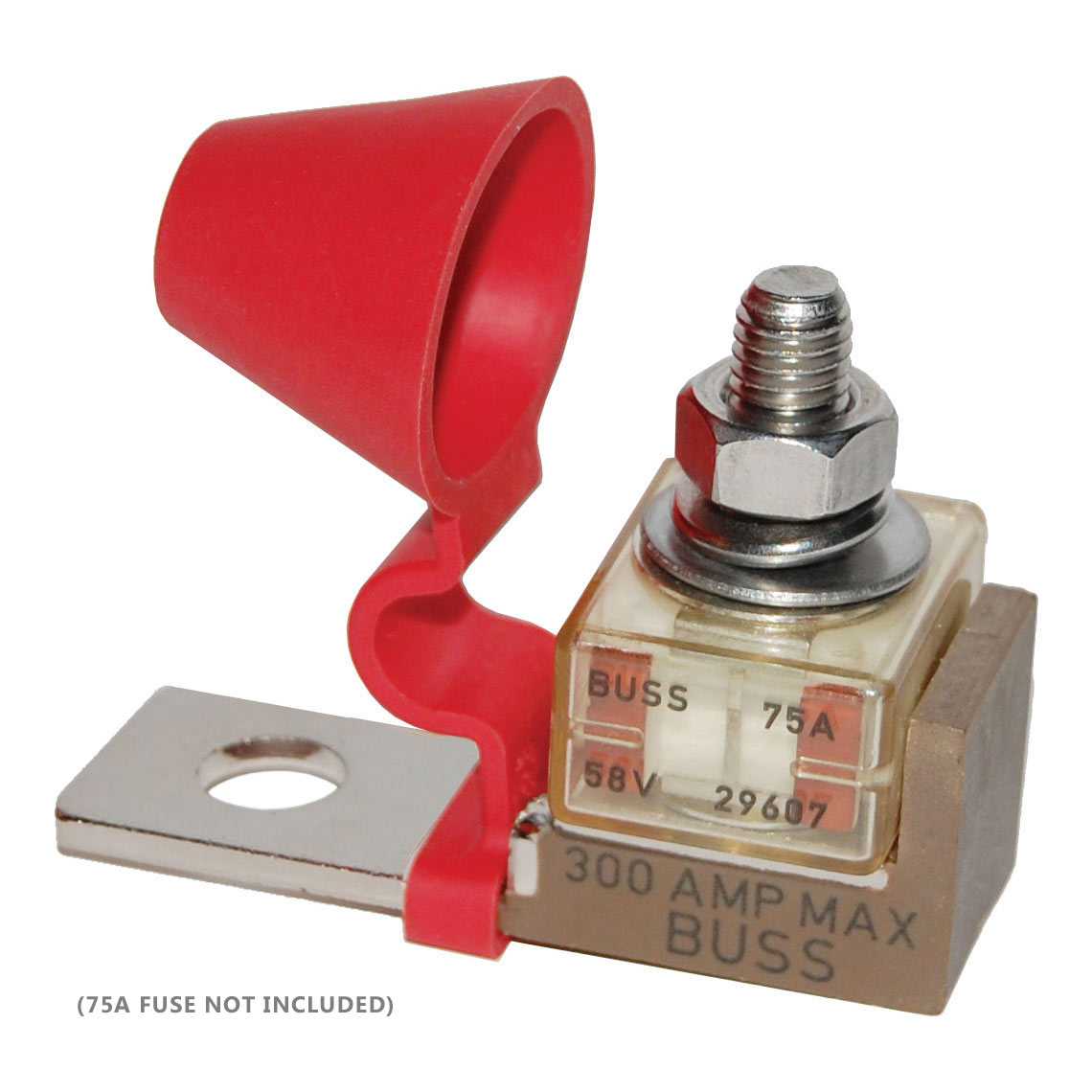

New Blue Sea Systems MRBF terminal fuse block. Part number 5191. Accepts one MRBF fuse from 30 to 300 amps DC.

  • Compact, high-amp fuse, appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5/16″ ring terminals
  • Fuse not included

  • Maximum Amperage: 300A
  • Maximum Voltage: 58V DC
  • Maximum Torque: 75 in-lb (8.47 Nm)
  • Terminal Stud: M8 (5/16″)
  • Weight: 0.16lb (0.07 kg)

Additional information

Product Specifications
WarrantyLimited Lifetime
Manufacturer Part Number5191
Item Weight0.2 lbs
Part Number5191
ManufacturerBlue Sea Systems
Country of ManufactureMexico
BrandBlue Sea
Shipping Weight0.4 lbs
Shipping Dimensions7" x 4" x 3"
ModelBlue Sea 5191
TypeFuse Block
