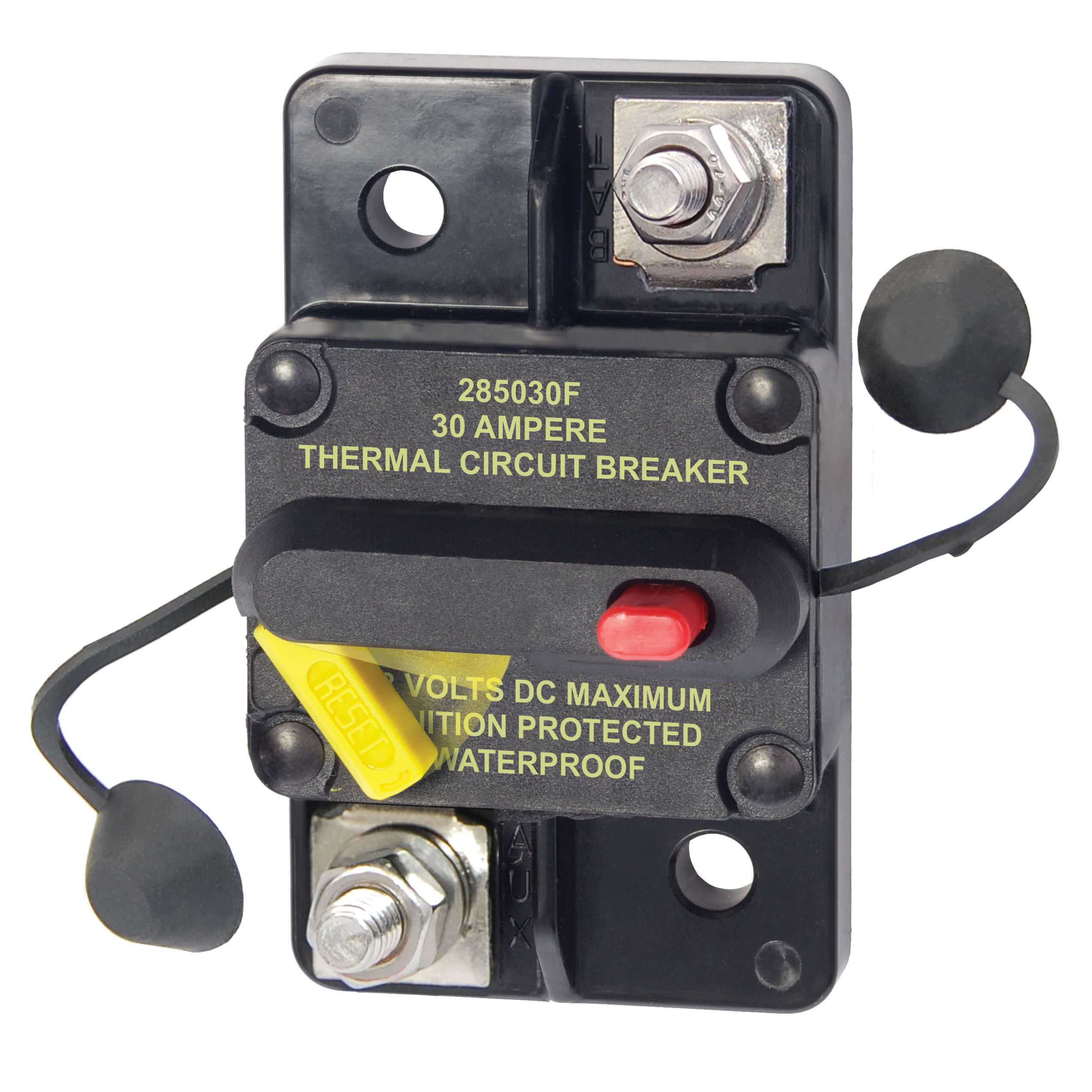

Blue Sea 7181 Circuit Breaker 285-Series 30A Surface Mount Marine
By Blue Sea
Part #7181
WarrantyLimited Lifetime
Made InMexico
Shipping Wt0.5 lbs

$41.92 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Description

New Blue Sea Systems 285-series surface-mount 30A circuit breaker and switch. Part number 7181.

Features
  • Drop-in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected, safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit (do not use as a switch where high inrush currents are expected)
  • "Trip Free" - cannot be held closed after trip

Specifications
  • Amperage: 30A
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degrees C
  • Maximum Operating Temperature: 85 degrees C
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
Share this product:
PinterestTwitterFacebook

$41.92 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Specifics

BrandBlue Sea
ColorBlack
Made InMexico
Item Weight0.3 lbs
ManufacturerBlue Sea Systems
Manufacturer #7181
ModelBlue Sea 7181
Part #7181
Product TypeCircuit Breaker 30A 285-Series
Shipping Dims4" x 3" x 2"
Shipping Wt0.5 lbs
UPC632085071813
WarrantyLimited Lifetime
