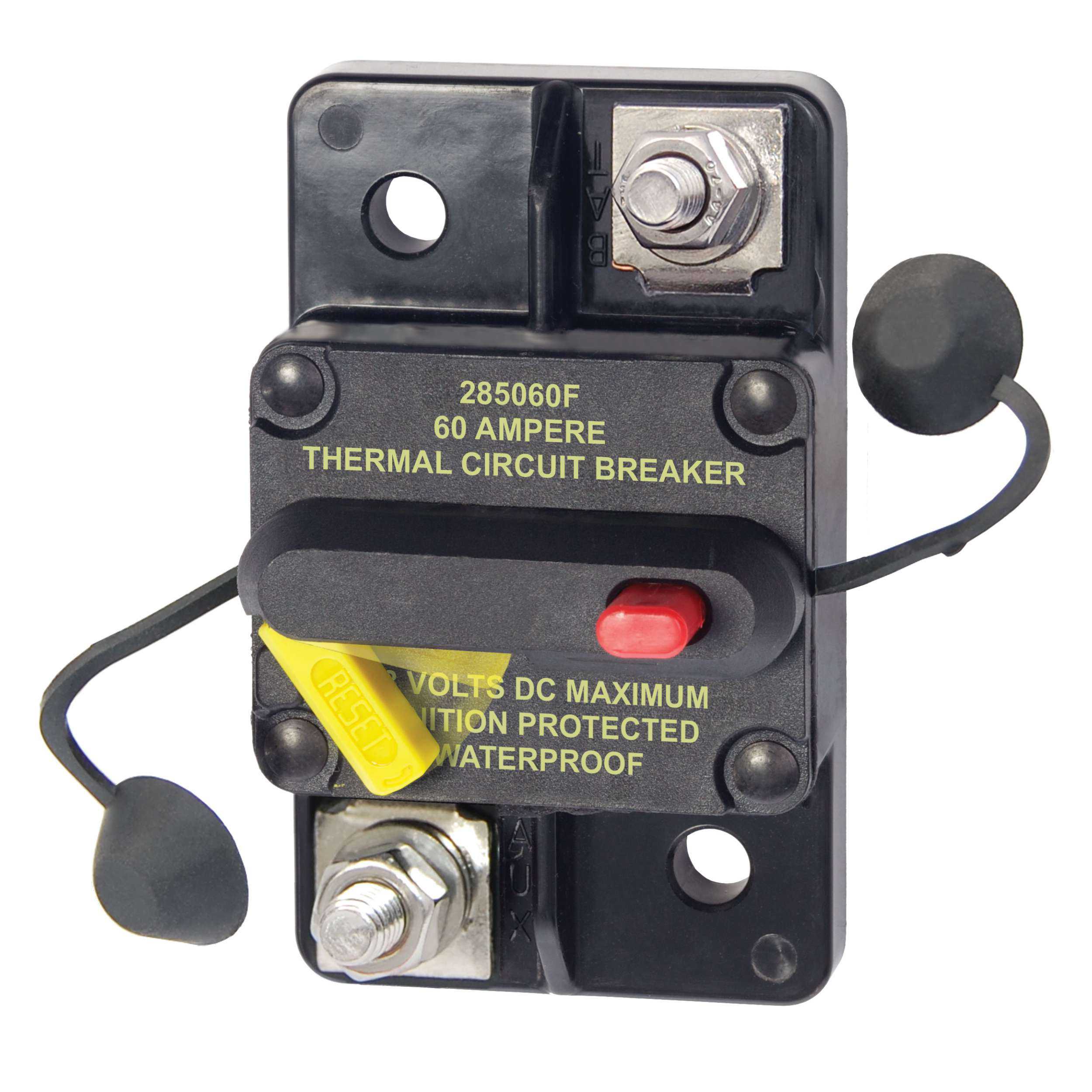

Blue Sea 7184 Circuit Breaker 285-Series 60A Surface Mount Marine
By Blue Sea
Part #7184
WarrantyLimited Lifetime
Made InMexico
Shipping Wt0.7 lbs

$41.26 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Description

New Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 60A. Part number 7184.

Features
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

Specifications
  • Amperage: 60A
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
Share this product:
PinterestTwitterFacebook

$41.26 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock
Secured by:

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.5 lbs
ManufacturerBlue Sea Systems
Manufacturer #7184
ModelBlue Sea 7184
Part #7184
Product TypeCircuit Breaker 60A 285-Series
Shipping Dims8" x 5" x 3"
Shipping Wt0.7 lbs
UPC632085071844
WarrantyLimited Lifetime
