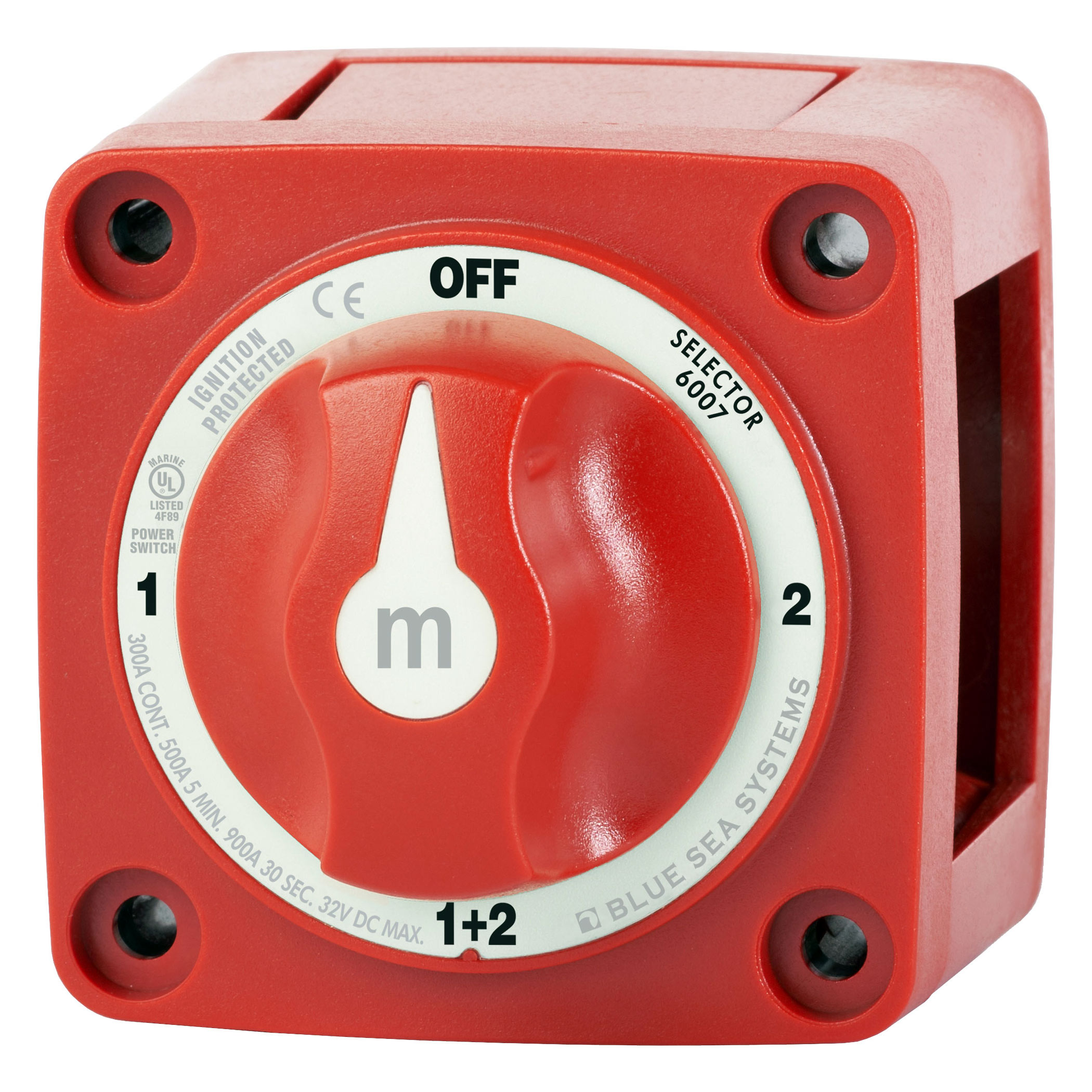

Blue Sea 6007 M-Series Selector Battery Switch 4-Position Marine Red

By Blue Sea

Share this product:
PinterestTwitterFacebook

New Blue Sea Systems m-Series mini selector battery 4-position switch. Part number 6007. Switches isolated battery banks to all loads or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption. Knob can be turned either direction.

Specifications

• Switch Type: Selector 4 Position
• Color: Red
• Switch Positions: 4
• Battery Combine: Yes
• Alternator Field Disconnect: No
• Maximum Voltage: 32V DC
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 10 sec: 1500A
• Cranking Rating 1 min: 775A
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
• Mounting Holes: Accept #10 Screw
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.77lb (0.35 kg)
