Blue Sea 9001e e-Series Battery Switch 4-Position Selector Marine Boat
By Blue Sea
Part #9001e
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$44.34 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
14 in stock
Secured by:

Product Description

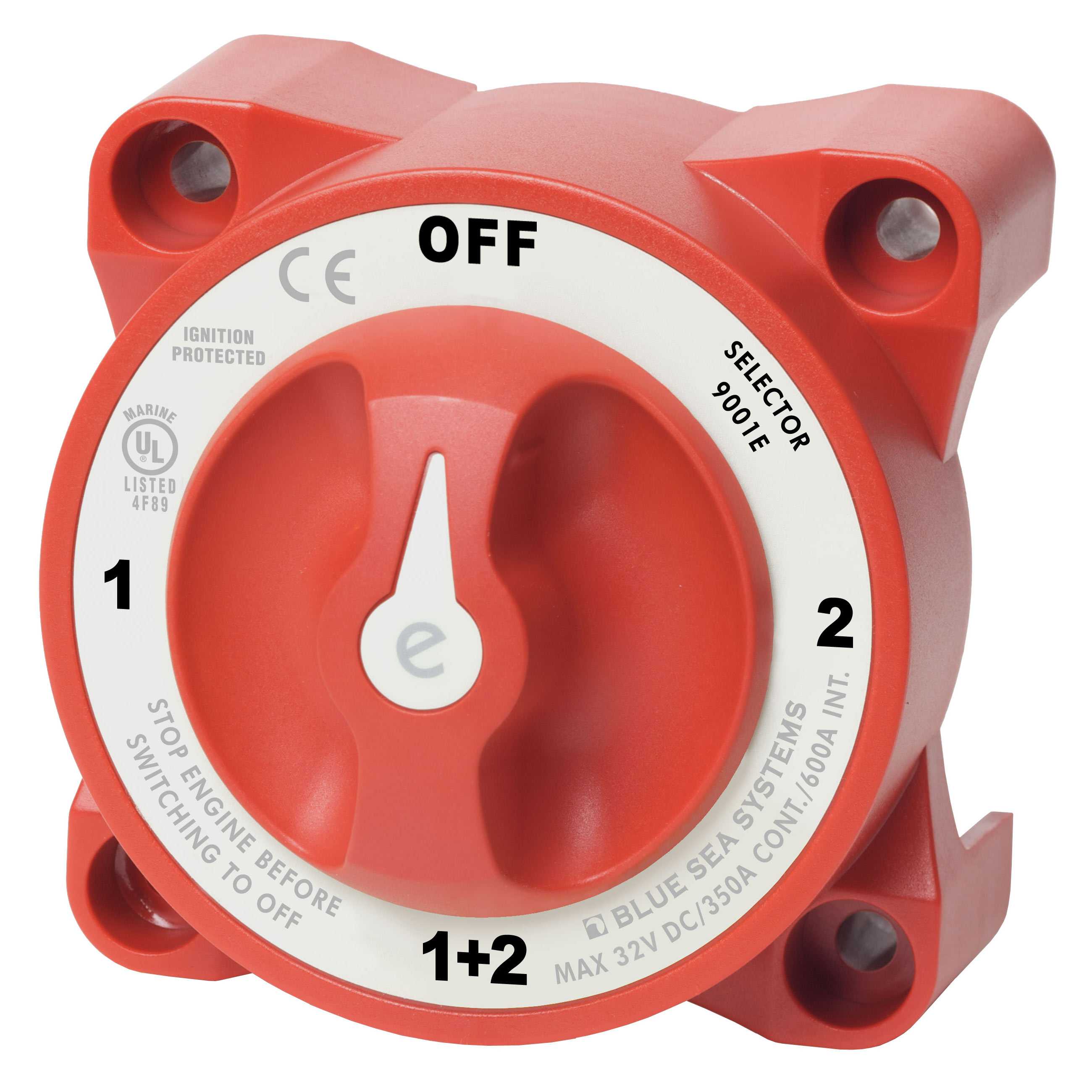

New Blue Sea Systems e-Series 4-position battery switch selector. Part number 9001e. Switches isolated battery banks to all loads or combines battery banks to all loads.

Features
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected, safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Specifications
  • Switch Type: Selector 4 Position
  • Color: Red
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating : 2000A
  • Cranking Rating 1 min : 1000A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
  • Mounting Holes: Accept 1/4" (M6) Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.30lb (0.59 kg)
Share this product:
PinterestTwitterFacebook

$44.34 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
14 in stock
Secured by:

Product Specifics

BrandBlue Sea
ColorRed
Made InMexico
Item Weight1.1 lbs
ManufacturerBlue Sea Systems
Manufacturer #9001e
ModelBlue Sea 9001E
Part #9001e
Product Typee-Series Battery Switch 4-Position
Shipping Dims10" x 8" x 3"
Shipping Wt2 lbs
UPC632085900151
Warranty5 Year
