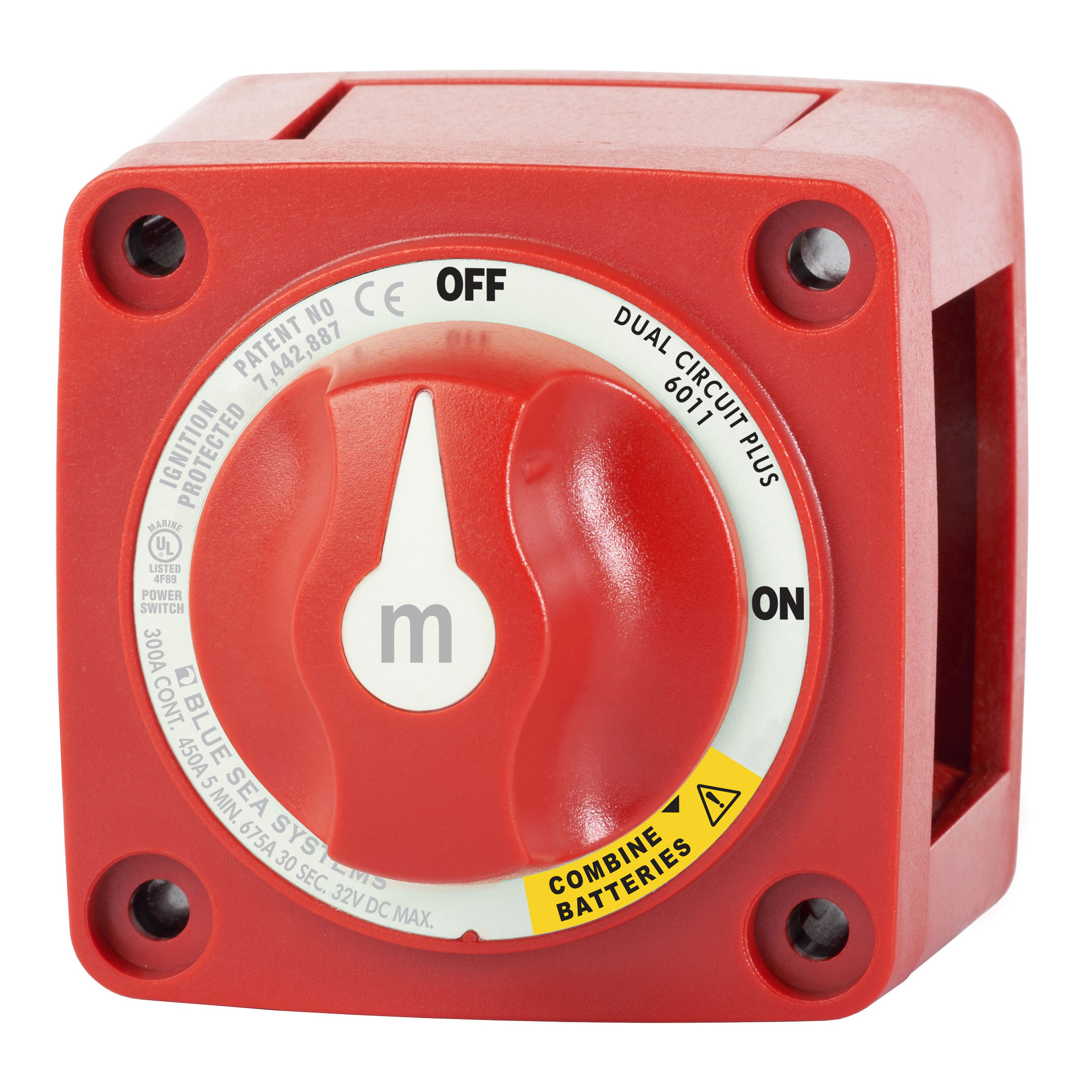

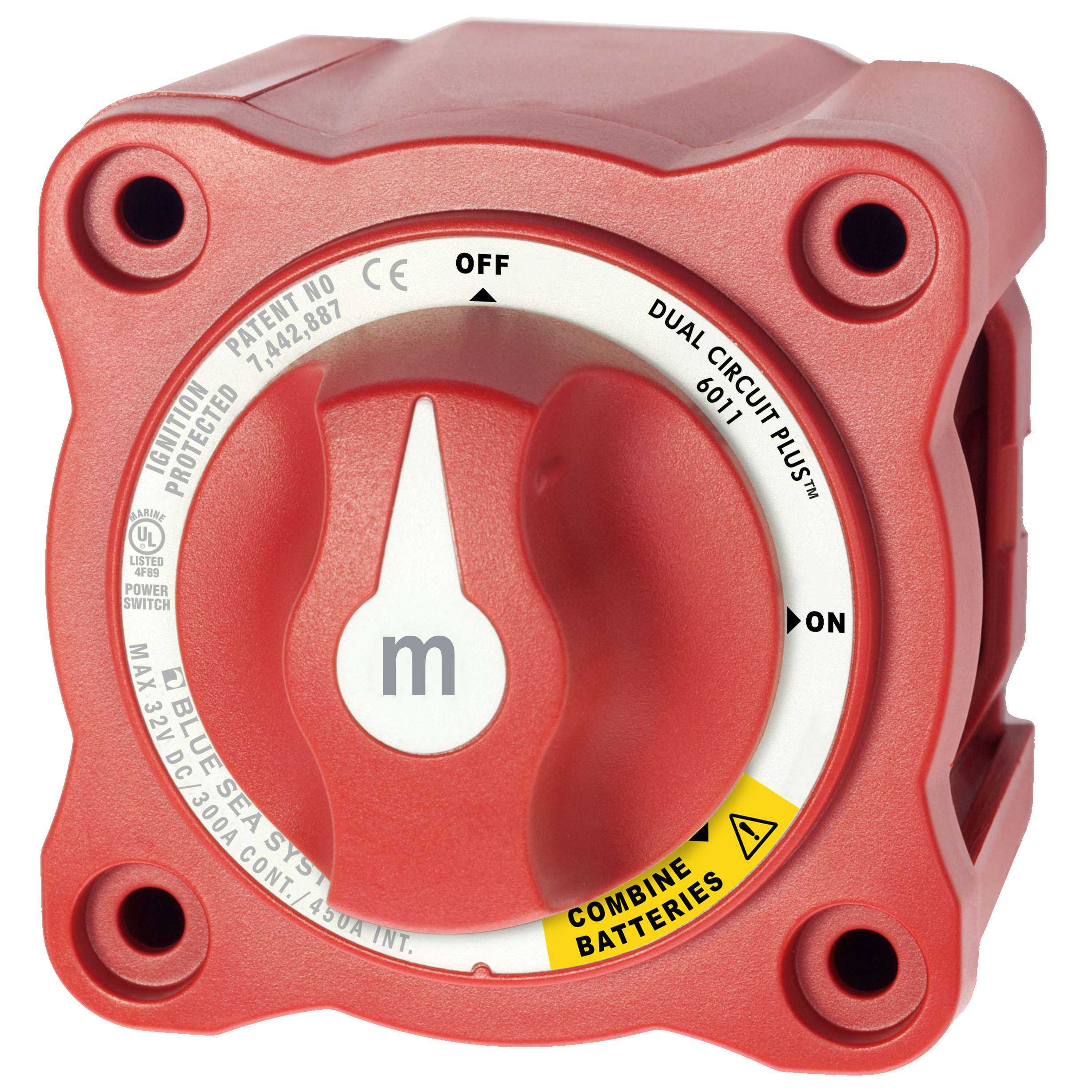

Blue Sea 6011 m-Series Battery Switch Dual Circuit Plus 3 Position DC Marine
By Blue Sea
Part #6011
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$48.35 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems m-series 3-position battery switch (Dual Circuit Plus). Part number 6011.

Features
  • Simultaneously switches two isolated battery banks or combines battery banks to all loads
  • Make before break contact design allows switching between battery banks without power interruption

Specifications
  • Switch Type: Dual Circuit Plus
  • Color: Red
  • Switch Positions: 3
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 450A (5 min)
  • Cranking Rating 10 sec: 1000A
  • Cranking Rating 1 min: 650A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
  • Mounting Holes: Accept #10 Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.80lb (0.36 kg)
Share this product:
PinterestTwitterFacebook

$48.35 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorRed
Made InMexico
Item Weight0.9 lbs
ManufacturerBlue Sea Systems
Manufacturer #6011
ModelBlue Sea 6011
Part #6011
Product Typem-Series 3-Pos Battery Switch
Shipping Dims7" x 4" x 4"
Shipping Wt2 lbs
UPC632085060114
Warranty5 Year
