Blue Sea 9002e e-Series Selector Battery Switch AFD 4-Position Marine Boat
By Blue Sea
Part #9002e
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$52.90 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock
Pay in 4 interest-free payments with

Product Description

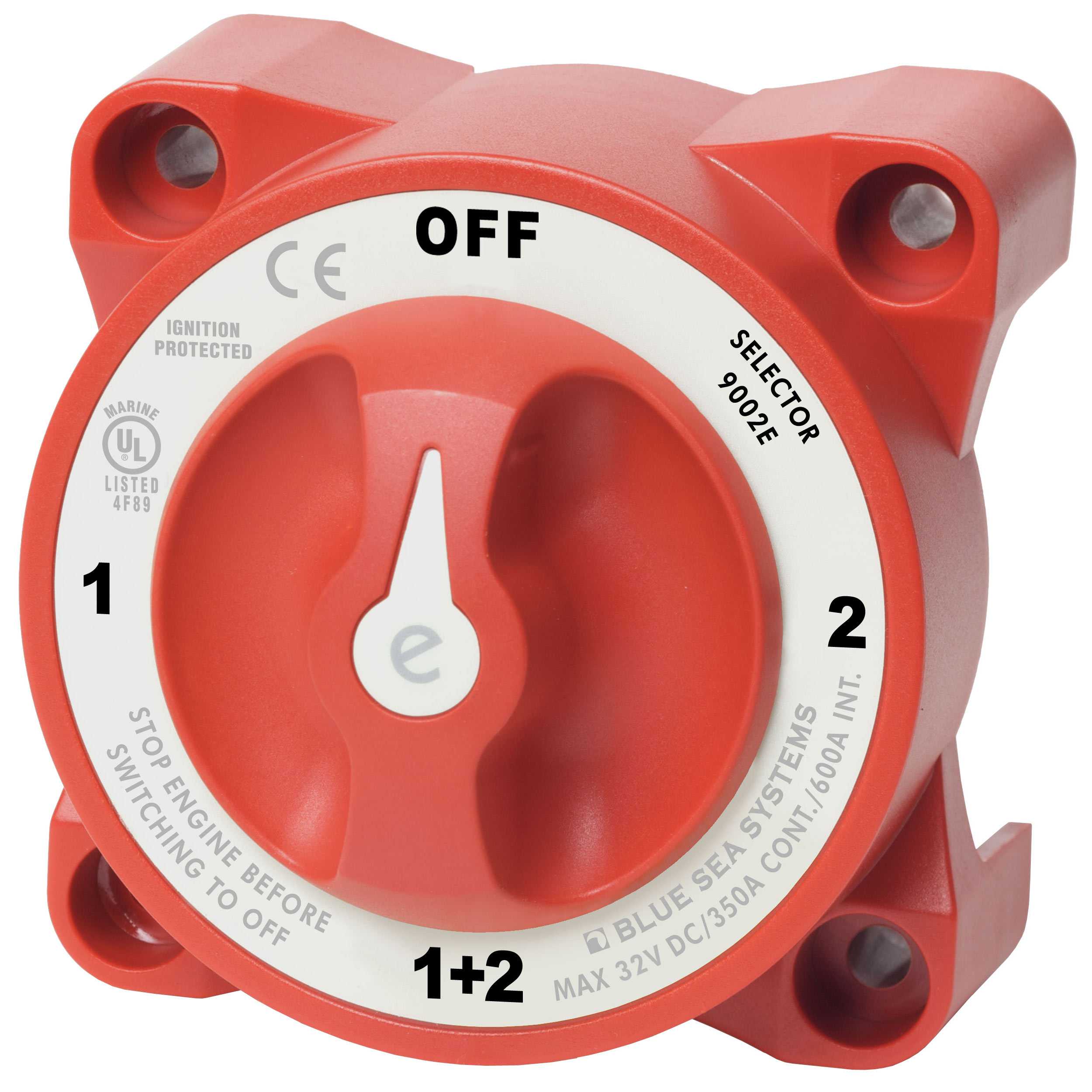

New Blue Sea Systems e-Series 4-position selector battery switch with AFD. Part number 9002e. Switches isolated battery banks to all loads or combines battery banks to all loads.

Features
  • Includes AFD (Alternator Field Disconnect)
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected, safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Specifications
  • Switch Type: Selector 4 Position
  • Color: Red
  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: Yes
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 600A (5 min)
  • Cranking Rating 10 sec: 2000A
  • Cranking Rating 1 min: 1000A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
  • Mounting Holes: Accept 1/4" (M6) Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.30lb (0.59 kg)
