Blue Sea 5032 ST Blade Split Bus Fuse Block 12 Circuits w/ Cover ATO ATC Fuse DC
By Blue Sea
Part #5032
Warranty5 Year
Made InMexico
Shipping Wt1 lbs

$68.87 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Description

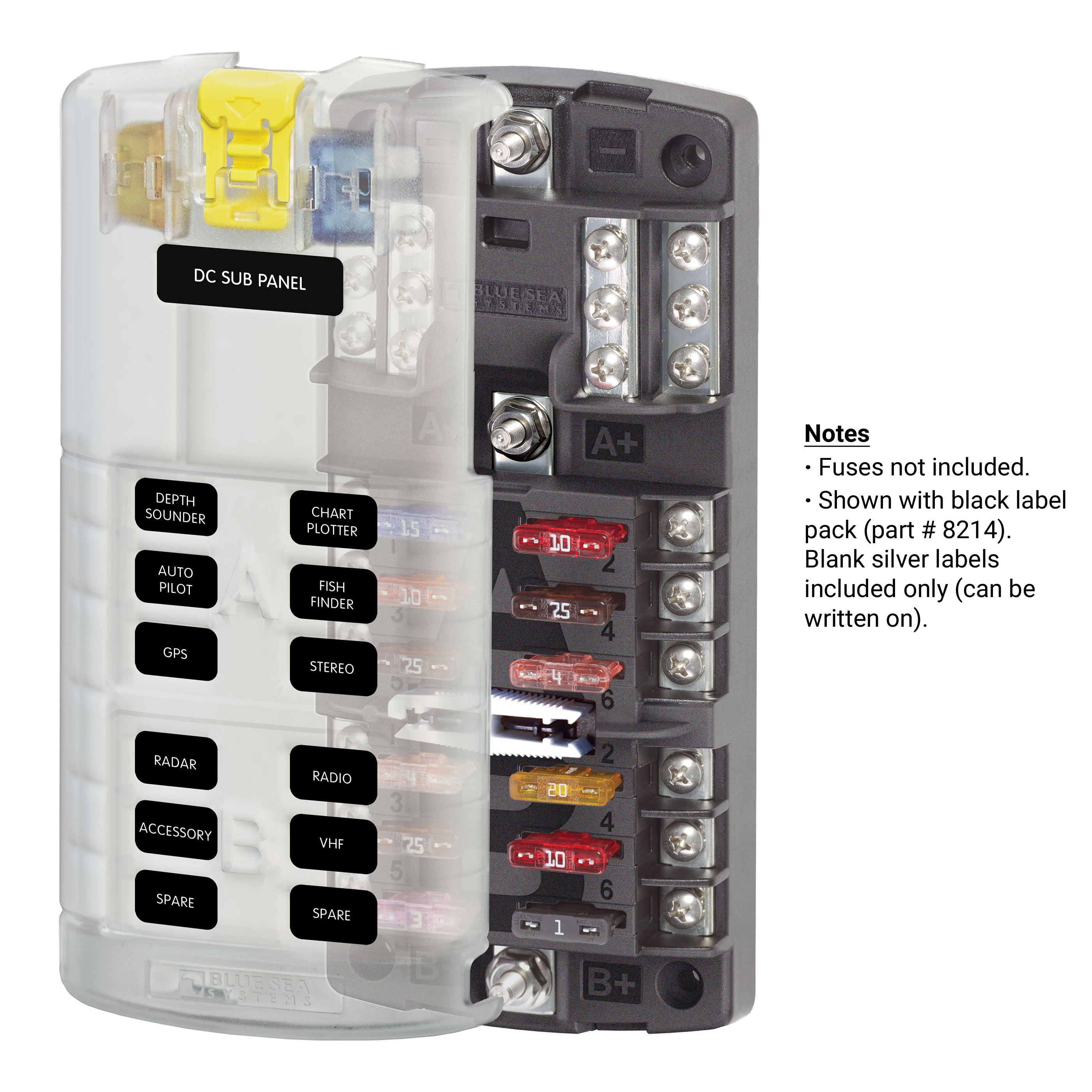

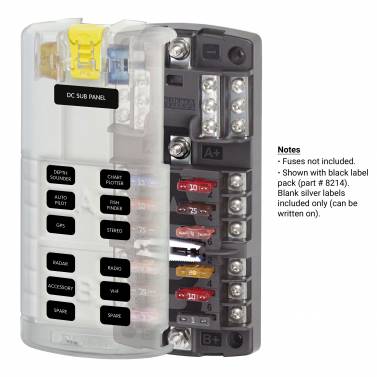

New Blue Sea Systems ST Blade split bus 12-circuit fuse block with cover. Part number 5032. Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block.

  • Provides two isolated groups of six ATO/ATC circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
  • Screw terminals for securing wires accept ring terminals
  • One-piece stainless flange nuts ensure safe and secure connections
  • Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
  • Accepts Blue Sea Small Format Labels for circuit identification (blank silver labels included for writing on -- optional Blue Sea part # 8214 black labels are available)
  • Easy to open, push button latch for easy access to fuses
  • Tin-plated copper buses and fuse clips
  • Fuses sold separately

  • Circuits: 12
  • Maximum Amperage: 30A per circuit, 100A total
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw (M4)
  • Negative Bus: #10-32 Stud
  • Recommended Torque: 24 in-lb (2.71 Nm)
  • Screw Terminal Torque: 15 in-lb (1.69 Nm)
  • Screw Terminal Type: #8-32 Screws with captive star lock washer
Share this product:

$68.87 US

Free Shipping to the Lower 48 US States
Out of stock
Notify when in stock

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.9 lbs
ManufacturerBlue Sea Systems
Manufacturer #5032
ModelBlue Sea 5032
Part #5032
Product TypeST Blade Fuse Block 12 Circuit
Shipping Dims7" x 4" x 3"
Shipping Wt1 lbs
Warranty5 Year
