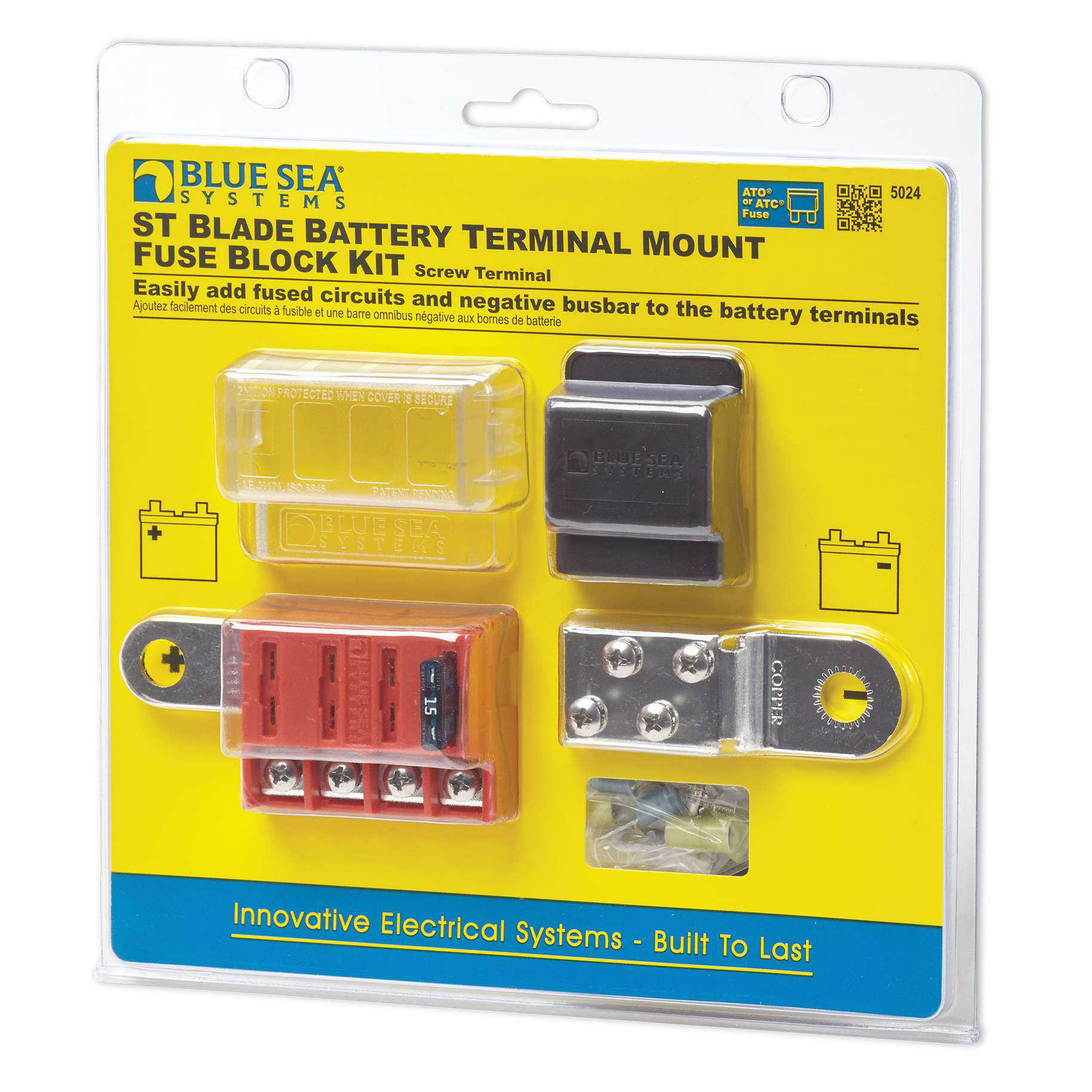

Blue Sea 5024 Marine ST Blade Battery Terminal Mount Fuse Block Kit Boat
By Blue Sea
PART #5024
WARRANTYLimited Lifetime
MADE INMexico
SHIPPING WT0.6 lbs
SHIPPING DIMS8" x 8" x 2"
$29.31
Free Shipping to the Contiguous 48 US States
(See all shipping options in cart)
36 in stock
Secured by:
Share this product:
PinterestTwitterFacebook
Product Description
Blue Sea Systems 5024. ST Blade Battery Terminal Mount Fuse Block Kit. Easily add 4 fused circuits to the terminal of a battery.

Features
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications
  • Circuits: 4
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Bus Material: Tin-Plater Copper C11000
  • Mounting Hole: 3/8" (M10) Stud
  • Screw Terminal Torque: 15 in-lb (1.69 Nm)
  • Screw Terminal Type: #8-32
Details
BrandBlue Sea
Item Weight0.5 lbs
Made InMexico
ManufacturerBlue Sea Systems
Manufacturer #5024
ModelBlue Sea 5024
Part Number5024
Shipping Dims8" x 8" x 2"
Shipping Weight0.6 lbs
TypeFuse Block
UPC632085050245
WarrantyLimited Lifetime
