Blue Sea 5023 Marine ST Blade Battery Terminal Mount Fuse Block Boat Electrical
By Blue Sea
Part #5023
Warranty5 Year
Made InMexico
Shipping Wt0.5 lbs

$24.74 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
12 in stock
Pay in 4 interest-free payments with

Product Description

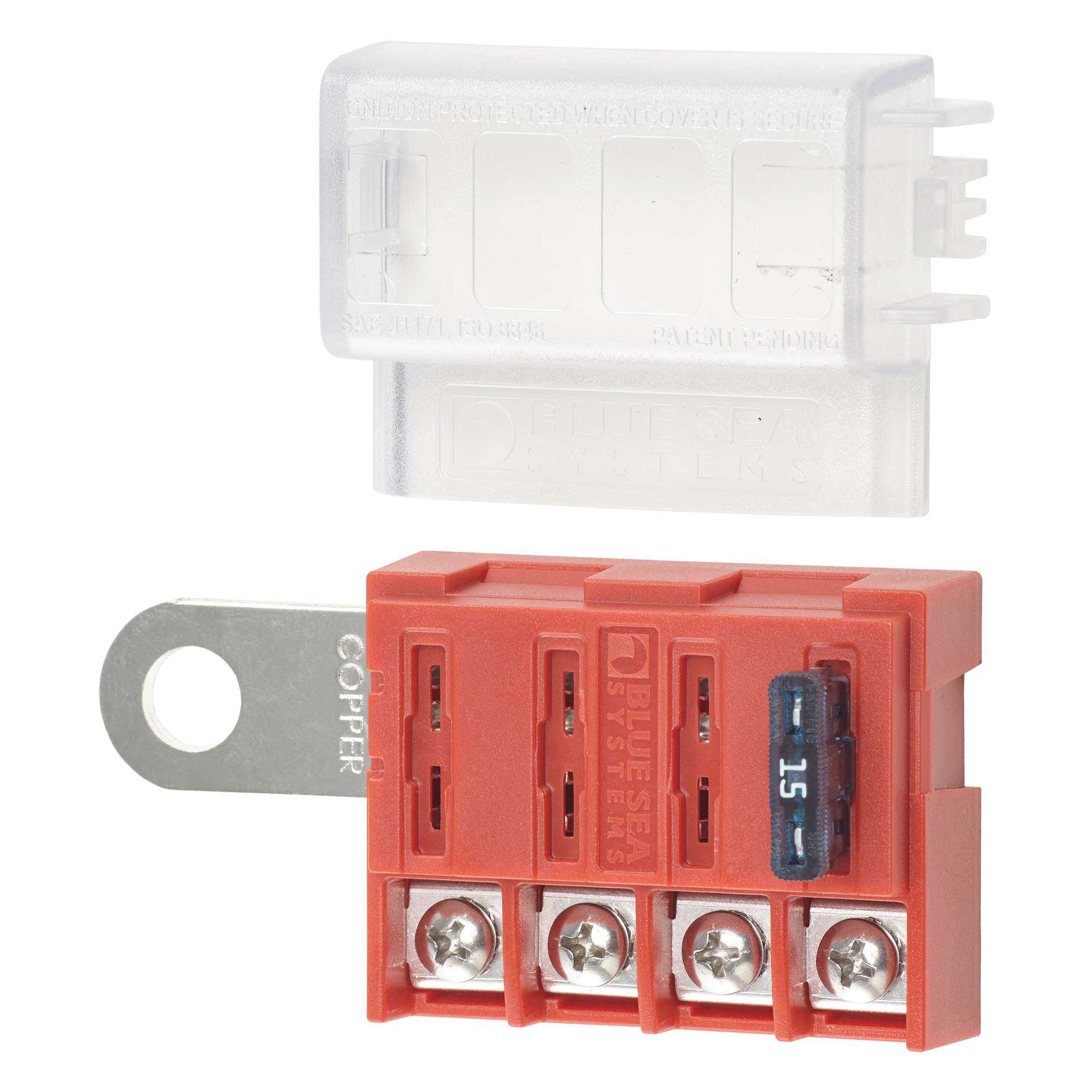

Blue Sea Systems 5023. ST Blade Battery Terminal Mount Fuse Block.

Features
  • Easy to install 4 ATO/ATC fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Four Nylon insulated ring terminals included
  • Insulating cover included
  • Accepts Small Format Circuit Labels
  • Includes 1 fuse

Specifications
  • Circuits: 4
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: Clearance for 3/8" [M10] stud
  • Screw Terminal Torque: 15 in-lb (1.69 Nm)
  • Screw Terminal Type: #8-32 Screws with captive star lock washer
Share this product:
PinterestTwitterFacebook

$24.74 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
12 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.3 lbs
ManufacturerBlue Sea Systems
Manufacturer #5023
ModelBlue Sea 5023
Part #5023
Product TypeFuse Block
Shipping Dims8" x 5" x 2"
Shipping Wt0.5 lbs
UPC632085050238
Warranty5 Year
