SeaStar HK6400TS-3 Tilt Hydraulic Outboard Boat Steering Kit (No Hoses) Teleflex
By SeaStar Solutions
By SeaStar Solutions
Part # | HK6400TS-3 |
---|---|
Warranty | 2 Year |
Made In | Canada |
Shipping Wt | 29 lbs |
$2,052.99 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Description
New SeaStar Solutions HK6400TS-3 SeaStar Tilt hydraulic outboard steering system.
Features
Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
The HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If your outboards needs the HO5090 spacer kit, you can find it here.
Hoses
This SeaStar kit does not include a hose kit. If you need one with a hose kit, please choose one from here. You can use the measuring guide in the product images to see what length your boat requires.
Features
- 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
- Standard 3/4" Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8"-18UNF)
- Patented No FeedBack™ (NFB) Lock Valves
- Exceeds NMMA and ABYC Standards
Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
The HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If your outboards needs the HO5090 spacer kit, you can find it here.
Hoses
This SeaStar kit does not include a hose kit. If you need one with a hose kit, please choose one from here. You can use the measuring guide in the product images to see what length your boat requires.

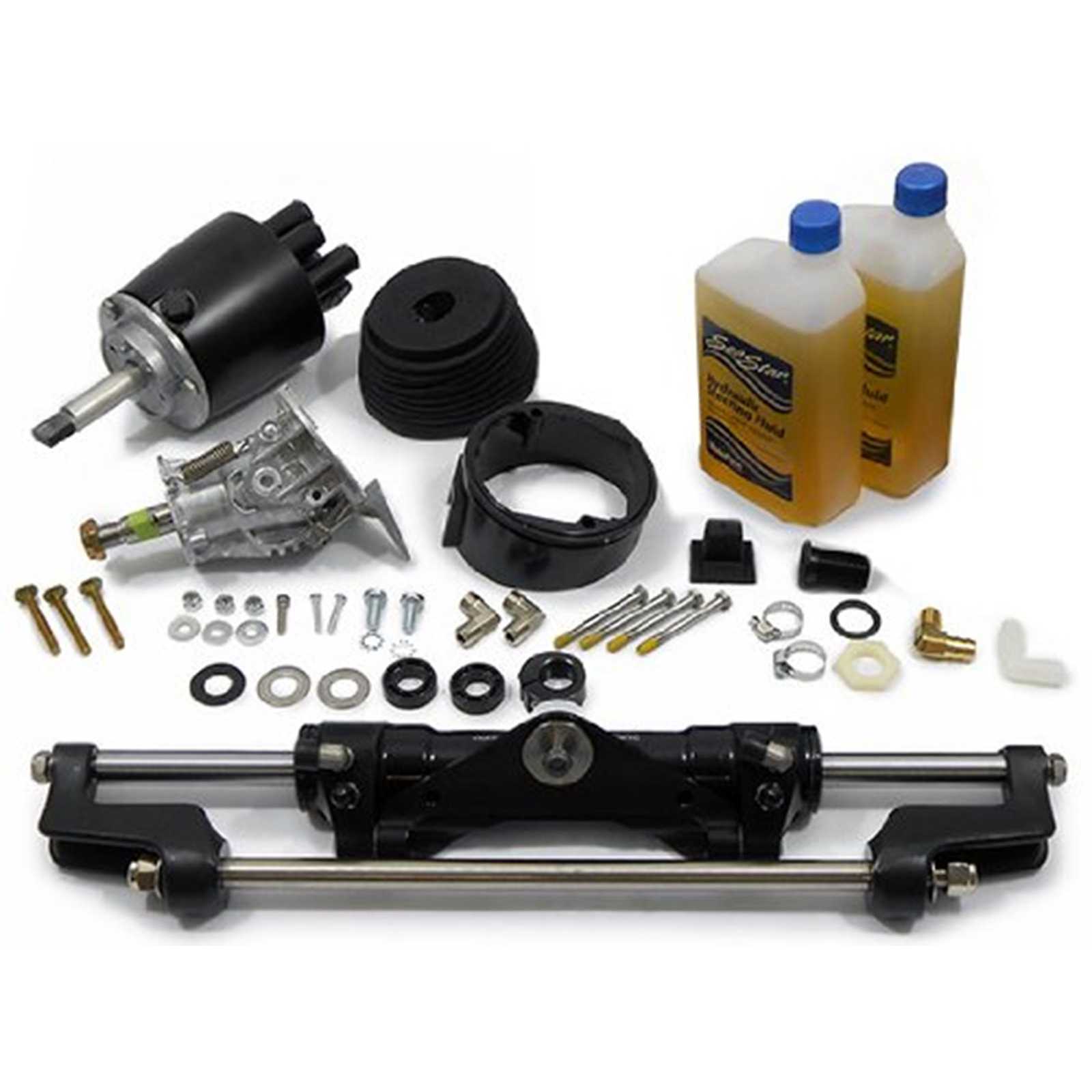

Description | Part Number | Qty |
---|---|---|
Helm | HH6191-3 | 1 |
Cylinder | HC5345-3 | 1 |
Hose Kit | Not included | |
Fluid/Oil | HA5430H | 2 quarts |
Filler Kit | HA5438 | 1 |
Instructions | 1 |
$2,052.99 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock(See all shipping options in cart)


Pay in 4 interest-free payments with

Product Specifics
Brand | SeaStar Solutions |
---|---|
Made In | Canada |
Fits | Please see application guide |
Item Weight | 27 lbs |
Manufacturer | SeaStar Solutions |
Manufacturer # | HK6400TS-3 |
Model | SeaStar Tilt |
Part # | HK6400TS-3 |
Product Type | Boat Steering Kit |
Replaces | Teleflex Marine HK6400TS-3 |
Shipping Dims | 24" x 12" x 12" |
Shipping Wt | 29 lbs |
Size | No Hose |
UPC | 808282339531 |
Warranty | 2 Year |
