SeaStar HK4200A-3 BayStar Hydraulic Outboard Steering Kit Teleflex Marine System
By SeaStar Solutions
By SeaStar Solutions
- Complete kit with instructions
- For single-outboard, single-helm boats
- Up to 55 mph and 150 hp
- View photos and description for important application information!
Part # | HK4200A-3 |
---|---|
Warranty | 2 Year |
Made In | Canada |
Shipping Wt | 22 lbs |
$988.99 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New SeaStar Solutions HK4200A-3 BayStar hydraulic outboard steering system. Comes complete with everything needed to install, including installation instructions.
Features
Works For
Single-helm, single-outboard boats under 55 mph and 150 hp. If your outboard exceeds 150 hp or is a pontoon boat, you'll need the SeaStar kit. If your boat exceeds 55 mph, is a fast bass boat, or has dual-cable steering, you'll need the SeaStar Pro kit. The BayStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
Comes with HC4645-3 compact cylinder to fit most outboards. Use the application guide in the product images to make sure that is what you need prior to ordering. If you need a different cylinder, find the BayStar kit that comes with it here: HC4647, HC4648, or HC4658. If you need the HO5090 spacer kit, find it here.
Hoses/Tubes
Comes with two 20ft cut-to-length hoses, which accommodates most boats. During installation, the instructions will guide you on how to cut the hoses to the required length and install the included compression nuts. If you need longer than 20ft, use a SeaStar hose kit, which is fully compatible with the BayStar. You can use the measuring guide in the product images to see what length your boat requires.
Features
- 5 Turns Lock-to-Lock (1.4 cu. in. displacement helm)
- Standard 3/4" Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8"-18UNF)
- Patented No FeedBack™ (NFB) Lock Valves
- Replaces and Supersedes Teleflex Marine BayStar HK4200A and HK4200
- Exceeds NMMA and ABYC Standards
Works For
Single-helm, single-outboard boats under 55 mph and 150 hp. If your outboard exceeds 150 hp or is a pontoon boat, you'll need the SeaStar kit. If your boat exceeds 55 mph, is a fast bass boat, or has dual-cable steering, you'll need the SeaStar Pro kit. The BayStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.
Cylinder/Ram
Comes with HC4645-3 compact cylinder to fit most outboards. Use the application guide in the product images to make sure that is what you need prior to ordering. If you need a different cylinder, find the BayStar kit that comes with it here: HC4647, HC4648, or HC4658. If you need the HO5090 spacer kit, find it here.
Hoses/Tubes
Comes with two 20ft cut-to-length hoses, which accommodates most boats. During installation, the instructions will guide you on how to cut the hoses to the required length and install the included compression nuts. If you need longer than 20ft, use a SeaStar hose kit, which is fully compatible with the BayStar. You can use the measuring guide in the product images to see what length your boat requires.

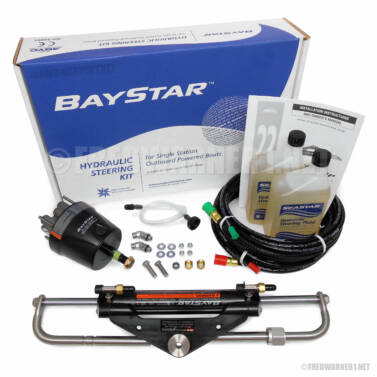

Kit Contents | Part Number | Qty |
---|---|---|
Helm | HH4314-3 | 1 |
Cylinder | HC4645-3 | 1 |
Hose Kit | HT4420H | 1 (two 20ft hoses) |
Steering Fluid | HA5430 | 2 |
Filler Kit | HA5438 | 1 |
Instructions | 1 |
$988.99 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
Brand | SeaStar Solutions |
---|---|
Made In | Canada |
Fits | Please see application guide |
Item Weight | 21 lbs |
Manufacturer | SeaStar Solutions |
Manufacturer # | HK4200A-3 |
Model | BayStar |
Part # | HK4200A-3 |
Product Type | Boat Steering Kit |
Replaces | Teleflex Marine HK4200A-3 |
Shipping Dims | 22" x 14" x 5" |
Shipping Wt | 22 lbs |
UPC | 731957918567 |
Warranty | 2 Year |
