New SeaStar Solutions HK6400A-3 SeaStar hydraulic outboard steering system.

Features

• 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
• Standard 3/4" Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8"-18UNF)
• Patented No FeedBack™ (NFB) Lock Valves
• Replaces and Supersedes Teleflex Marine SeaStar HK6400A and HK6400
• Exceeds NMMA and ABYC Standards

Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating). Twin engine applications require a tie bar kit. High performance boats, top speeds above 60 mph, fast bass boat, or boats with dual-cable steering will require the SeaStar Pro kit. The SeaStar requires a 3" (76mm) cut-out hole in the dash and a minimum 21" (534mm) splashwell width.

Cylinder/Ram
The HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires. If you need a cylinder other than the HC5345-3, find the SeaStar kit that comes with it here: HC5347-3, HC5348-3, or HC5358-3. If your outboards needs the HO5090 spacer kit, you can find it here.

Hoses
This SeaStar kit does not include a hose kit. If you need one with a hose kit, please choose one from here. You can use the measuring guide in the product images to see what length your boat requires.

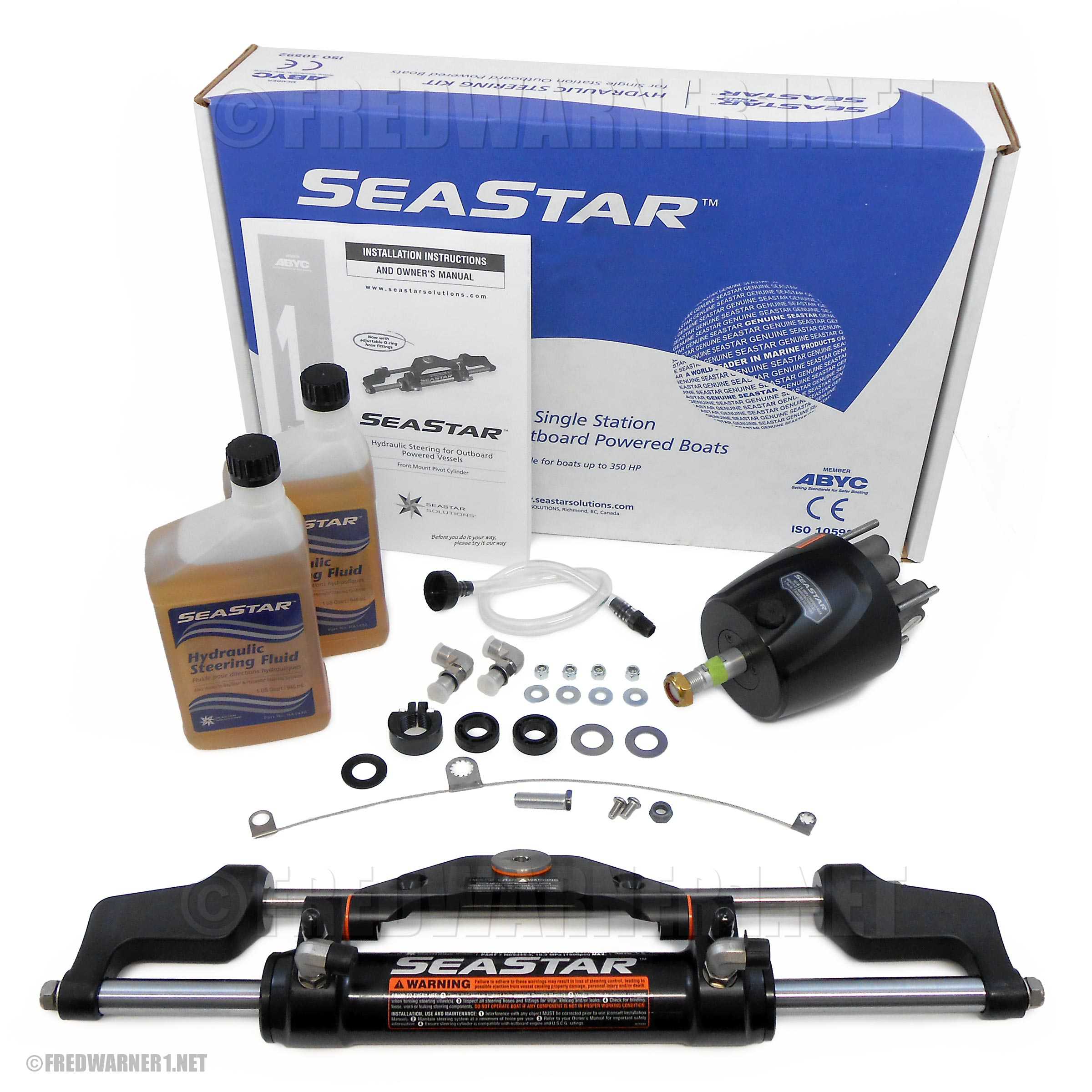

Description	Part Number	Qty
Helm	HH5271-3	1
Cylinder	HC5345-3	1
Hose Kit	Not included
Fluid/Oil	HA5430H	2 quarts
Filler Kit	HA5438	1
Instructions		1

For the tilt helm SeaStar kit, go here.
