BayStar Tilt Hydraulic Outboard Steering Kit (HH4315-3 Helm) SeaStar Teleflex
By SeaStar Solutions
By SeaStar Solutions
| Part # | HH4315-3,HC4645-3,HT4420H |
|---|---|
| Warranty | 2 Year |
| Made In | Canada |
| Shipping Wt | 31 lbs |
$1,087.35 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New SeaStar Solutions BayStar Tilt hydraulic outboard steering system. Comes complete with everything needed to install, including installation instructions. This kit includes the BayStar HH4315-3 tilt helm. (For the regular non-tilt BayStar kit, please go here.)
Features
Works For
Single-helm, single-outboard boats under 55 mph and 150 hp. If your outboard exceeds 150 hp or is a pontoon boat, you'll need the SeaStar tilt kit. If your boat exceeds 55 mph, is a fast bass boat, or has dual-cable steering, you'll need the SeaStar Pro kit (non-tilt). The BayStar requires a minimum 21" (534mm) splashwell width.
Cylinder/Ram
Comes with HC4645-3 compact cylinder to fit most outboards. Use the application guide in the product images to make sure that is what you need prior to ordering. If you need a different cylinder, find the BayStar kit that comes with it here: HC4647, HC4648, or HC4658. If you need the HO5090 spacer kit, find it here.
Hoses/Tubes
Comes with two 20ft cut-to-length hoses, which accommodates most boats. During installation, the instructions will guide you on how to cut the hoses to the required length and install the included compression nuts. If you need longer than 20ft, use a SeaStar hose kit, which is fully compatible with the BayStar. You can use the measuring guide in the product images to see what length your boat requires.
Features
- 5 Turns Lock-to-Lock (1.4 cu. in. displacement helm)
- Standard 3/4" Tapered Keyed Steering Shaft
- Patented No FeedBack™ (NFB) Lock Valves
- Exceeds NMMA and ABYC Standards
Works For
Single-helm, single-outboard boats under 55 mph and 150 hp. If your outboard exceeds 150 hp or is a pontoon boat, you'll need the SeaStar tilt kit. If your boat exceeds 55 mph, is a fast bass boat, or has dual-cable steering, you'll need the SeaStar Pro kit (non-tilt). The BayStar requires a minimum 21" (534mm) splashwell width.
Cylinder/Ram
Comes with HC4645-3 compact cylinder to fit most outboards. Use the application guide in the product images to make sure that is what you need prior to ordering. If you need a different cylinder, find the BayStar kit that comes with it here: HC4647, HC4648, or HC4658. If you need the HO5090 spacer kit, find it here.
Hoses/Tubes
Comes with two 20ft cut-to-length hoses, which accommodates most boats. During installation, the instructions will guide you on how to cut the hoses to the required length and install the included compression nuts. If you need longer than 20ft, use a SeaStar hose kit, which is fully compatible with the BayStar. You can use the measuring guide in the product images to see what length your boat requires.

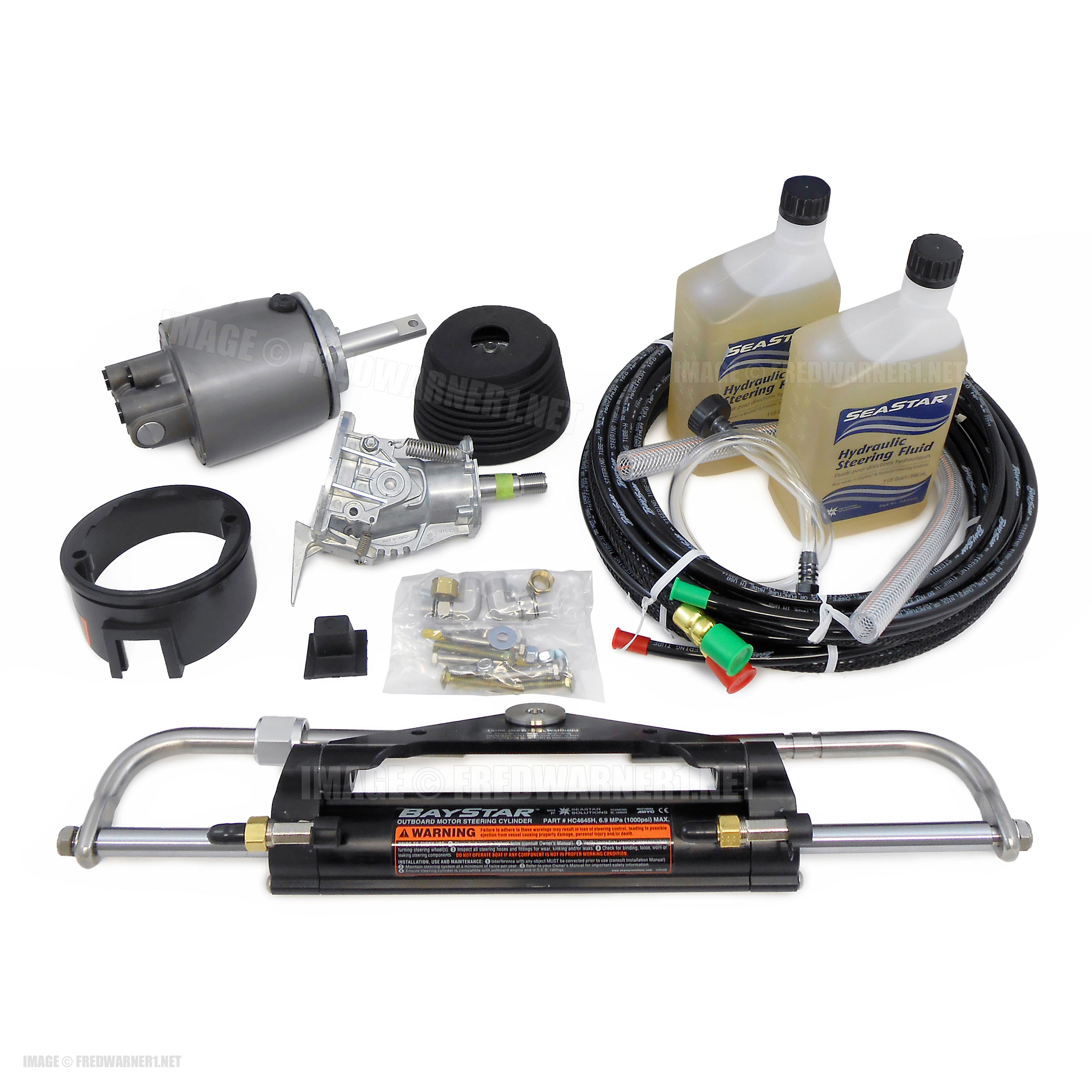

| Kit Contents | Part Number | Qty |
|---|---|---|
| Tilt Helm | HH4315-3 | 1 |
| Cylinder | HC4645-3 | 1 |
| Hose Kit | HT4420H | 1 (two 20ft hoses) |
| Steering Fluid | HA5430 | 2 |
| Filler Kit | HA5438 | 1 |
| Instructions | 1 |
$1,087.35 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | SeaStar Solutions |
|---|---|
| Made In | Canada |
| Fits | Please see application guide |
| Item Weight | 26.4 lbs |
| Manufacturer | SeaStar Solutions |
| Manufacturer # | HH4315-3,HC4645-3,HT4420H |
| Model | BayStar Tilt |
| Part # | HH4315-3,HC4645-3,HT4420H |
| Product Type | Boat Steering Kit |
| Replaces | Teleflex Marine HK4200TS-3 |
| Shipping Dims | 28" x 14" x 8" |
| Shipping Wt | 31 lbs |
| UPC | 491546000584 |
| Warranty | 2 Year |
