Blue Sea 8371 Power Distribution Panel 12V 24V DC 8-Position Waterproof
By Blue Sea
By Blue Sea
| Part # | 8371 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 3 lb |
$198.77 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description

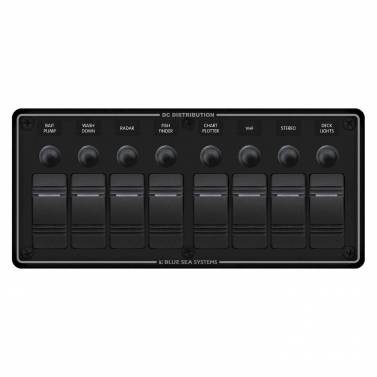

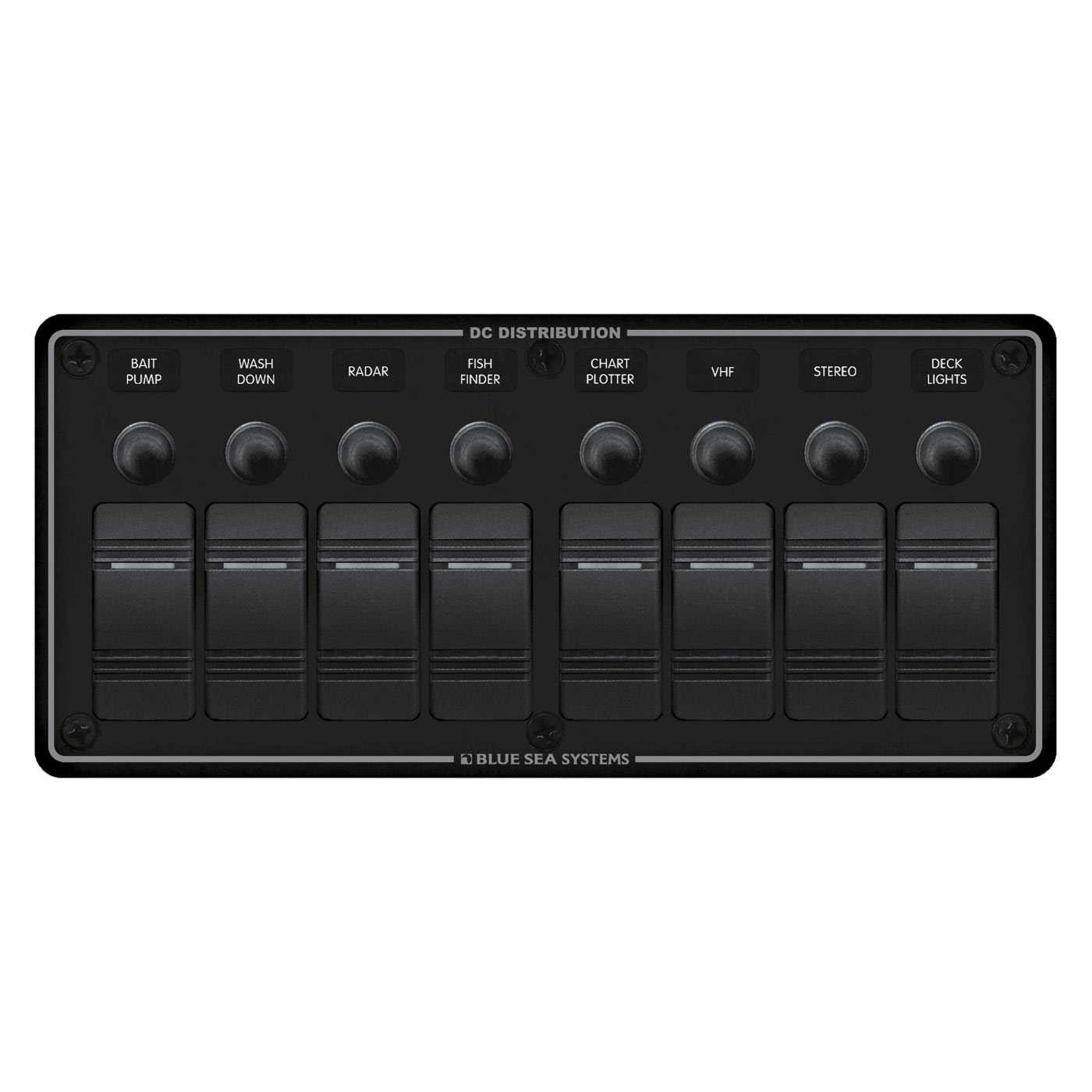

New Blue Sea Systems power distribution panel with waterproof switches and circuit breaker. Part number 8371. Fully wired and ready for installation.
Features
Specifications
Features
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66 - Protected against powerful water jets
- Ignition protected - safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
- Includes Blue Sea 8214 Black 60 Label Set
Specifications
- Positions: 8
- Nominal Voltage: 12V DC
- 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC
- 15A @ 24V DC
- Height: 4.25in (107.95 mm)
- Width: 9.37in (238 mm)
- Depth: 3.25in (82.55 mm)
- Weight: 1.70lb (0.77 kg)
- Includes Blue Sea 8214 Black 60 Label Set
$198.77 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 1.76 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 8371 |
| Part # | 8371 |
| Product Type | 12/24V DC Power Panel Waterproof |
| Shipping Dims | 13" x 10" x 5" |
| Shipping Wt | 3 lb |
| UPC | 632085083717 |
| Warranty | 5 Year |
