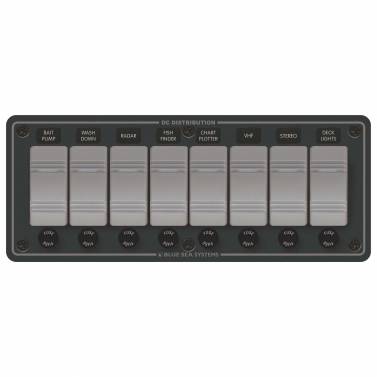

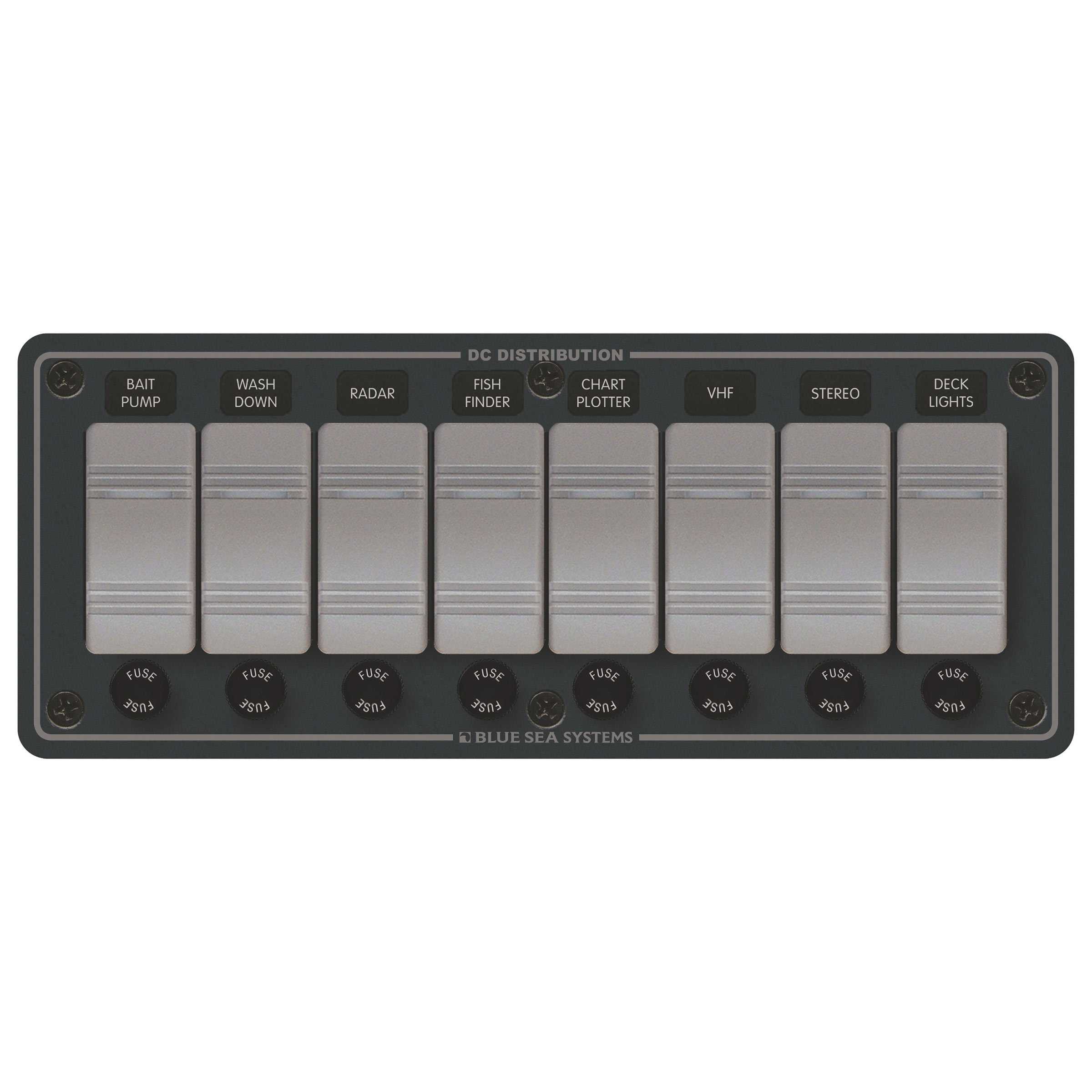

Blue Sea 8261 Power Distribution Panel 12V 24V DC 8-Position Waterproof
By Blue Sea
Part #8261
Warranty5 Year
Made InMexico
Shipping Wt3 lbs

$176.59 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems Contura waterproof power distribution panel with waterproof switches and fuse holders. Part number 8261. Has 8 positions and comes fully wired and ready for installation. For 12V and 24V DC systems.

Features
  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches

Specifications
  • Positions: 8
  • Nominal Voltage: 12V DC
  • 24V DC
  • Panel Cumulative Rating: 90A
  • Switch Rating: 20A @ 12V DC
  • 15A @ 24V DC
  • Height: 3.75in (95.25 mm)
  • Width: 9.37in (238 mm)
  • Depth: 3.00in (76.2 mm)
  • Weight: 1.40lb (0.64 kg)
Share this product:
PinterestTwitterFacebook

$176.59 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight1.4 lbs
ManufacturerBlue Sea Systems
Manufacturer #8261
ModelBlue Sea 8261
Part #8261
Product Type12/24V DC Power Panel Waterproof Contura
Shipping Dims12" x 9" x 5"
Shipping Wt3 lbs
UPC632085082611
Warranty5 Year
