Blue Sea 8054 Power Distribution Panel 12V 24V DC Waterproof 3 Pos Fuse Marine
By Blue Sea
By Blue Sea
| Part # | 8054 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$96.00 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

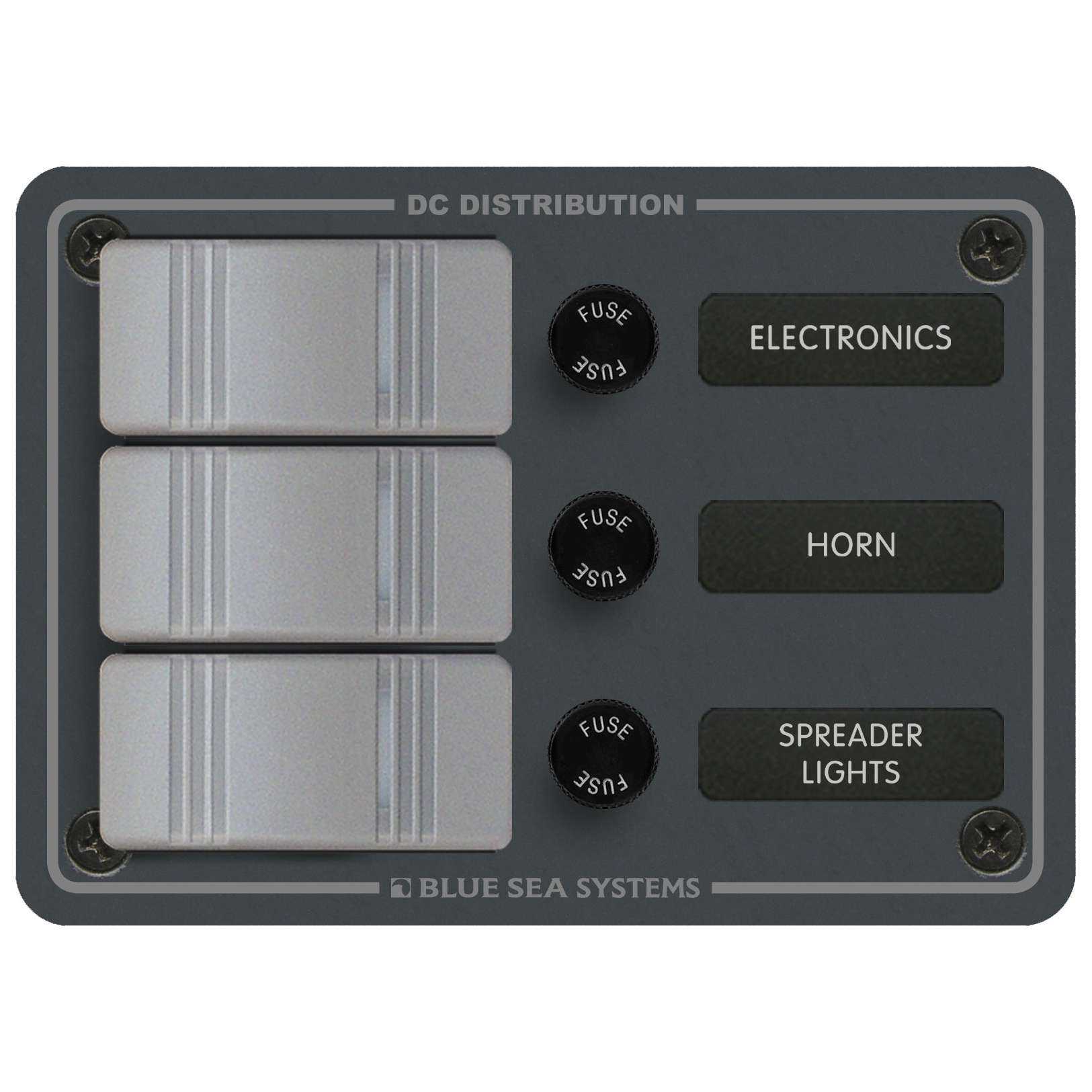

New Blue Sea Systems 12/24 volt DC waterproof 3-position power distribution panel. Part number 8054. Fully wired and ready for installation with waterproof switches and fuse holders.
Features
Specifications
Features
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Includes 8030 Basic DC Panel 30 Label Set
Specifications
- Weatherproof: Water Resistant
- Positions: 3
- Nominal Voltage: 12V DC, 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC, 15A @ 24V DC
- Height: 3.75in (95.25 mm)
- Width: 5.25in (133.35 mm)
- Depth: 3.00in (76.2 mm)
- Weight: 0.70lb (0.32 kg)
$96.00 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
4 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Slate Gray |
| Made In | Mexico |
| Item Weight | 0.7 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8054 |
| Model | Blue Sea 8054 |
| Part # | 8054 |
| Product Type | Power Distribution Panel |
| Shipping Dims | 9" x 7" x 5" |
| Shipping Wt | 2 lbs |
| UPC | 632085080549 |
| Warranty | 5 Year |
