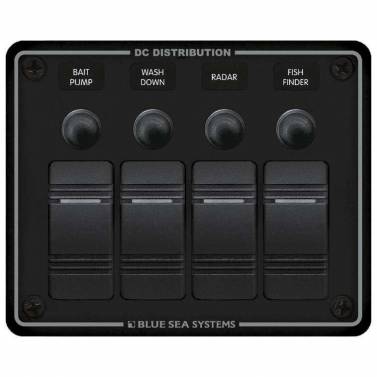

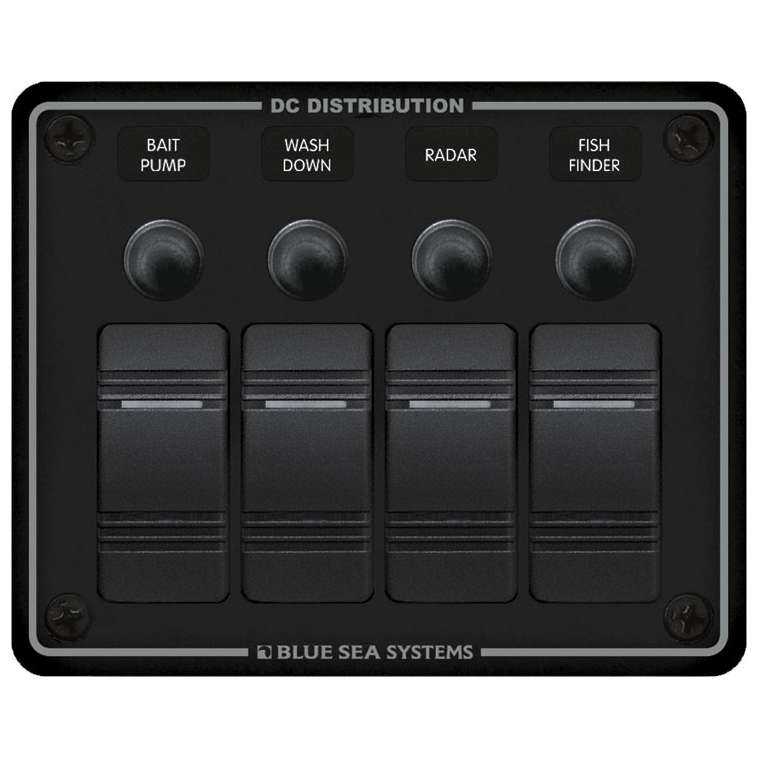

Blue Sea 8372 Power Distribution Panel Waterproof 12V 24V DC Circuit 4 Pos
By Blue Sea
By Blue Sea
| Part # | 8372 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$118.48 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems waterproof power distribution panel for 12/24 volt DC systems. Part number 8372. Fully wired and ready for installation with waterproof switches and circuit breakers.
Features
Specifications
Features
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66-Protected against powerful water jets
- Ignition protected-safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
- Includes Blue Sea 8214 Black 60 Label Set
Specifications
- Positions: 4
- Nominal Voltage: 12V DC, 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC, 15A @ 24V DC
- Height: 4.25in (107.95 mm)
- Width: 5.25in (133.35 mm)
- Depth: 3.25in (82.55 mm)
- Weight: 0.95lb (0.43 kg)
$118.48 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
5 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | Mexico |
| Item Weight | 0.9 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 8372 |
| Model | Blue Sea 8372 |
| Part # | 8372 |
| Product Type | Power Distribution Panel |
| Shipping Dims | 9" x 7" x 5" |
| Shipping Wt | 2 lbs |
| UPC | 632085083724 |
| Warranty | 5 Year |
