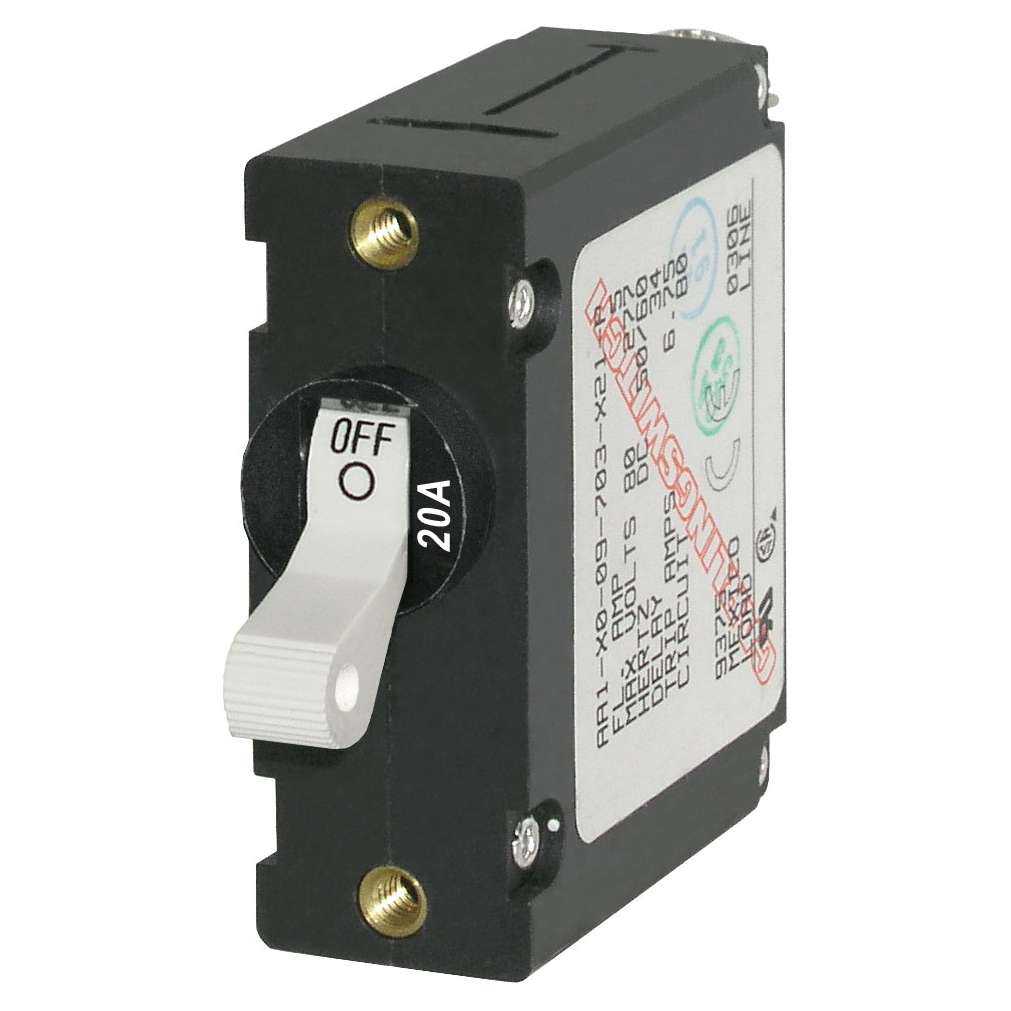

Blue Sea 7214 A-Series White Toggle Circuit Breaker Single Pole 20A
By Blue Sea
By Blue Sea
| Part # | 7214 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.4 lb |
$23.51 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New Blue Sea Systems A-Series White Toggle Circuit Breaker - Single Pole 20A. Part number 7214.
Features
Specifications
Features
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines swtiching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications
- Amperage: 20A AC, 20A DC
- Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 120V AC, 1500A @ 250V AC [TUV], 3000A @ 250V AC [UL 1077], 7500A @ 65V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.17lb (0.08 kg)
$23.51 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.18 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 7214 |
| Part # | 7214 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.4 lb |
| UPC | 632085072148 |
| Warranty | 5 Year |
