SeaStar PA1200-2 Power Assist Hydraulic Steering 15ft Harness Teleflex Marine


In stock

Free Shipping to the Contiguous 48 US States

Product Details

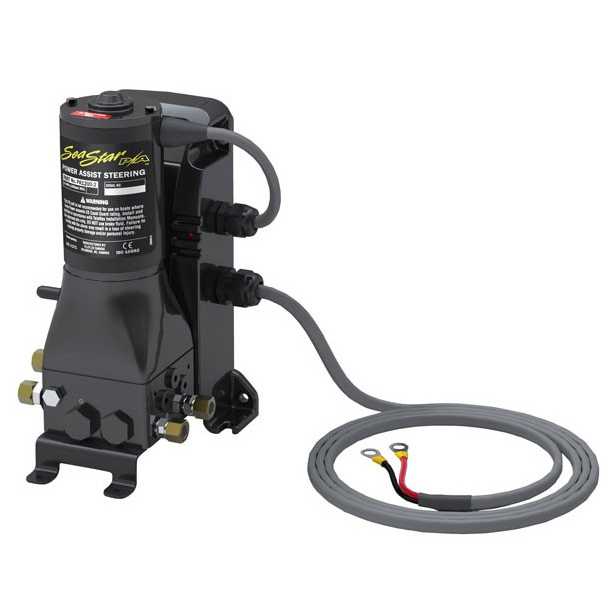

New SeaStar Solutions PA1200-2 power assist for SeaStar hydraulic steering systems. Includes 15 foot harness. For use with HK6400A-3 SeaStar hydraulic steering system (not for use with HK7400/HK7500 Pro kits). Runs on 12 volt or 24 volt DC power.

  • Bass Boats
  • Power Catamarans
  • Inboard powered cruisers without engine driven power assist
  • 150HP+ single outboards
  • Heavy 4 stroke outboards
  • Twin/Triple outboards
  • Inboards where rudder torque makes steering effort uncomfortable

  • Dramatically increases steering comfort
  • Reduced wheel effort
  • Easy installation
  • Simple add-on to existing SeaStar hydraulic system (up to 2.0cu in helms)
  • Number of turns lock to lock remains the same
  • Compatible with SeaStar Power Purge system
  • Compatible with autopilots
  • 15ft wiring harness included
  • Ignition protected (SAE J-1171)
  • Auto recognize system voltage (12V or 24V)
  • ABYC, CE, NMMA, ISO 10592 Approved
  • Capable of floor or wall mount

Additional information

Product Specifications
ReplacesTeleflex Marine PA1200-2
Manufacturer Part NumberPA1200-2
TypeBoat Power Assist Kit
Shipping Dimensions14" x 14" x 11"
Item Weight15.3 lbs
Shipping Weight17 lbs
BrandSeaStar Solutions
Country of ManufactureCanada
Part NumberPA1200-2
ManufacturerSeaStar Solutions
Warranty2 Year
