Blue Sea 7352 C-Series White Toggle Circuit Breaker Single Pole 15 Amp Marine
By Blue Sea
By Blue Sea
| Part # | 7352 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.4 lb |
$49.62 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description

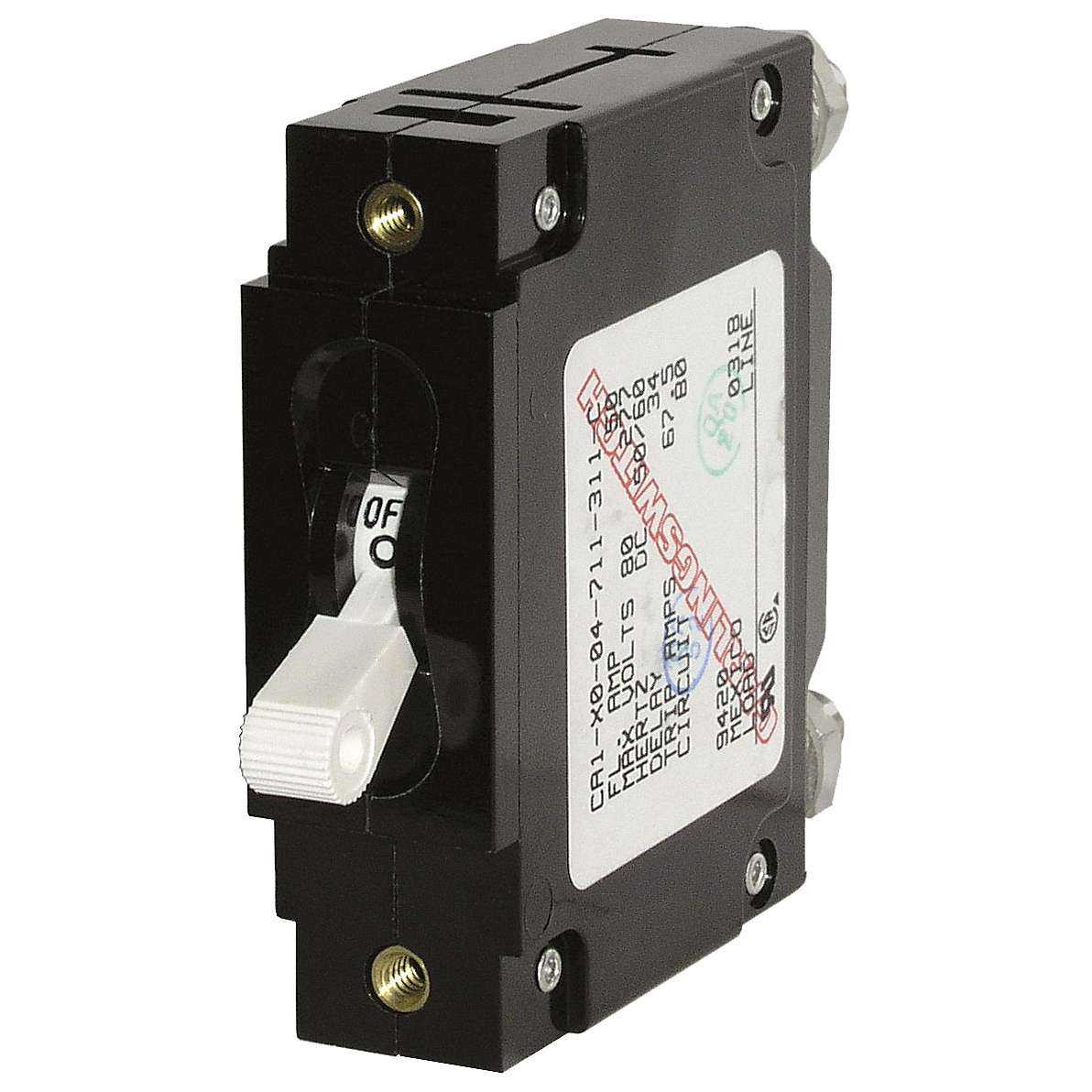

New Blue Sea Systems C-Series White Toggle Circuit Breaker - Single Pole 15 Amp. Part number 7352.
Features
Specifications
Features
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free"-cannot be held closed after trip
Specifications
- Amperage: 15A AC, 15A DC
- Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC, 80V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A @ 125V AC, 5000A @ 250V AC, 10000A @ 80V DC
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.25lb (0.11 kg)
$49.62 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.28 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 7352 |
| Part # | 7352 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.4 lb |
| UPC | 632085073527 |
| Warranty | 5 Year |
