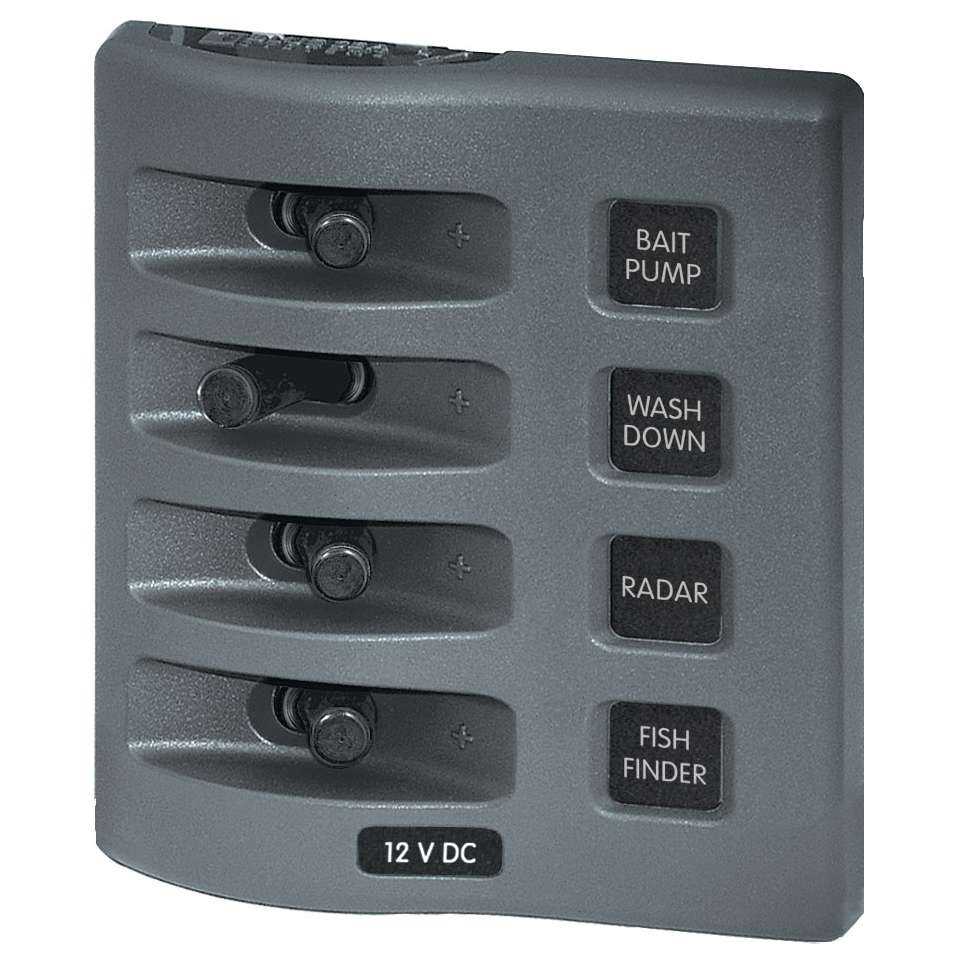

Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel 4 Position Marine Boat
By Blue Sea
Part #4305
Warranty5 Year
Made InMexico
Shipping Wt0.9 lbs

$53.27 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel - 4 Position. Part number 4305.

Features
  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Specifications
  • Weatherproof: Waterproof
  • Positions: 4
  • Nominal Voltage: 12V DC, 24V DC
  • Circuit Protection: None
  • Maximum Amperage: 15A @ 12V DC (per circuit)
  • Panel Cumulative Rating: 45A
  • Material: Reinforced Polycarbonate
  • Height: 4.30in (109.22 mm)
  • Width: 3.88in (98.55 mm)
  • Depth: 2.50in (63.5 mm)
  • Weight: 0.90lb (0.41 kg)
Share this product:
PinterestTwitterFacebook

$53.27 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
6 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.68 lbs
ManufacturerBlue Sea Systems
Manufacturer #4305
ModelBlue Sea 4305
Part #4305
Product TypeSwitch Panel
Shipping Dims9" x 6" x 4"
Shipping Wt0.9 lbs
UPC632085043056
Warranty5 Year
