Blue Sea 4180 Marine 15A Backlit Push Button Switch OFF-ON Boat Electrical
By Blue Sea
Part #4180
Warranty5 Year
Shipping Wt0.6 lbs

$59.77 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
9 in stock
Pay in 4 interest-free payments with

Product Description

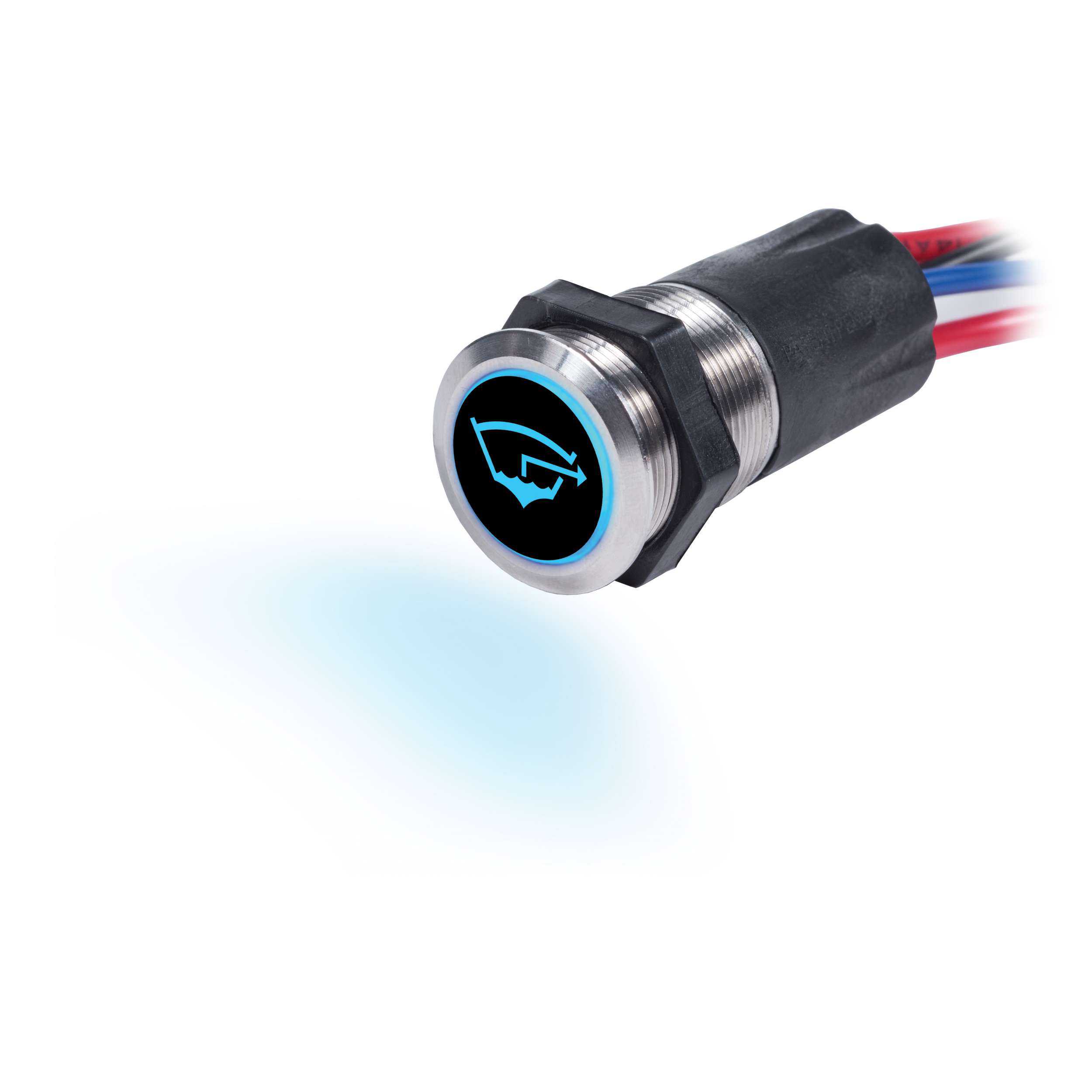

Blue Sea Systems 4180. 15A Backlit Push Button Switch OFF-ON.

Features
  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Additional 50 ICON label kit sold separately

Specifications
  • Action: OFF-ON
  • Amperage: 15A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Temperature Range: -20 degreeC to 55 degreeC
  • Termination: 3" - Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG, Red & Red/White Wires 14AWG
Share this product:
PinterestTwitterFacebook

$59.77 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
9 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InChina
Item Weight0.4 lbs
ManufacturerBlue Sea Systems
Manufacturer #4180
ModelBlue Sea 4180
Part #4180
Product TypeSwitch
Shipping Dims9" x 3" x 2"
Shipping Wt0.6 lbs
UPC632085041809
Warranty5 Year
