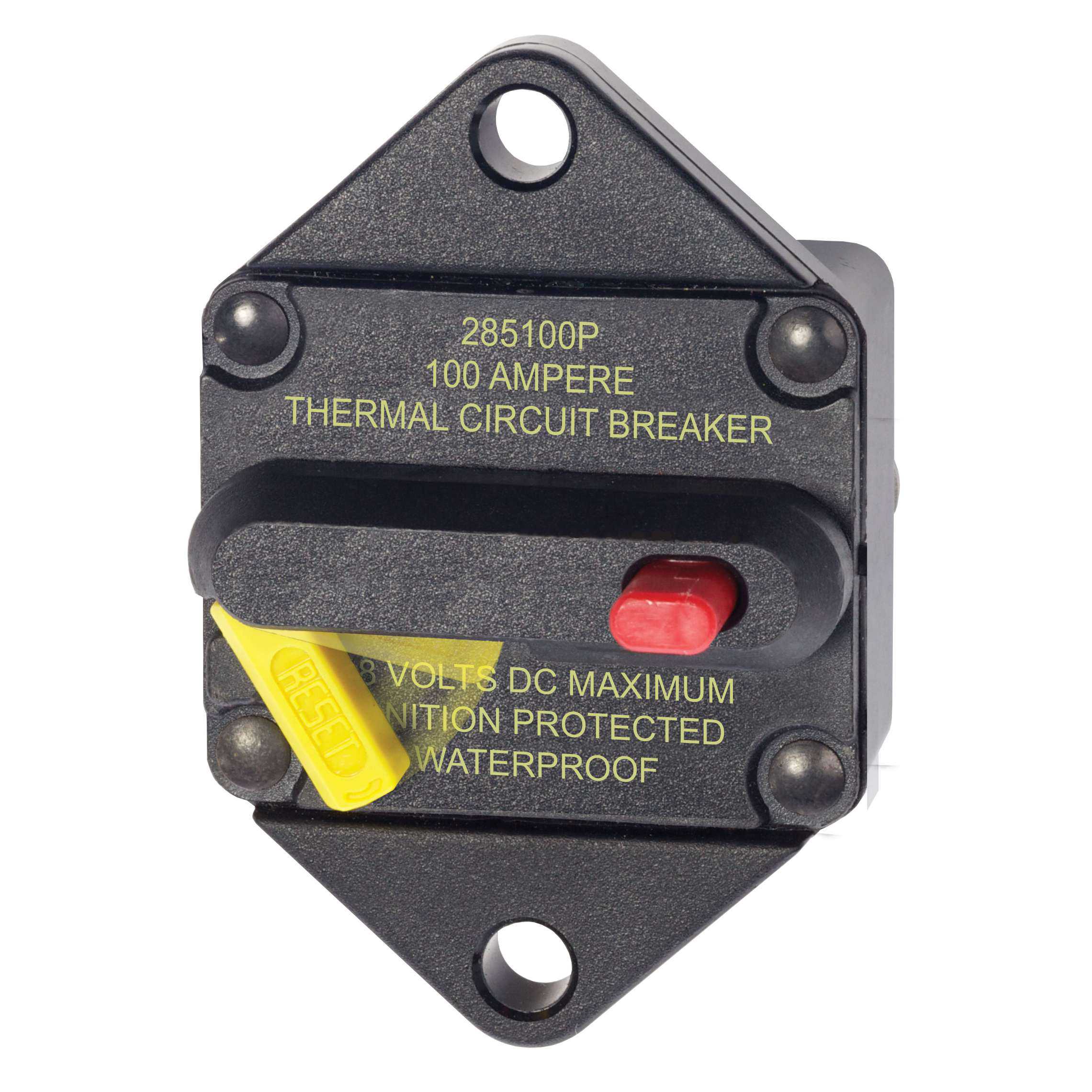

Blue Sea 7087 285-Series Circuit Breaker Panel Mount 100A Switch Marine
By Blue Sea
Part #7087
Warranty5 Year
Made InMexico
Shipping Wt0.5 lbs

$43.38 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems 285-Series Circuit Breaker - Panel Mount 100A. Part number 7087.

Features
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

Specifications
  • Amperage: 100A
  • Maximum Voltage: 48V DC
  • Mounting: Panel Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
Share this product:
PinterestTwitterFacebook

$43.38 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.26 lbs
ManufacturerBlue Sea Systems
Manufacturer #7087
ModelBlue Sea 7087
Part #7087
Product TypeCircuit Breaker
Shipping Dims8" x 4" x 4"
Shipping Wt0.5 lbs
UPC632085070878
Warranty5 Year
