Blue Sea 2142 Push Button Reset Circuit Breaker Medium Duty 50A Marine

By Blue Sea

Share this product:
PinterestTwitterFacebook

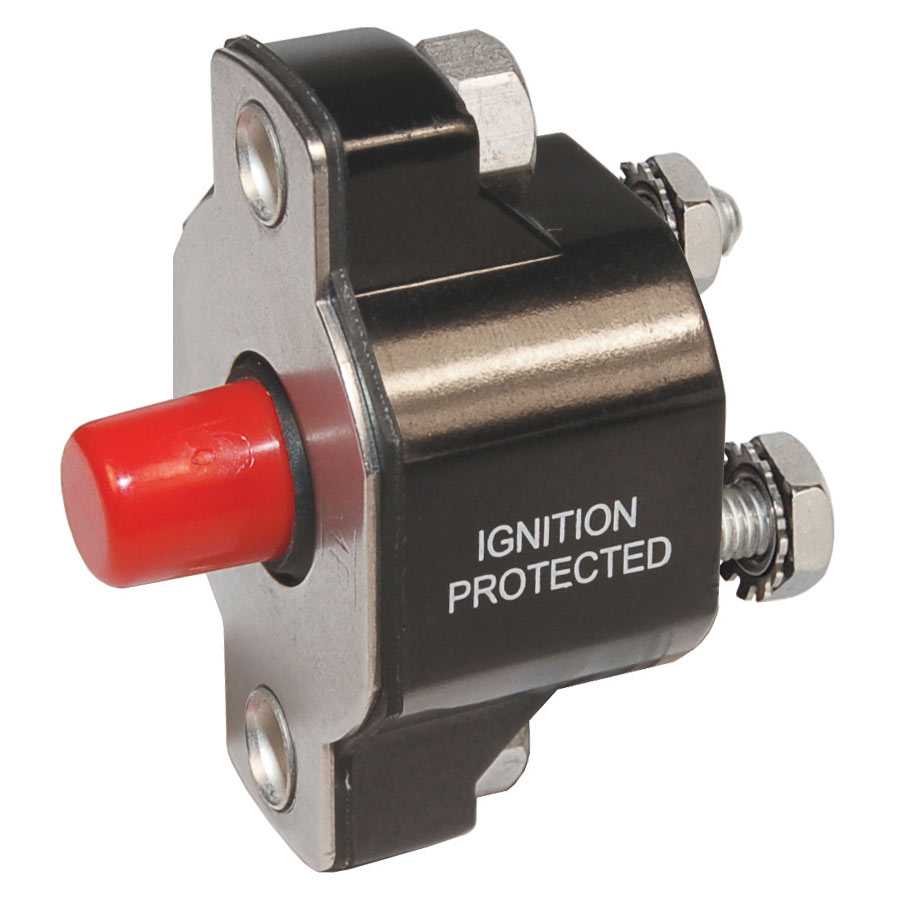

New Blue Sea Systems medium duty push button reset only circuit breaker. Part number 2142.

Features

• Weatherproof
• Can be used as Main, Branch, or 24 hour circuit protection
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

Specifications

• Amperage: 50A
• Maximum Voltage: 120V AC
• 32V DC
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Stud Torque: 30 in-lb (3.39 Nm)
• Interrupt Capacity: 3000A @ 120V AC, 5000A @ 32V DC
• Minimum Operating Temperature: -54 degrees C
• Maximum Operating Temperature: 74 degrees C
• Mounting Screw Thread: #8-32
• Terminal Stud: #10-32 Stainless Steel
• Weight: 0.16lb (0.07 kg)
