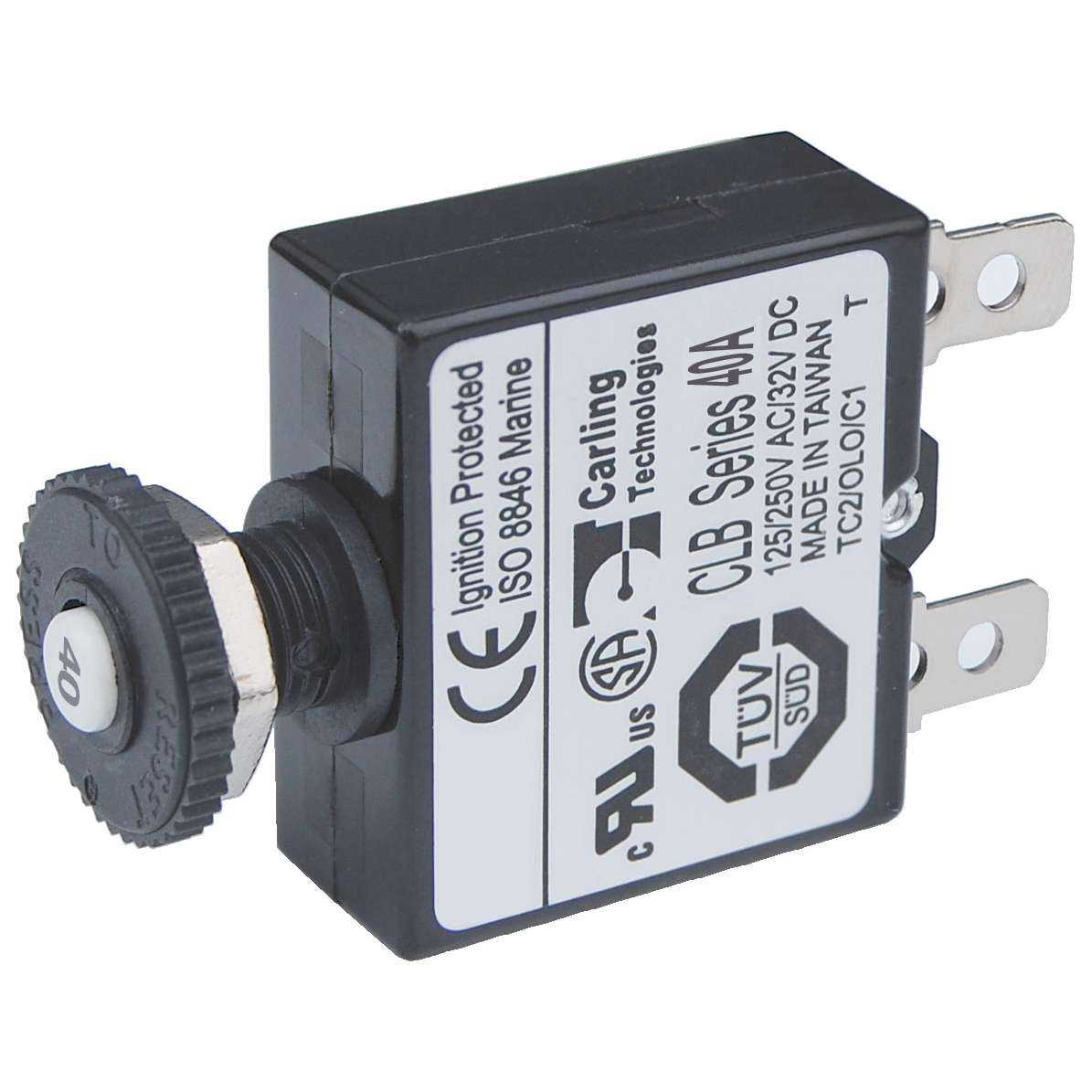

Blue Sea 7061 Push Button Reset Only Quick Connect Circuit Breaker 40A Marine
By Blue Sea
Part #7061
Warranty5 Year
Made InTaiwan
Shipping Wt0.3 lbs

$10.56 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker - 40A. Part number 7061.

Features
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held ON during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications
  • Amperage: 40A
  • Maximum Voltage: 32V DC
  • Mounting: Panel Mount 3/8-27 UNS
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Type: 1/4 Male Quick Connect
  • Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
  • Minimum Operating Temperature: -10 degree C
  • Maximum Operating Temperature: 60 degree C
  • Screw Terminal Torque: 6 in-lb (0.68 Nm)
  • Weight: 0.06lb (0.03 kg)
Share this product:
PinterestTwitterFacebook

$10.56 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InTaiwan
Item Weight0.1 lbs
ManufacturerBlue Sea Systems
Manufacturer #7061
ModelBlue Sea 7061
Part #7061
Product TypeCircuit Breaker
Shipping Dims8" x 5" x 3"
Shipping Wt0.3 lbs
UPC632085070618
Warranty5 Year
