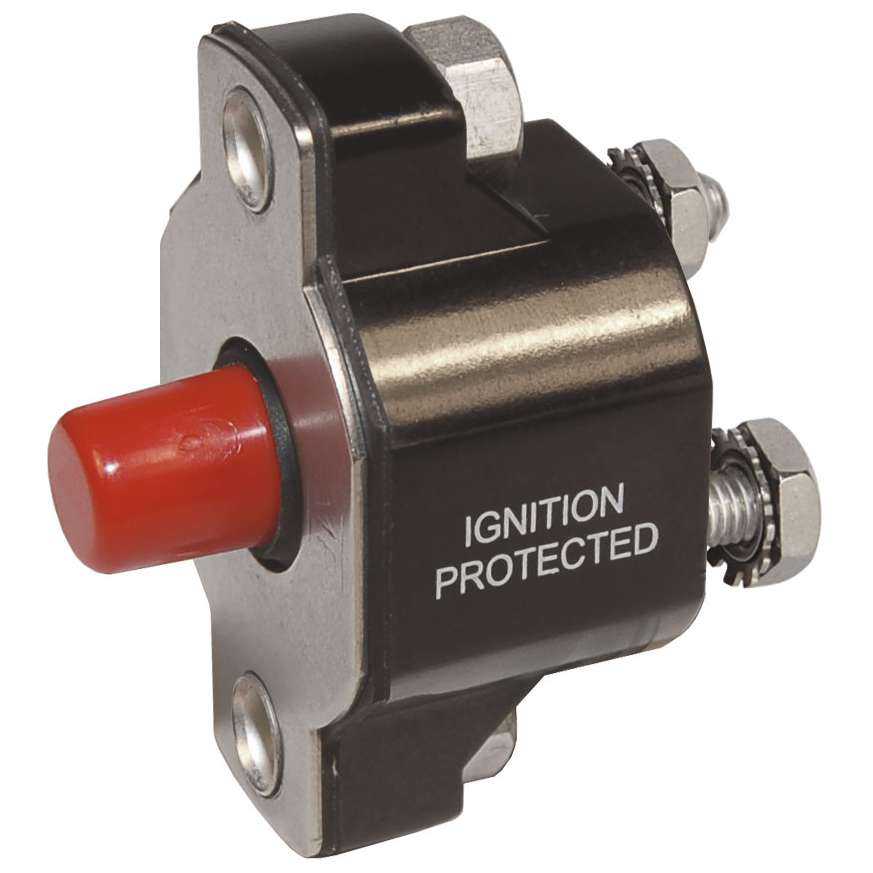

Blue Sea 2140 Medium Duty Push Button Reset Only Circuit Breaker 30A
By Blue Sea
Part #2140
Warranty5 Year
Shipping Wt0.3 lbs

$43.38 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems Medium Duty Push Button Reset Only Circuit Breaker - 30A. Part number 2140.

Features
  • Weatherproof
  • Can be used as Main, Branch, or 24 hour circuit protection
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held ON during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

Specifications
  • Amperage: 30A
  • Maximum Voltage: 120V AC, 32V DC
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Stud Torque: 30 in-lb (3.39 Nm)
  • Interrupt Capacity: 3000A @ 120V AC, 5000A @ 32V DC
  • Minimum Operating Temperature: -54 degree C
  • Maximum Operating Temperature: 74 degree C
  • Mounting Screw Thread: #8-32
  • Terminal Stud: #10-32 Stainless Steel
  • Weight: 0.16lb (0.07 kg)
Share this product:
PinterestTwitterFacebook

$43.38 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InChina
Item Weight0.17 lbs
ManufacturerBlue Sea Systems
Manufacturer #2140
ModelBlue Sea 2140
Part #2140
Product TypePush Button Circuit Breaker
Shipping Dims10" x 6" x 2"
Shipping Wt0.3 lbs
UPC632085021405
Warranty5 Year
