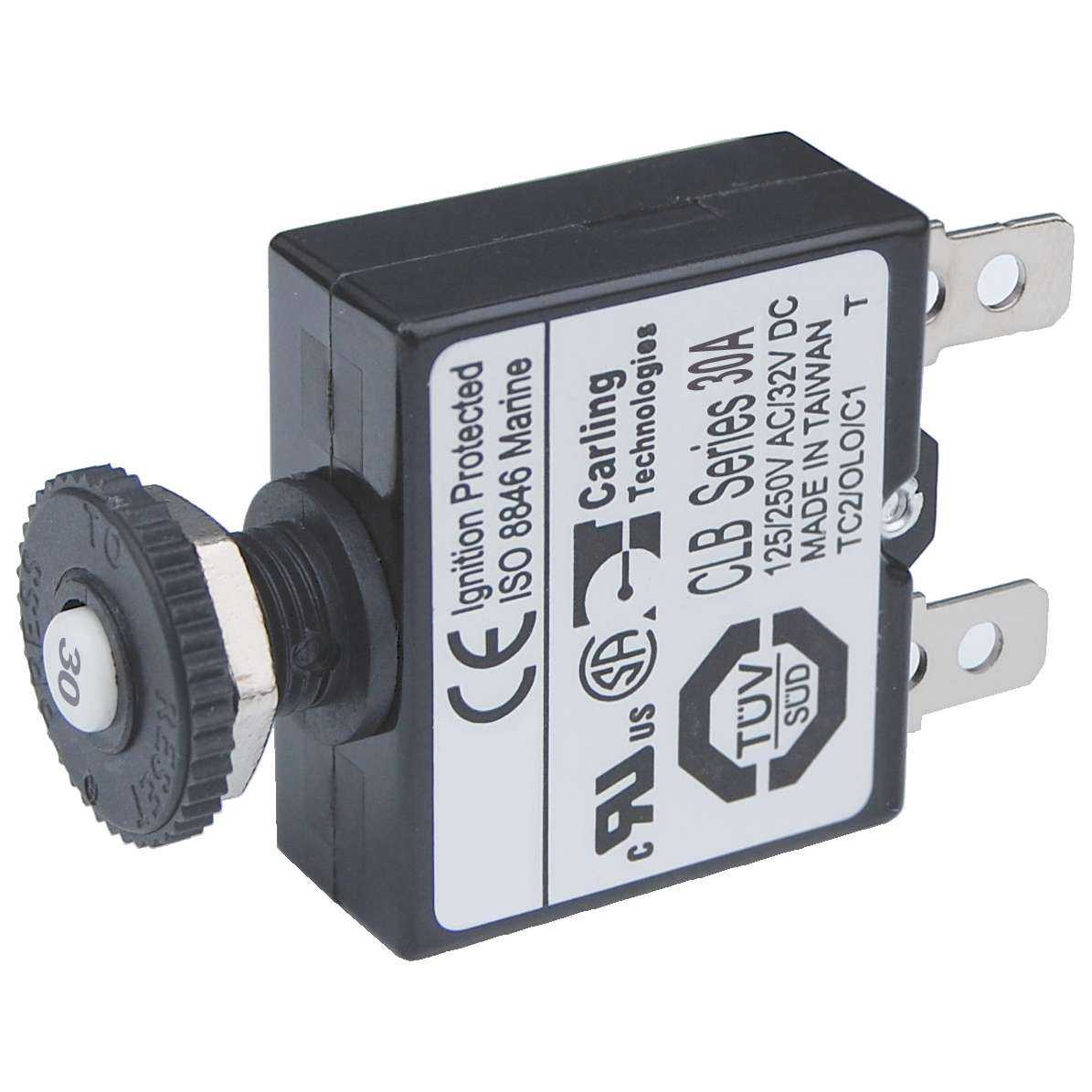

Blue Sea 7059 Push Button Reset Only Quick Connect Circuit Breaker 30 Amps Boat
By Blue Sea
PART #7059
WARRANTYLimited Lifetime
MADE INTaiwan
SHIPPING WT0.3 lbs
SHIPPING DIMS8" x 5" x 3"
$9.15 USD
Free Shipping to the Contiguous 48 US States
Out of stock
Share this product:
PinterestTwitterFacebook
Product Description
New Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps. Part number 7059.

Features
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held ON during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications
  • Amperage: 30A
  • Maximum Voltage: 32V DC
  • Mounting: Panel Mount 3/8-27 UNS
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Type: 1/4 Male Quick Connect
  • Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
  • Minimum Operating Temperature: -10 degree C
  • Maximum Operating Temperature: 60 degree C
  • Screw Terminal Torque: 6 in-lb (0.68 Nm)
  • Weight: 0.06lb (0.03 kg)
Details
BrandBlue Sea
Item Weight0.1 lbs
Made InTaiwan
ManufacturerBlue Sea Systems
Manufacturer #7059
ModelBlue Sea 7059
Part Number7059
Shipping Dims8" x 5" x 3"
Shipping Weight0.3 lbs
TypeCircuit Breaker
UPC632085070595
WarrantyLimited Lifetime
