Blue Sea 5052 ST CLB Circuit Breaker Block 6 Position with Negative Bus Marine
By Blue Sea
Part #5052
Warranty5 Year
Made InMexico
Shipping Wt1 lbs

$56.18 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Description

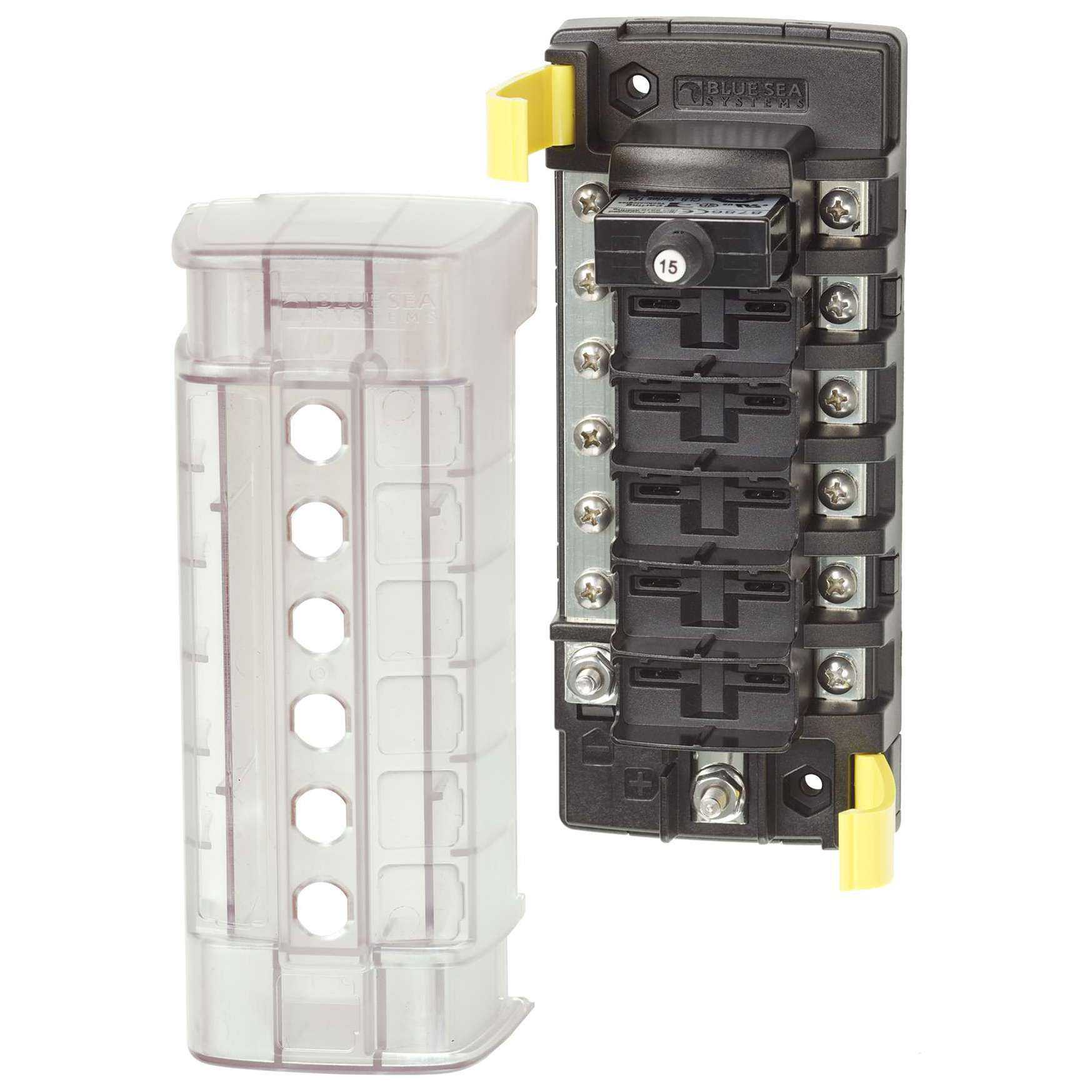

New Blue Sea Systems ST CLB Circuit Breaker Block - 6 Position with Negative Bus. Part number 5052.

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover

Specifications
  • Circuits: 6
  • Maximum Amperage: 100A (per block), 32A (per circuit)
  • Maximum Voltage: 32V DC
  • Mounting: #8 Screw (M4) or #8 Nut
  • Negative Bus: Yes
  • Source: Common Source
  • Minimum Operating Temperature: -10 degree C
  • Maximum Operating Temperature: 60 degree C
  • Mounting Centers: 5.63in (143 mm)
  • Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
  • Height: 6.69in (169.93 mm)
  • Weight: 0.75lb (0.34 kg)
Share this product:
PinterestTwitterFacebook

$56.18 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight0.8 lbs
ManufacturerBlue Sea Systems
Manufacturer #5052
ModelBlue Sea 5052
Part #5052
Product TypeCircuit Breaker
Shipping Dims5" x 2" x 2"
Shipping Wt1 lbs
UPC632085050528
Warranty5 Year
