Blue Sea 5183 MRBF Terminal Fuse 100 Amp Marine 12V 24V 58V DC Boat Circuit 100A
By Blue Sea
PART #5183
WARRANTYLimited Lifetime
MADE INTaiwan
SHIPPING WT0.2 lbs
SHIPPING DIMS7" x 4" x 3"
$14.56
Free Shipping to the Contiguous 48 US States
Out of stock
Share this product:
PinterestTwitterFacebook
Product Description

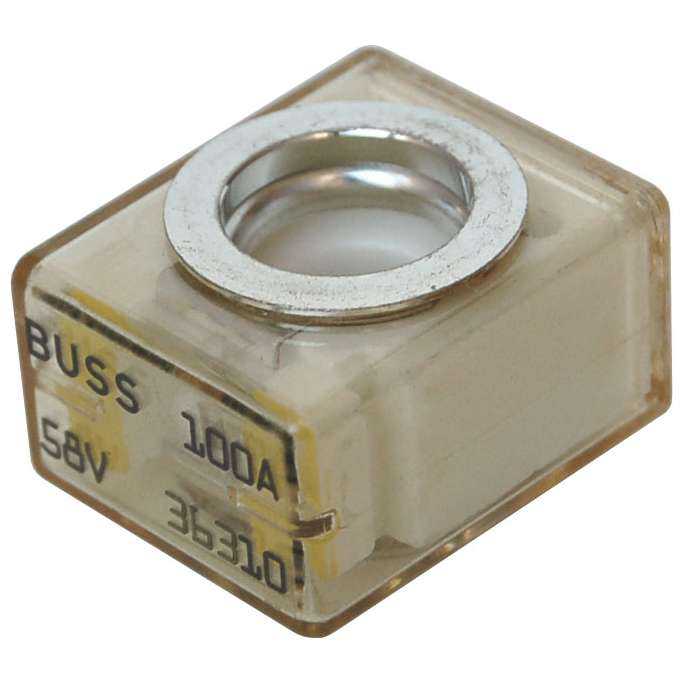

New Blue Sea Systems MRBF Terminal Fuse - 100A. Part number 5183. Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151.

Features
  • Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151-do not mount the fuse directly to the battery terminal
  • Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Clear window-visual indication of blown condition
  • Color coded for each amperage

Specifications
  • Amperage: 100A
  • Maximum Voltage: 58V DC
  • Interrupt Capacity: 10000A @ 14V DC, 5000A @ 32V DC, 2000A @ 58V DC
  • Weight: 0.06lb (0.03 kg)
Details
BrandBlue Sea
Item Weight0.1 lbs
Made InTaiwan
ManufacturerBlue Sea Systems
Manufacturer #5183
ModelBlue Sea 5183
Part Number5183
Shipping Dims7" x 4" x 3"
Shipping Weight0.2 lbs
Size100A
TypeMRBF Fuse
UPC632085051839
WarrantyLimited Lifetime
