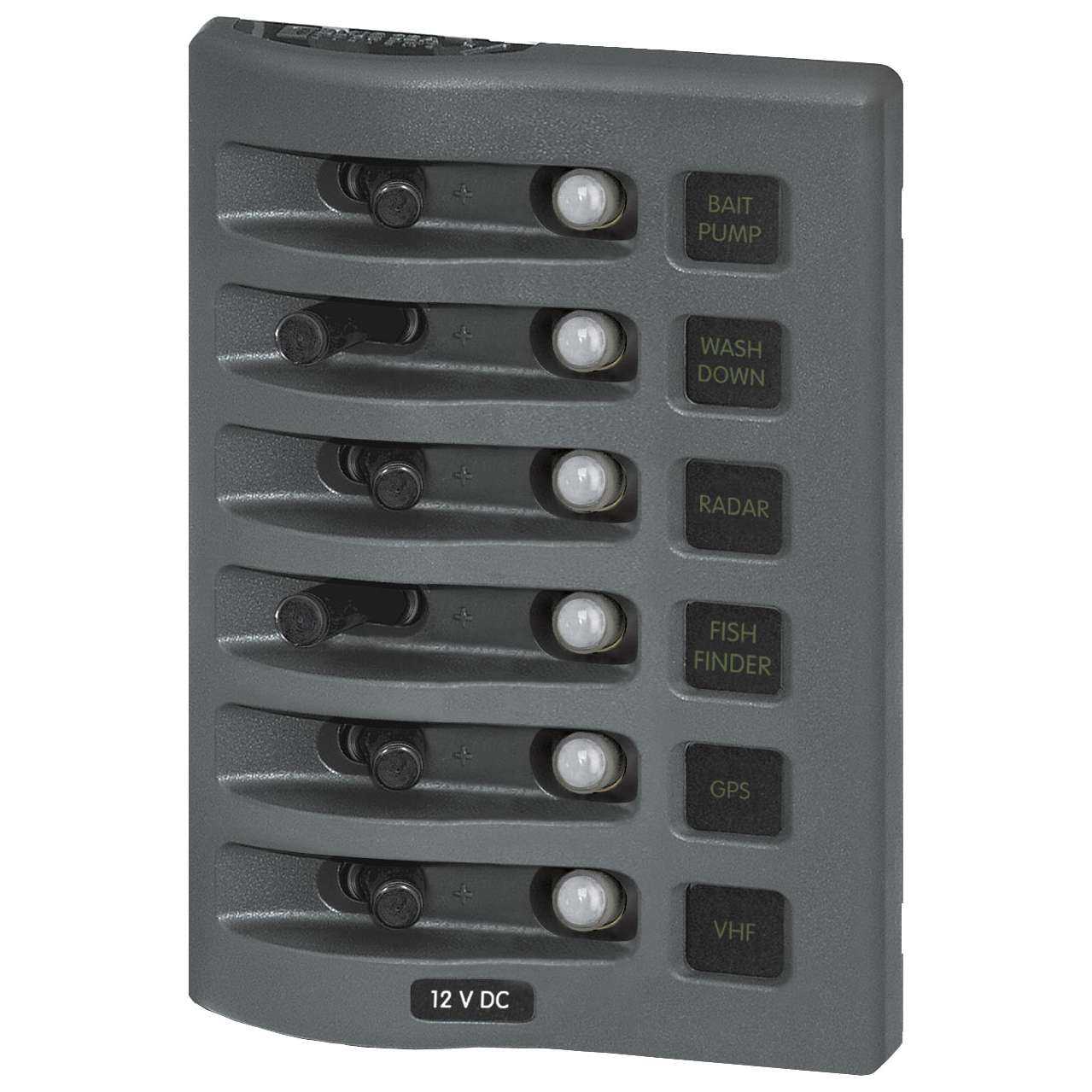

New Blue Sea Systems WeatherDeck 12/24 volt DC waterproof 6-position circuit breaker panel. Part number 4376. Uses CLB circuit breakers and includes backlighting.

Features

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Available in 4 and 6 circuit models
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12V DC, 24V DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12V DC (per circuit), 9A @ 24V DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12 or 24V DC
• Material: Reinforced Polycarbonate
• Height: 6.00in (152.4 mm)
• Width: 4.25in (107.95 mm)
• Depth: 3.50in (88.9 mm)
• Weight: 1.35lb (0.61 kg)
