Blue Sea 2723 DualBus Plus 150A BusBar 5/16" Stud AC DC Marine Boat
By Blue Sea
By Blue Sea
| Part # | 2723 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 2 lbs |
$33.00 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

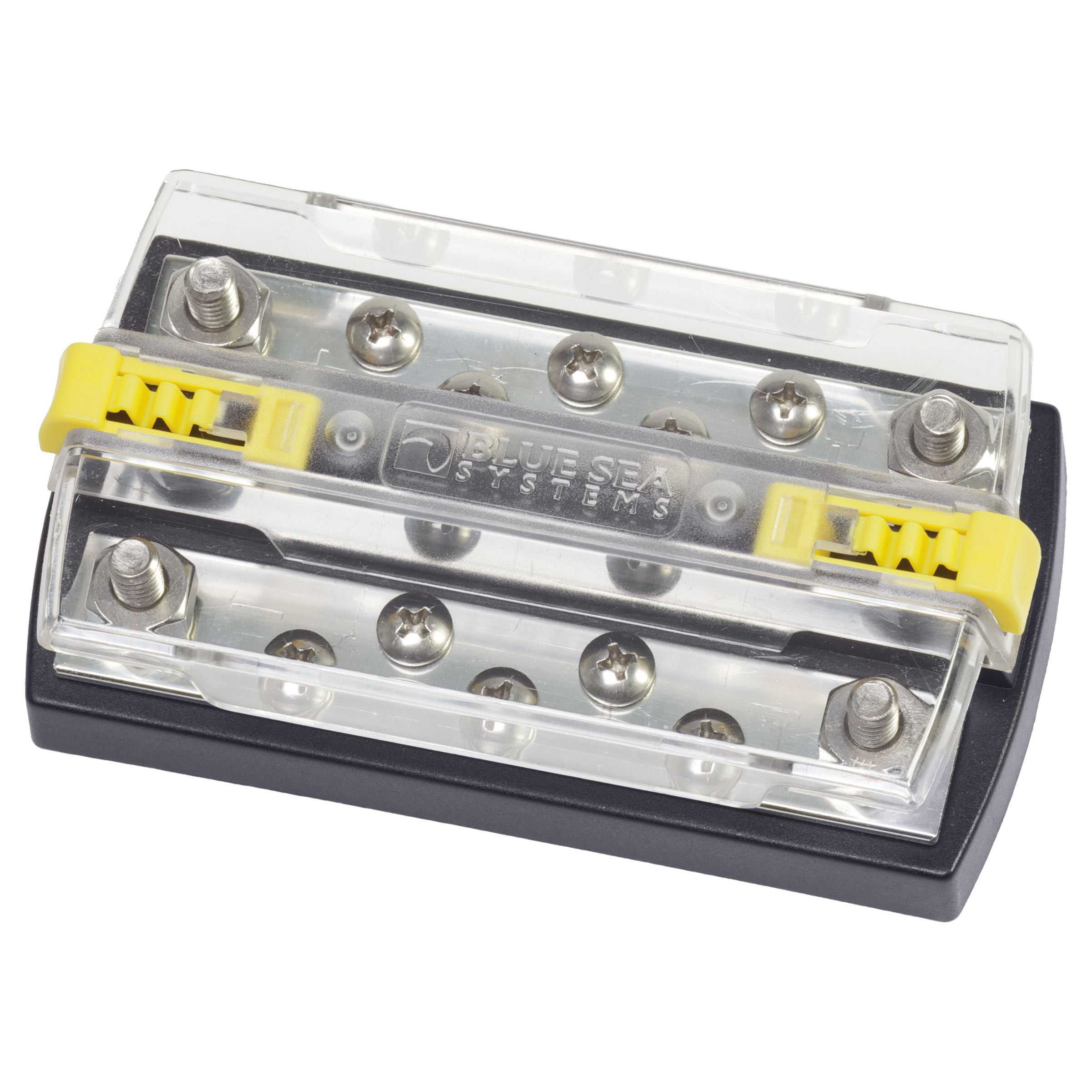

New Blue Sea Systems DualBus Plus 150A BusBar with 5/16"-18 studs, 5 gang. Part number 2723.
Features
Specifications
Features
- Combines negative and positive buses on one block
- Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
Specifications
- Maximum Voltage: 300V AC, 48V DC
- Number of Screw Terminals: 5 per bus
- Number of Terminal Studs: 2 per bus
- Terminal Type: #10-32 Screw, 5/16" Stud
- Continuous Rating: 130A AC, 150A DC
- Base Material: Reinforced Polycarbonate
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
- Cover Material: Clear Polycarbonate
- Mounting Screw: #10 (M5)
- Weight: 0.61lb (0.28 kg)
$33.00 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | Mexico |
| Item Weight | 0.7 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2723 |
| Model | Blue Sea 2723 |
| Part # | 2723 |
| Product Type | DualBus Plus 150A BusBar |
| Shipping Dims | 8" x 4" x 3" |
| Shipping Wt | 2 lbs |
| UPC | 632085027230 |
| Warranty | 5 Year |
