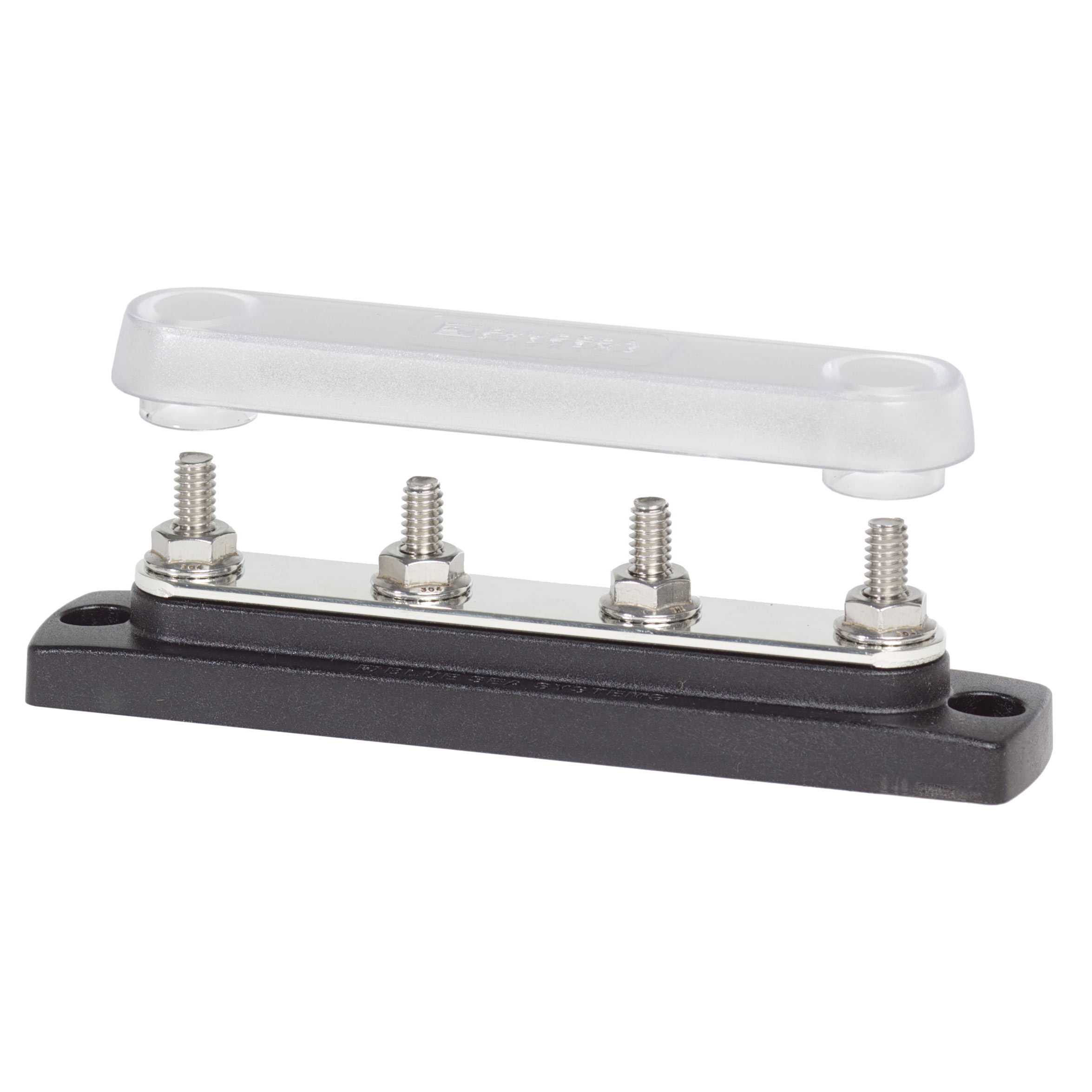

Blue Sea 2307 BusBar w/Cover 150A DC (130A AC) Four 1/4" Studs Marine
By Blue Sea
Part #2307
Warranty5 Year
Made InMexico
Shipping Wt0.6 lbs

$28.61 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems common 150A DC (130A AC) BusBar with four 1/4"-20 studs and cover. Part number 2307.

Features
  • The industry standard busbar for positive distribution
  • The industry standard busbar for the collection of negative or AC ground circuits

Specifications
  • Maximum Voltage: 300V AC
  • 48V DC
  • Number of Terminal Studs: 4
  • Terminal Type: 1/4" Stud
  • Continuous Rating: 130A AC, 150A DC
  • Base Material: Reinforced Polycarbonate
  • Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
  • Cover Material: Clear Polycarbonate
  • Weight: 0.39lb (0.18 kg)
Share this product:
PinterestTwitterFacebook

$28.61 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InMexico
Item Weight0.4 lbs
ManufacturerBlue Sea Systems
Manufacturer #2307
ModelBlue Sea 2307
Part #2307
Product Type150A DC (130A AC) BusBar with Cover
Shipping Dims9" x 3" x 2"
Shipping Wt0.6 lbs
UPC632085023072
Warranty5 Year
