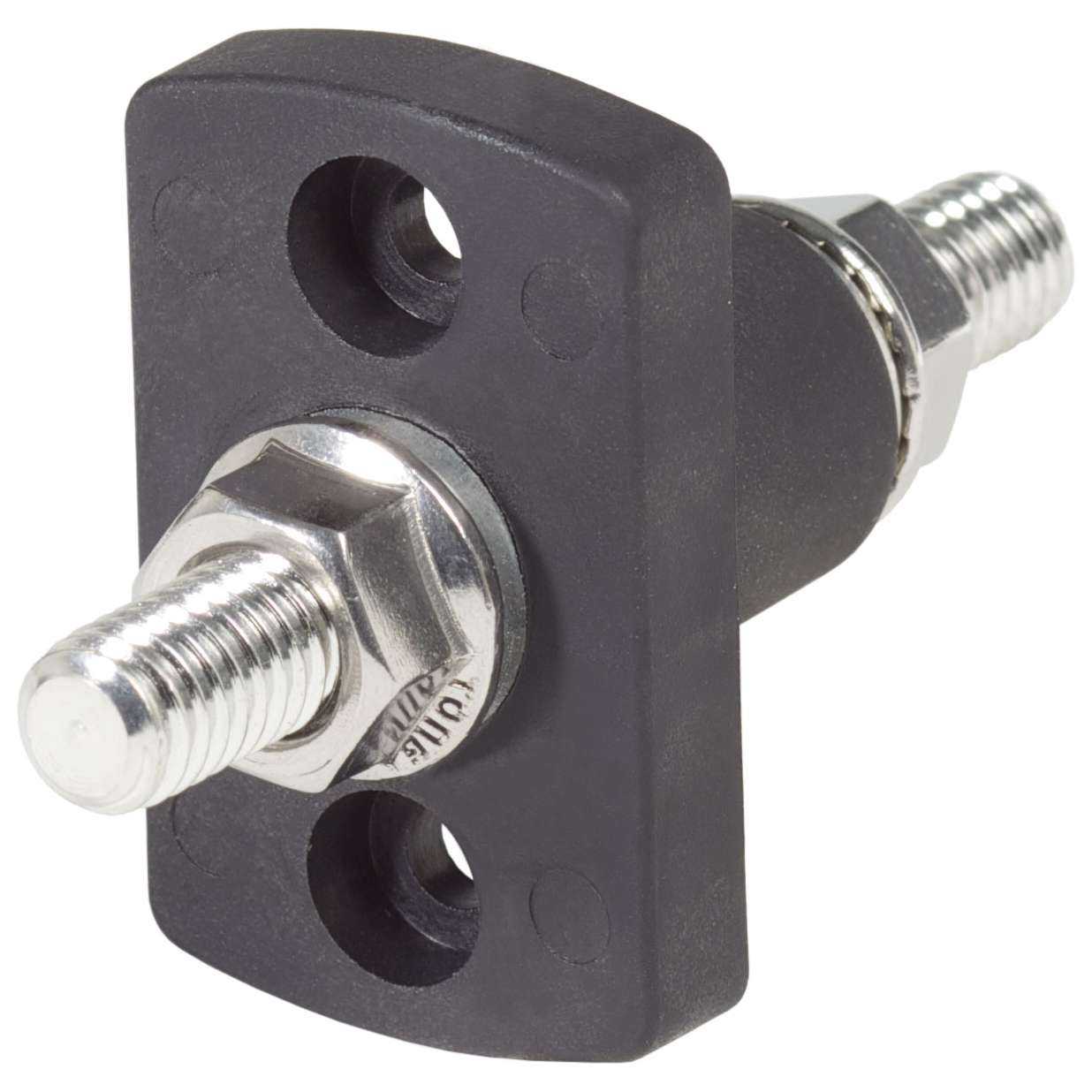

Blue Sea 2203 Terminal Feed Through Connector 3/8"-16 Studs Black
By Blue Sea
Part #2203
Warranty5 Year
Made InTaiwan
Shipping Wt0.5 lbs

$25.71 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock
Pay in 4 interest-free payments with

Product Description

New Blue Sea Systems Terminal Feed Through Connector - 3/8"-16 Studs (Black). Part number 2203. Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.

Features
  • Perfect for passing high current cables through hulls, decks and bulkheads
  • Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
  • Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
  • Rated IP66 - withstands water from heavy seas

Specifications
  • Amperage: 250A
  • Color: Black
  • Maximum Voltage: 48V DC
  • Stud Size: 3/8"-16
  • Base Material: Reinforced Thermoplastic
  • Recommended Torque: 100 in-lb (11.3 Nm)
  • Stud Material: Tin-Plated Copper Alloy
  • Weight: 0.30lb (0.14 kg)
Share this product:
PinterestTwitterFacebook

$25.71 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
13 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
ColorBlack
Made InTaiwan
Item Weight0.3 lbs
ManufacturerBlue Sea Systems
Manufacturer #2203
ModelBlue Sea 2203
Part #2203
Product TypeTerminal Feed-Through
Shipping Dims9" x 3" x 2"
Shipping Wt0.5 lbs
UPC632085022037
Warranty5 Year
