Blue Sea 2202 Terminal Feed Through Connector 5/16"-18 Studs Red
By Blue Sea
By Blue Sea
| Part # | 2202 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.5 lbs |
$24.09 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

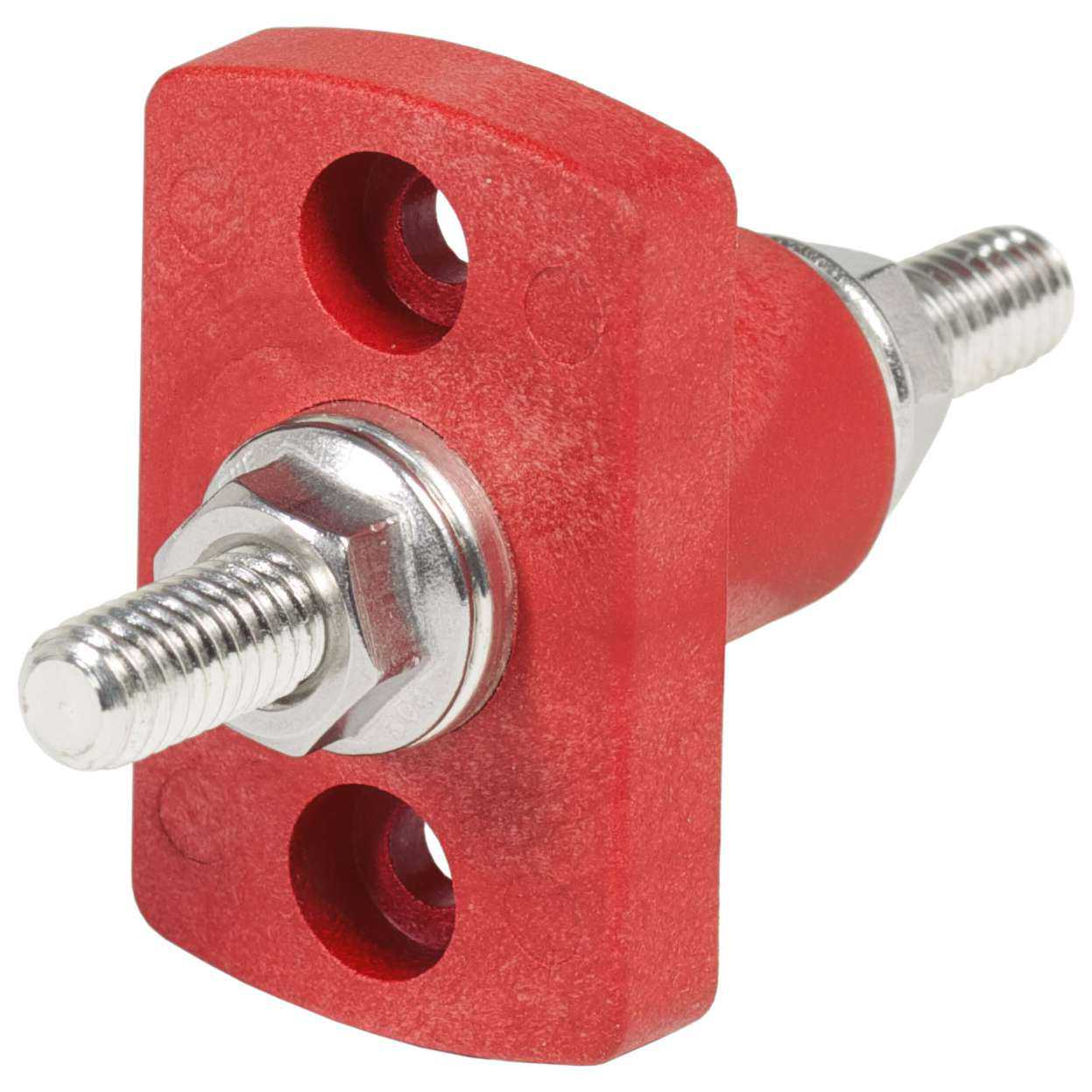

New Blue Sea Systems Terminal Feed Through Connector - 5/16"-18 Studs (Red). Part number 2202. Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.
Features
Specifications
Features
- Perfect for passing high current cables through hulls, decks and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 - withstands water from heavy seas
Specifications
- Amperage: 250A
- Color: Red
- Maximum Voltage: 48V DC
- Stud Size: 5/16"-18
- Base Material: Reinforced Thermoplastic
- Stud Material: Tin-Plated Copper Alloy
- Weight: 0.30lb (0.14 kg)
$24.09 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
15 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Red |
| Made In | Taiwan |
| Item Weight | 0.3 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2202 |
| Model | Blue Sea 2202 |
| Part # | 2202 |
| Product Type | Terminal Feed-Through |
| Shipping Dims | 9" x 3" x 2" |
| Shipping Wt | 0.5 lbs |
| UPC | 632085022020 |
| Warranty | 5 Year |
