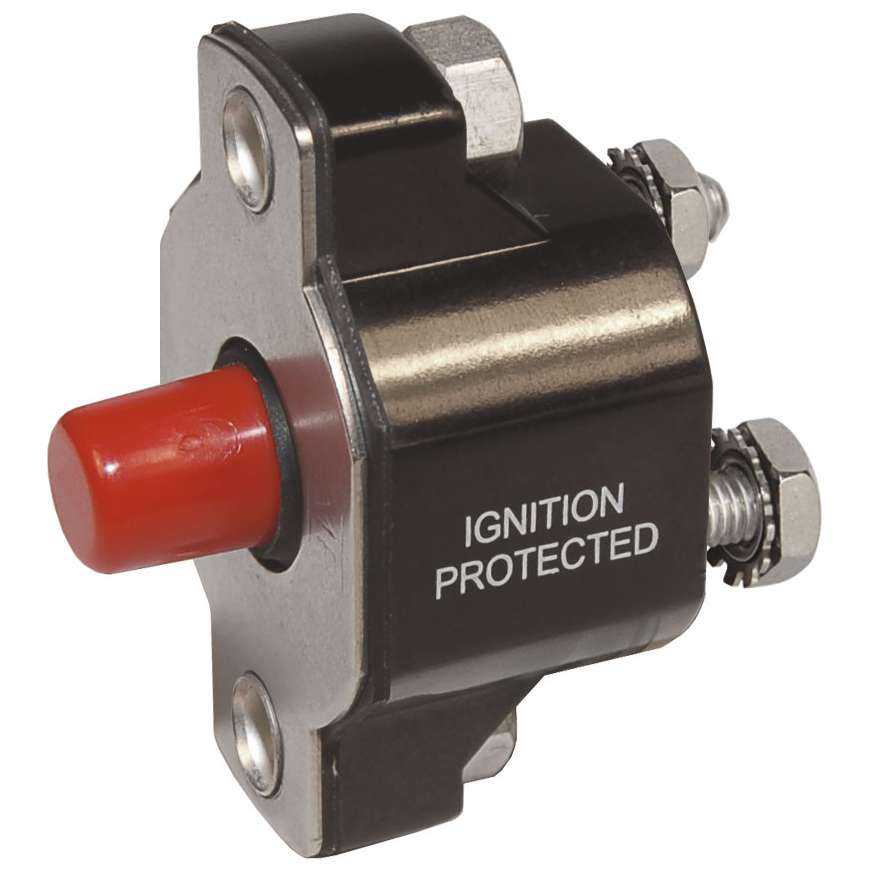

Blue Sea 2143 Medium Duty Push Button Reset Only Circuit Breaker 60A
By Blue Sea
By Blue Sea
| Part # | 2143 |
|---|---|
| Warranty | 5 Year |
| Shipping Wt | 0.4 lbs |
$41.70 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
8 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems Medium Duty Push Button Reset Only Circuit Breaker - 60A. Part number 2143.
Features
Specifications
Features
- Weatherproof
- Can be used as Main, Branch, or 24 hour circuit protection
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- Trip Free design cannot be held ON during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts
Specifications
- Amperage: 60A
- Maximum Voltage: 120V AC, 32V DC
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Stud Torque: 30 in-lb (3.39 Nm)
- Interrupt Capacity: 3000A @ 120V AC, 5000A @ 32V DC
- Minimum Operating Temperature: -54 degree C
- Maximum Operating Temperature: 74 degree C
- Mounting Screw Thread: #8-32
- Terminal Stud: #10-32 Stainless Steel
- Weight: 0.16lb (0.07 kg)
$41.70 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
8 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | China |
| Item Weight | 0.2 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 2143 |
| Model | Blue Sea 2143 |
| Part # | 2143 |
| Product Type | Push Button Circuit Breaker |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.4 lbs |
| UPC | 632085021436 |
| Warranty | 5 Year |
