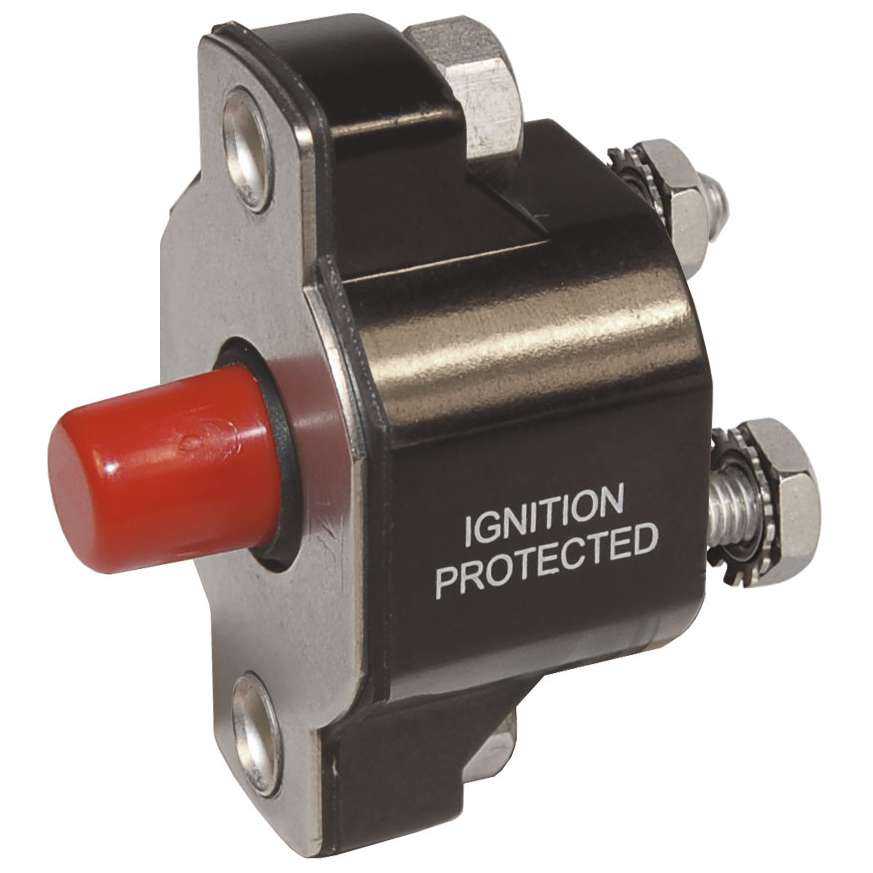

Blue Sea 2141 Medium Duty Push Button Circuit Breaker 40 Amp AC DC Marine Boat
By Blue Sea
PART #2141
WARRANTYLimited Lifetime
MADE INChina
SHIPPING WT0.4 lbs
SHIPPING DIMS6" x 3" x 2"
$38.51 USD
Free Shipping to the Contiguous 48 US States
(See all shipping options in cart)
36 in stock
Secured by:
Share this product:
PinterestTwitterFacebook
Product Description
New Blue Sea Systems Medium Duty Push Button Reset Only Circuit Breaker (40A). Part number 2141.

Features
  • Weatherproof
  • Can be used as Main, Branch, or 24 hour circuit protection
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

Specifications
  • Amperage: 40A
  • Maximum Voltage: 120V AC, 32V DC
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Stud Torque: 30 in-lb (3.39 Nm)
  • Interrupt Capacity: 3000A @ 120V AC, 5000A @ 32V DC
  • Minimum Operating Temperature: -54 degree C
  • Maximum Operating Temperature: 74 degree C
  • Mounting Screw Thread: #8-32
  • Terminal Stud: #10-32 Stainless Steel
  • Weight: 0.16lb (0.07 kg)
Details
BrandBlue Sea
ColorRed
Item Weight0.2 lbs
Made InChina
ManufacturerBlue Sea Systems
Manufacturer #2141
ModelBlue Sea 2141
Part Number2141
Shipping Dims6" x 3" x 2"
Shipping Weight0.4 lbs
TypePush Button Circuit Breaker
UPC632085021412
WarrantyLimited Lifetime
