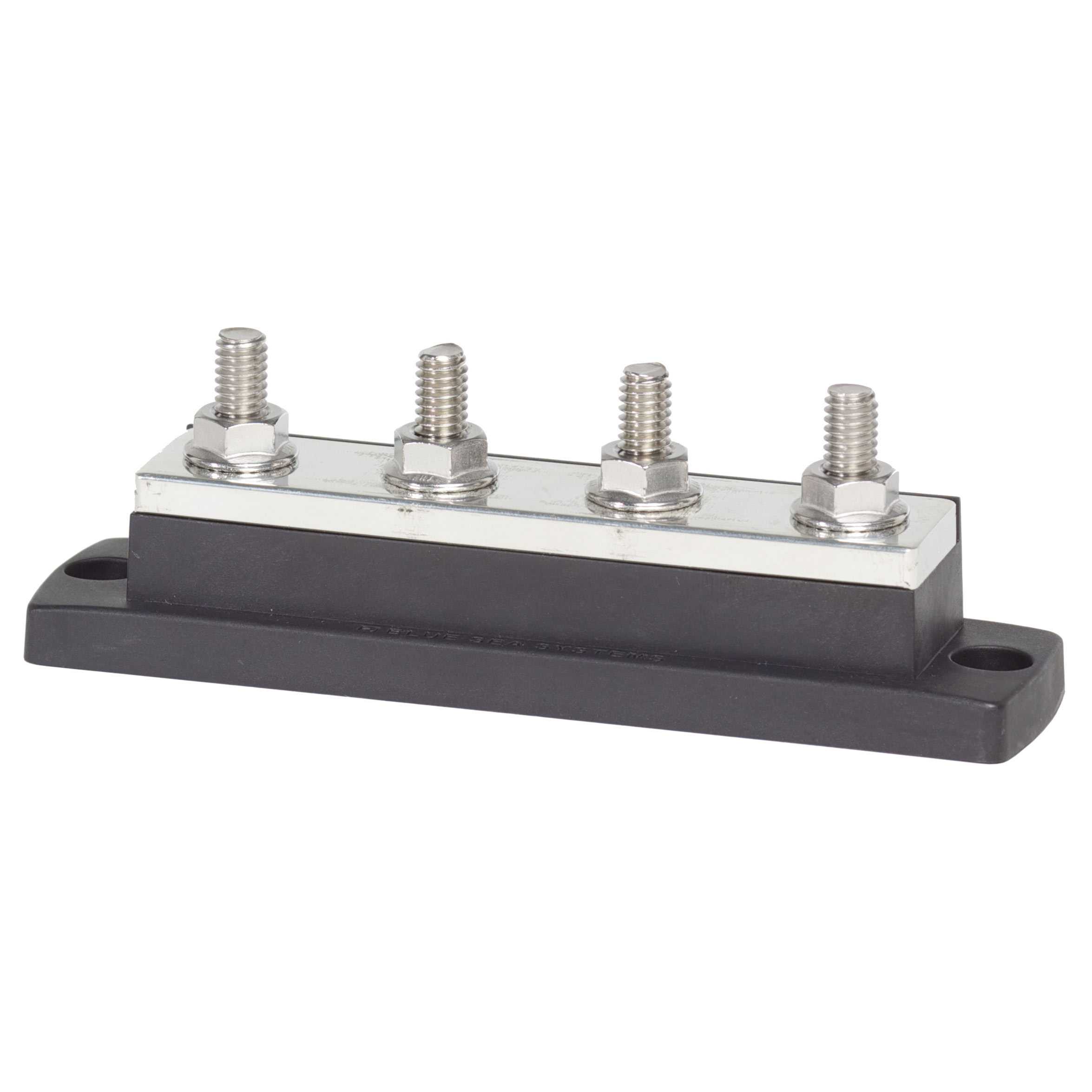

Blue Sea 2127 MaxiBus 250A BusBar 4 Studs 5/16″-18 Marine Boat
By Blue Sea
PART #2127
WARRANTYLimited Lifetime
MADE INMexico
SHIPPING WT1 lbs
SHIPPING DIMS9" x 3" x 3"
$35.80 USD
Free Shipping to the Contiguous 48 US States
(See all shipping options in cart)
41 in stock
Secured by:
Share this product:
PinterestTwitterFacebook
Product Description
New Blue Sea Systems MaxiBus 250A BusBar with four 5/16"-18 studs. Corrosion resistant, tin-plated copper. Part number 2127. Busbars are used to consolidate multiple wires or feed multiple circuits.

Features
  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications
  • Maximum Voltage: 300V AC
  • 48V DC
  • Number of Terminal Studs: 4
  • Terminal Type: 5/16"-18 Stud
  • Continuous Rating: 250A
  • Base Material: UL 94-V0
  • Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
  • Recommended Torque: 132 in-lb (14.91 Nm)
  • Weight: 0.80lb (0.36 kg)
Details
BrandBlue Sea
ColorBlack, Silver
Item Weight0.8 lbs
Made InMexico
ManufacturerBlue Sea Systems
Manufacturer #2127
ModelBlue Sea 2127
Part Number2127
Shipping Dims9" x 3" x 3"
Shipping Weight1 lbs
TypeMaxiBus 250A BusBar Four 5/16" Studs
UPC632085021276
WarrantyLimited Lifetime
